Removing and Installing/Replacing Seat Angle Adjuster on Left or Right Front Seat (Normal/Electric)

52 14 070 - Removing and installing/replacing seat angle adjuster on left or right front seat (normal/electric)





Necessary preliminary tasks:
- Remove front seat Front Seat, Normal, Electric
- Remove outer cover Removing and Installing/Replacing Outer Covers on Left or Right Front Seat (Sports/Electric)

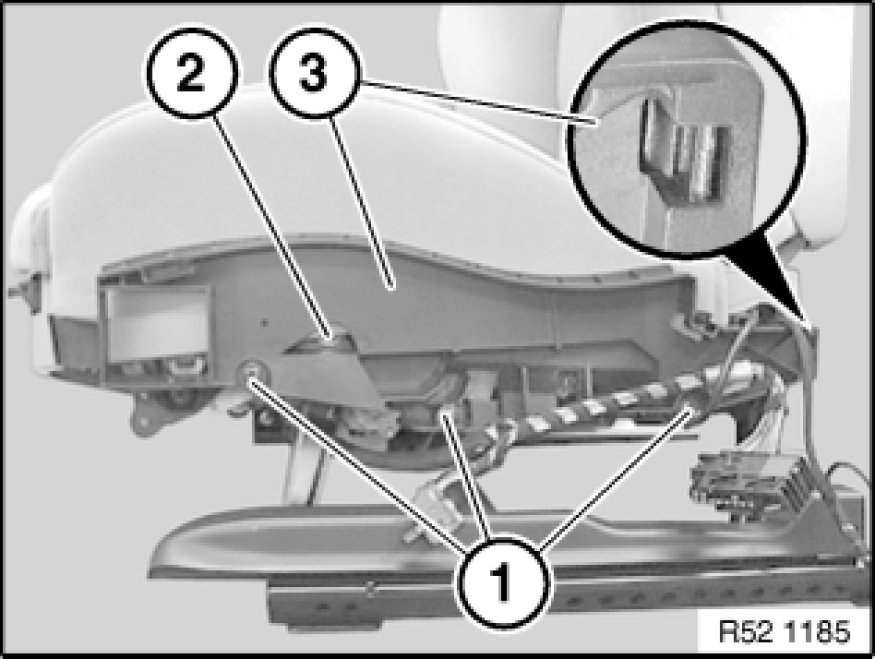

Release screws (1).
Release screw (2).
Unclip carrier (3) from seat mechanism at rear.

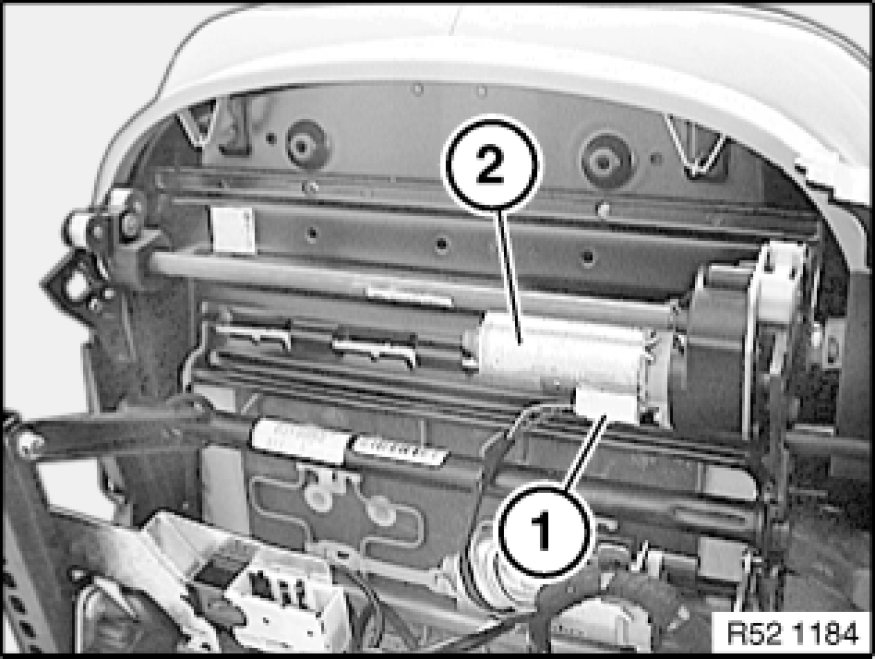

Unlock plug connection (1) on drive unit (2) and disconnect.





Release screws (1).

Installation:
Replace Taptite screws (1).
Tightening torque 52 10 16AZ [1][2]Seats.

Release screw (2).

Tightening torque 52 10 17AZ [1][2]Seats.
Remove seat angle adjuster (3).

Installation:
Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
