Removing And Installing/Replacing Storage Compartment In Luggage Compartment on Right

51 47 ... - Removing and installing/replacing storage compartment in luggage compartment on right





Necessary preliminary tasks:
- Remove flap in luggage compartment panel on right Removing and Installing/Replacing Flap In Luggage Compartment Trim, Left or Right
- Remove right luggage compartment wheel arch trim

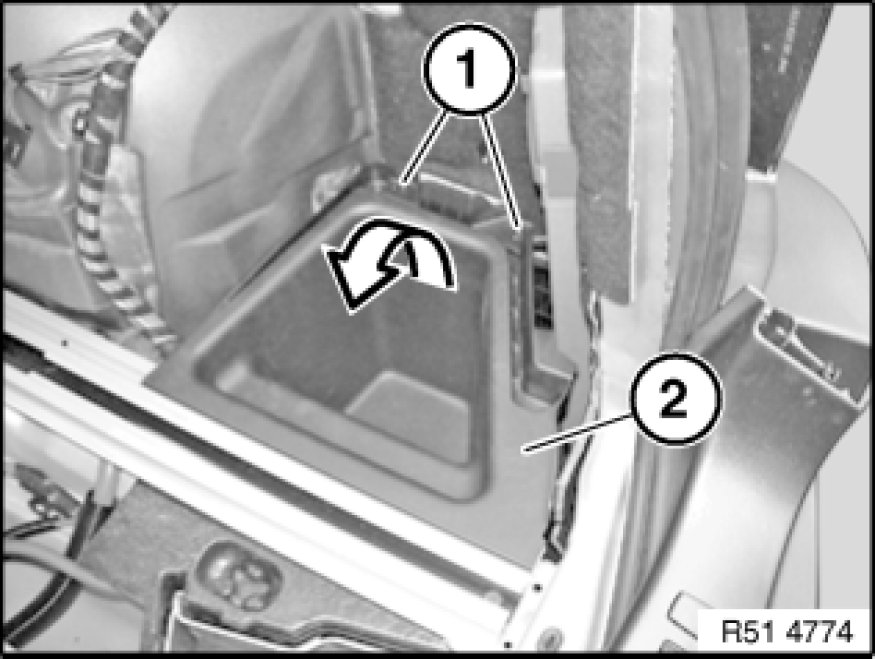

Release screws (1) and remove storage compartment (2) in direction of arrow.
