Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)

51 43 148 - Removing and installing or replacing trim on left or right door pillar (top)





Necessary preliminary tasks:
- Remove panel for door pillar (bottom) Removing and Installing/Replacing Trim for Left or Right Door Pillar (Bottom)





Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).
Tightening torque 72 11 1AZ [1][2]Seat Belt Systems.

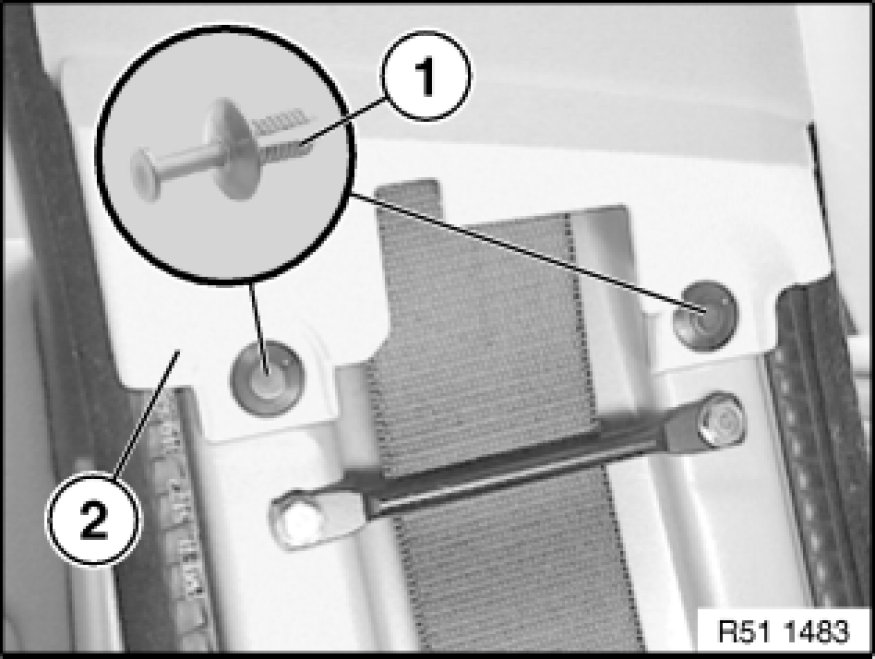

Release expansion rivets (1) on panel (2).

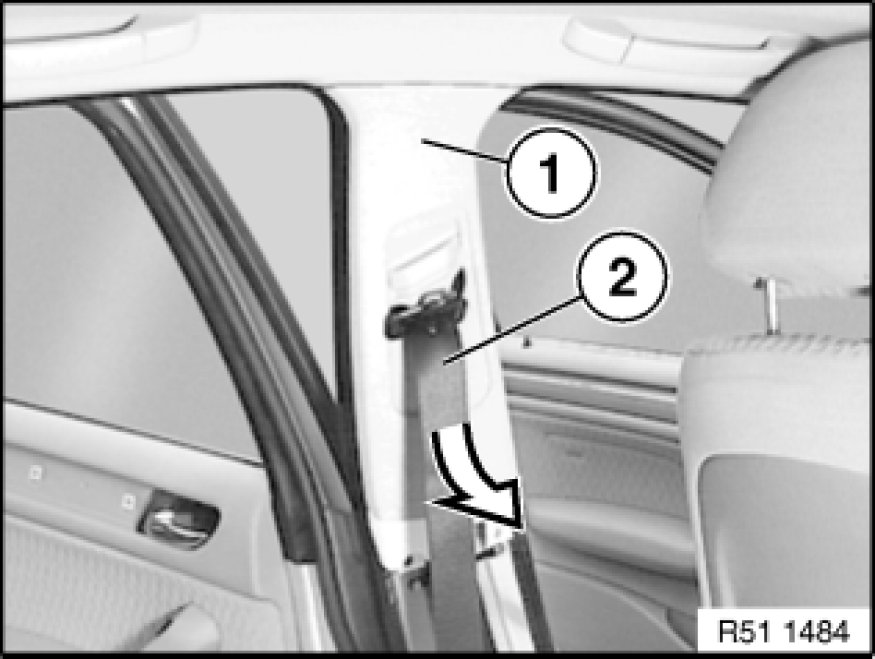

Pull off panel (1) towards bottom.
Feed out seatbelt strap (2).





Installation:

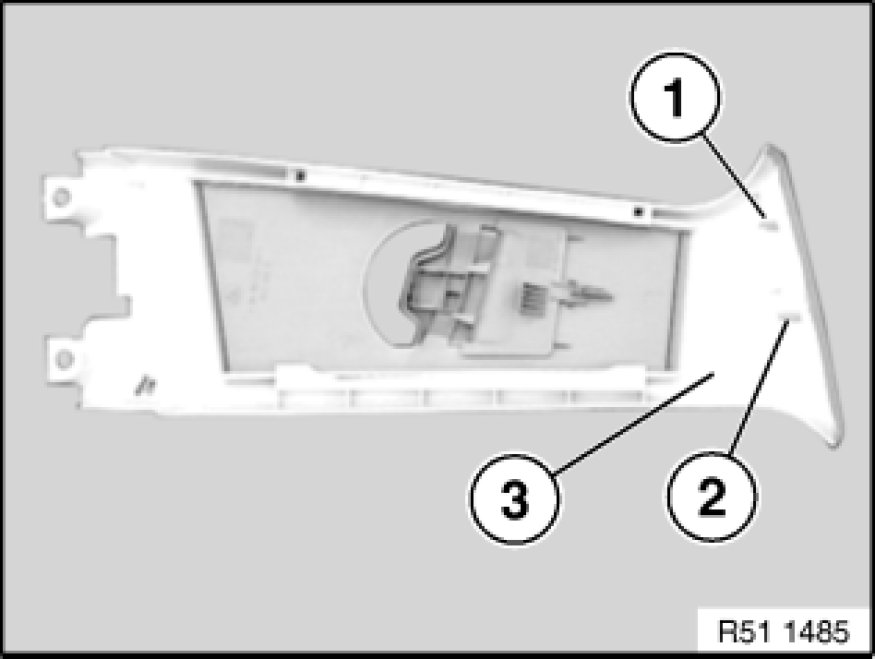

Locator (1) and guide (2) on trim (3) must not be damaged.
