Power Steering Fluid Cooler: Service and Repair

17 11 370 - Removing and installing/replacing cooling loop for power steering





Necessary preliminary tasks:
- Remove fan cowl with electric fan Service and Repair
- Draw off hydraulic fluid





Recycling:
Catch and dispose of hydraulic fluid.
Observe country-specific waste-disposal regulations.

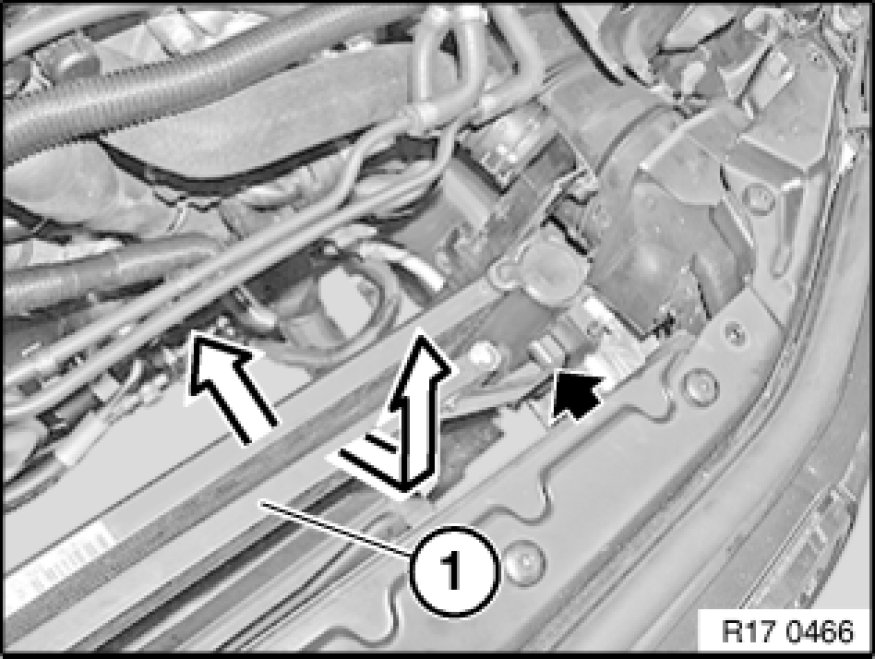

Unlock and disconnect left and right oil lines.
Release screw.

Important!
Risk of damage to connecting pipes.

Carefully press cooling coil on left towards front, then clip out on right and remove.

Installation:
Bleed power steering.
