Evaporative Emission Control Canister: Service and Repair

16 12 010 - Removing and installing/replacing carbon canister





Necessary preliminary tasks:
- Remove rear right wheel arch trim Service and Repair.

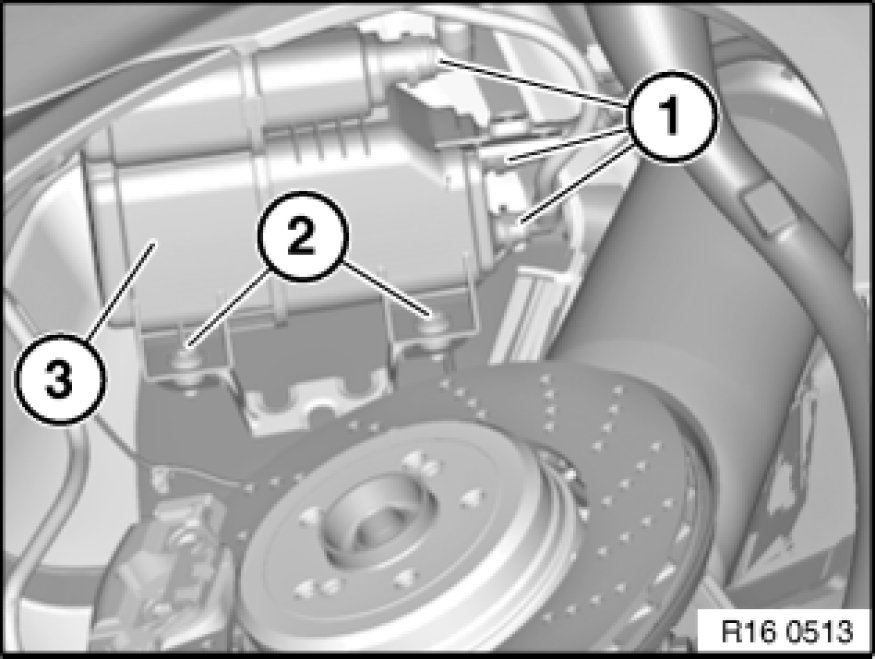

Unlock and detach lines (1) from carbon canister (3).
Release screws (2) and remove carbon canister (3).

Installation:
Tightening torque 16 13 2AZ 16 13 Tank Ventilation.
Make sure quick-release fasteners engage correctly.
