61 31 131 Removing and Installing/Replacing Left or Right Shift Paddle For Transmission (Twin Clutch Transmission)

61 31 131 - Removing and installing/replacing left or right shift paddle for transmission (twin clutch transmission) (M3)





Necessary preliminary tasks:
- Remove airbag unit 32 34 030 Removing and Installing/Replacing Airbag Unit

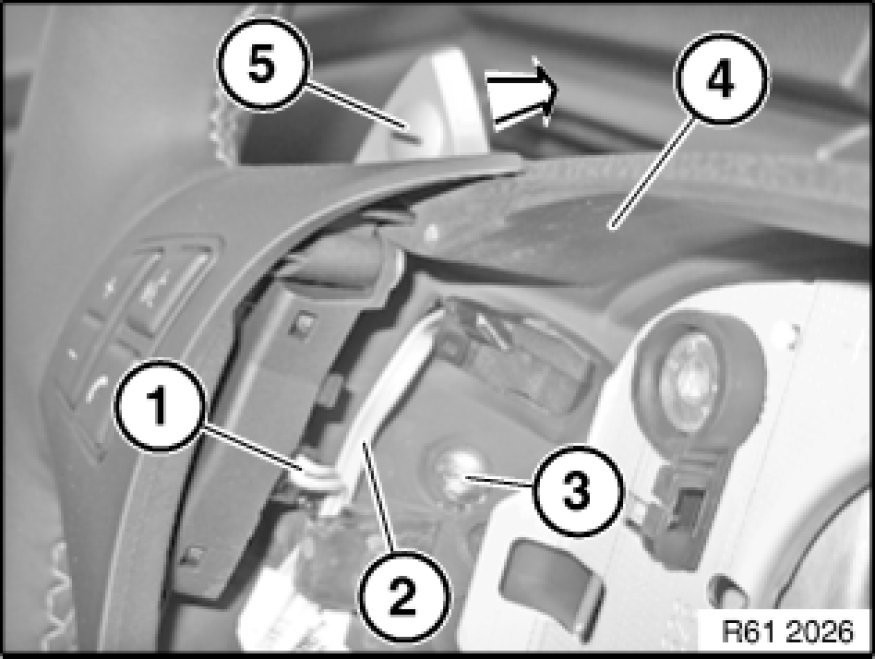

Disconnect plug connection (1).
Release screw (3).
Feed out wiring harness (2) and remove shift paddle for transmission (5) in direction of arrow from steering wheel (4).

Installation:
Make sure shift paddle for transmission (5) is correctly seated on steering wheel (4)
Make sure wiring harness (2) is laid correctly.
