28 00 001 Removing and Installing Twin-Clutch Gearbox (GS7D36SG)

28 00 101 - Installing replacement transmission (GS7D36SG)





Drain gear oil at oil drain plug.
Tightening torque: 28 00 3AZ 28 00 Transmission in General.

Important!
After completion of work, program transmission control unit.





Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations





Important!
- Before installing replacement transmission, always flush transmission fluid cooler together with lines.
- After completion of work, check transmission fluid level Service and Repair.
Replacement transmission is supplied filled with transmission fluid.
Use only the approved transmission fluid.
Failure to comply with this instruction will result in serious damage to the twin clutch transmission.





Necessary preliminary tasks:
- Remove twin clutch transmission 28 00 001 Removing and Installing Twin-Clutch Gearbox (GS7D36SG).





Note:

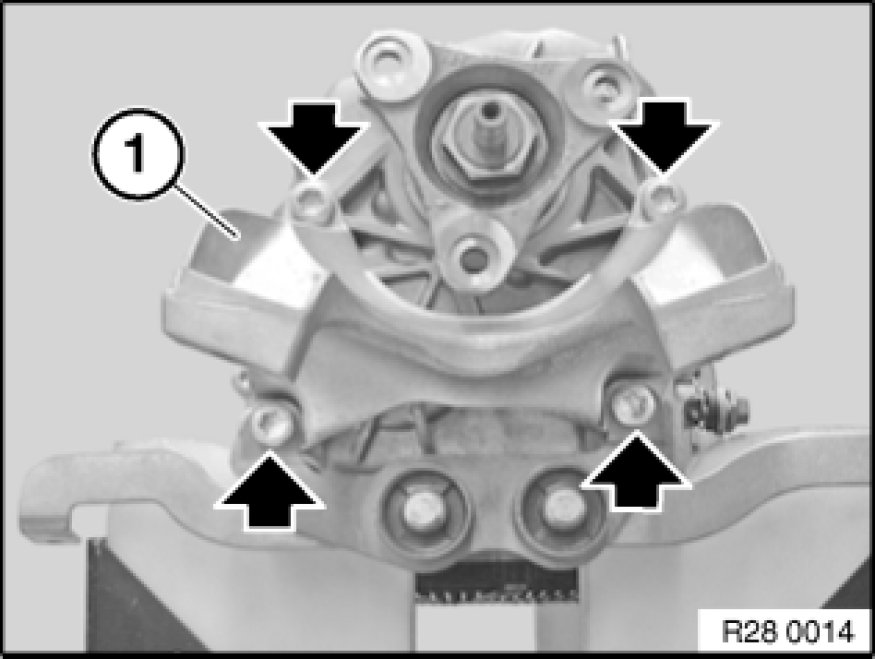

Release screws.
Remove and convert transmission bearing block (1).





Modify transportation locks.
Convert all cable holders.
Convert all seal plugs.
Convert protective cap on output shaft.

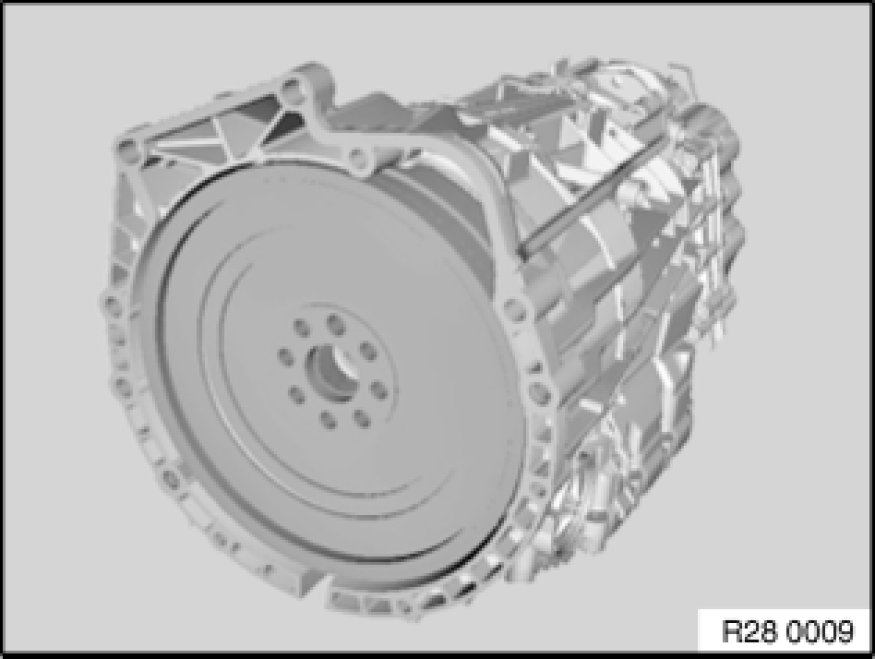

Transmission identification:
- refer to BMW Parts Service.
- On type plate
