32 13 650 Removing and Installing/Replacing EH Converter For Servotronic

32 13 650 - Removing and installing/replacing EH converter for Servotronic





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

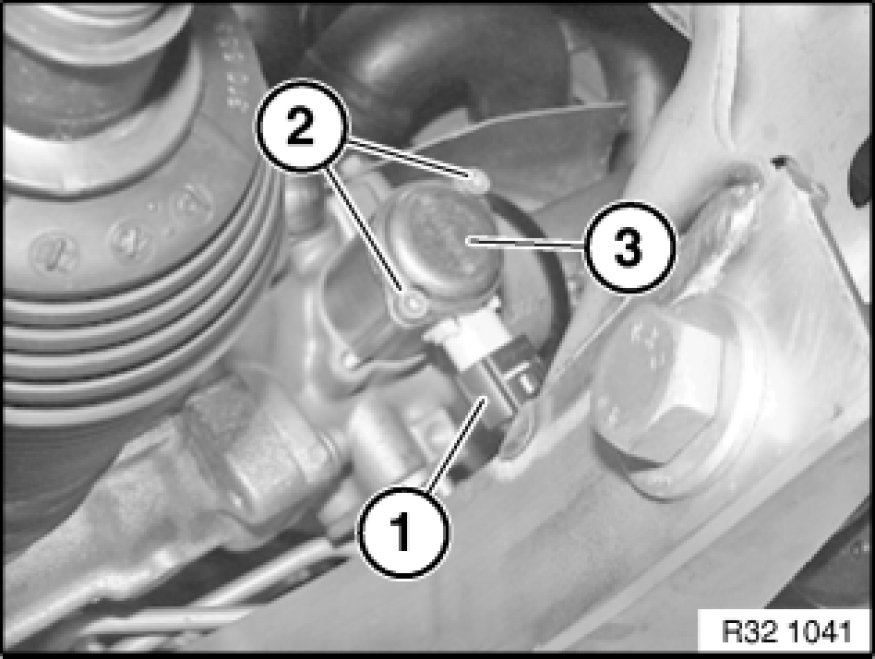

Disconnect plug connection (1).
Release screws (2).
Remove EH converter (3).

Installation Note:
Clean side return orifice with compressed air.
Align EH converter (3) to opening in power steering gear, press by hand into power steering gear up to stop, insert screws (2) and tighten down.
Tightening torque 32 00 4AZ 32 00 Steering.





After installation:
- Fill and bleed hydraulic system
