23 00 037 Installing Replacement Transmission (GS6-53BZ/DZ)

23 00 037 - Installing replacement transmission (GS6-53BZ) S65





Important!
After completion of work, check transmission fluid level 00 11 229 Oil Change In Manual Gearbox.
Use only the approved transmission fluid.

Failure to comply with this instruction will result in serious damage to the transmission.






Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations





Necessary preliminary tasks:
- Drain gear oil at oil drain plug. Tightening torque:23 00 4AZ 23 00 Transmission In General (GS653BZ 6 Speed SMG).

- Remove transmission 23 00 018 Removing and Installing Transmission (GS6-53BZ).





Convert shift rod joint.

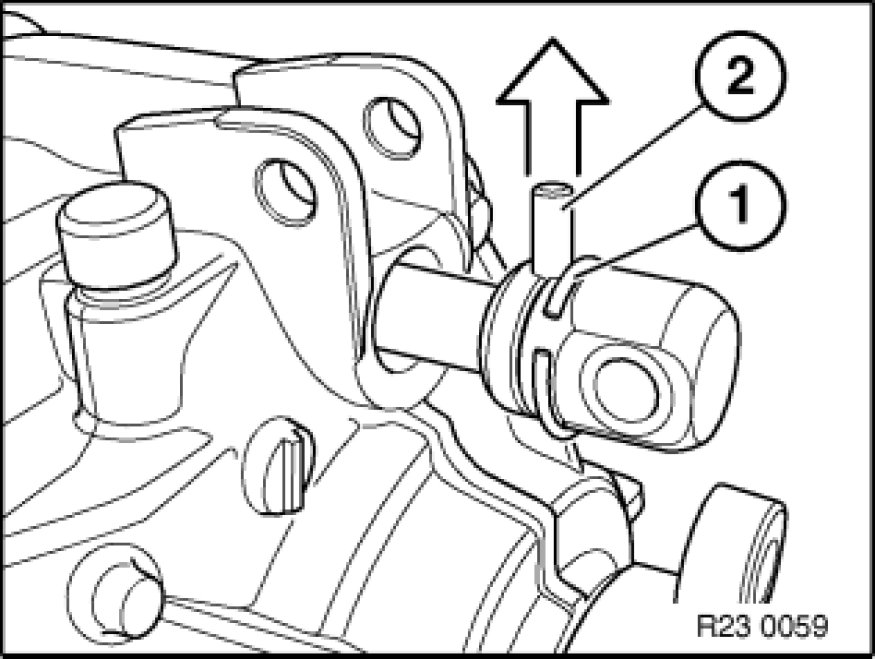

Push back retaining ring (1) and drive out dowel pin (2).






Note:

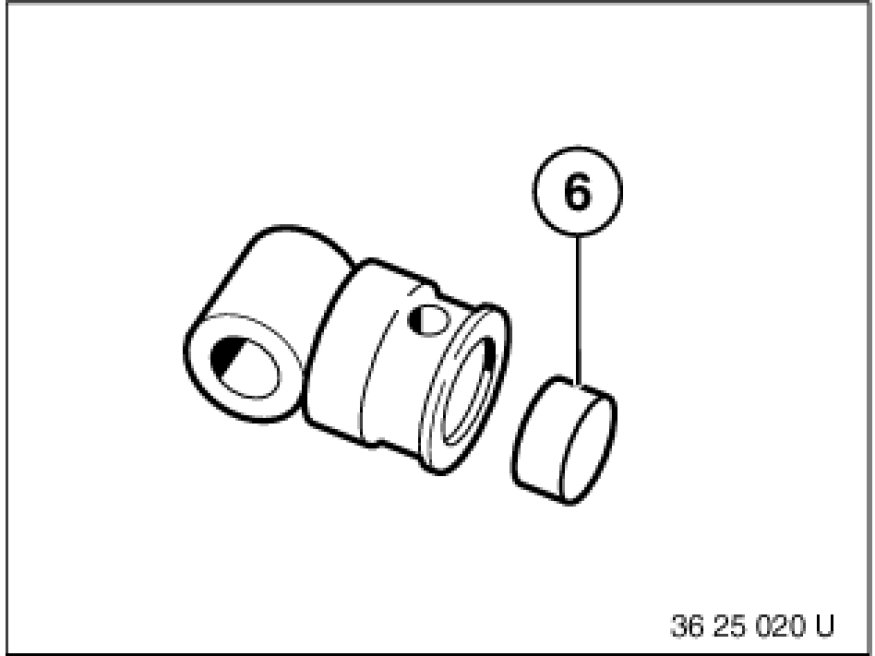

Check damping disk (6) for damage and replace if necessary.





Convert following parts from previous transmission to new transmission.
- Release bearing and release lever Service and Repair.

- Ball pin and spring wire clip

- Studs for clutch slave cylinder

- Pulse generator, crankshaft/transmission Replacing Pulse Generator on Crankshaft/Transmission





Add final details to vehicle.
Check oil level.

Installation Note:
Observe greasing specification 23 00 018 Removing and Installing Transmission (GS6-53BZ).
