00 11 ... Draining/Topping Up Gear Oil in Manual Transmission

00 11.. ... Draining/topping Up Gear Oil In Manual Transmission

NOTE: Gearbox must be at normal operating temperature.

Gear oil:
- refer to BMW Service Operating Fluids.

Filling capacities:
- Refer to Technical Data.







Draining gear oil:

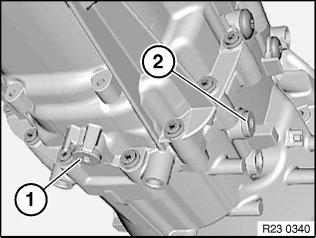

- Release oil drain plug (1) and filler plug (2).
- Clean oil drain plug (1) and screw in.

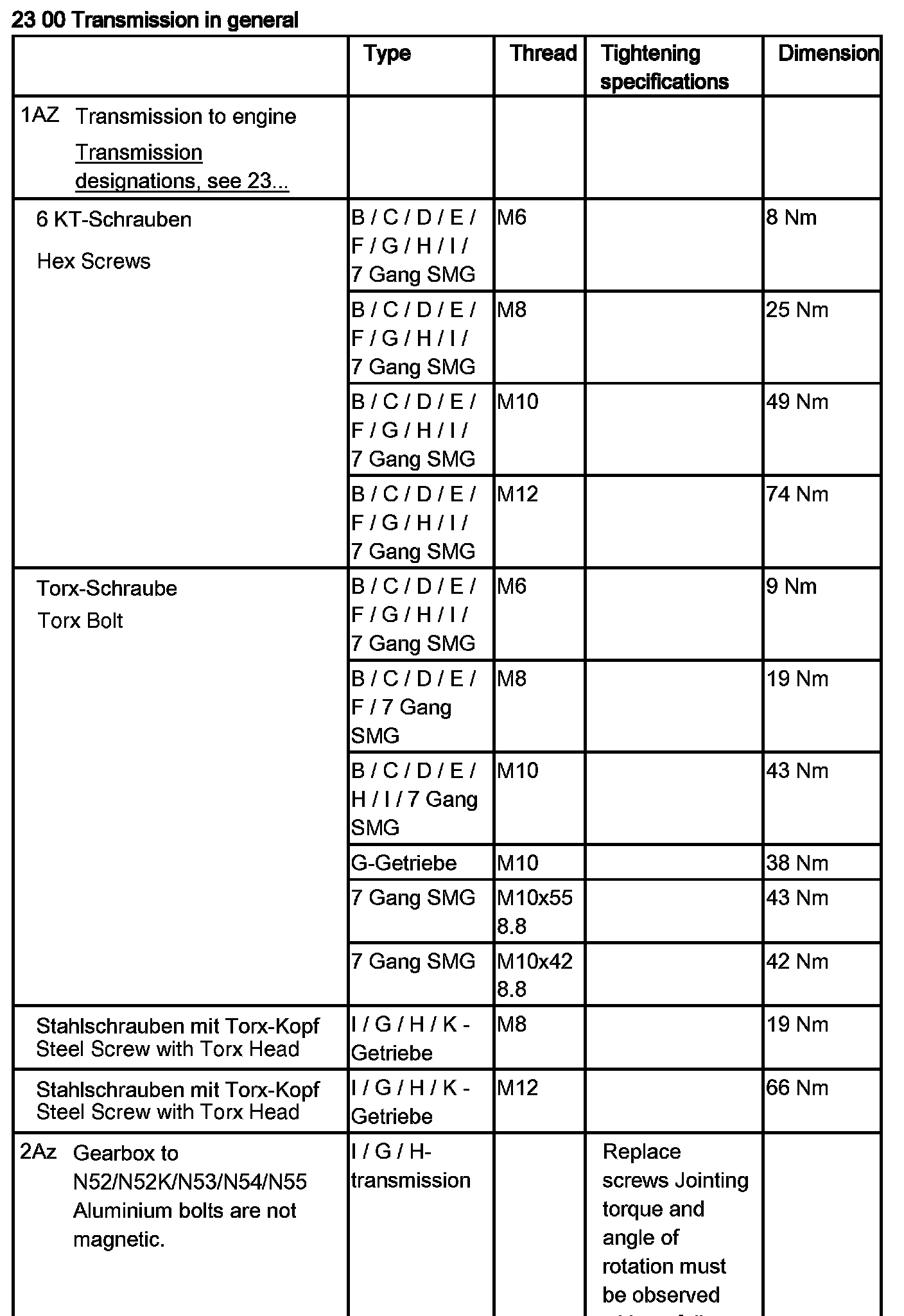

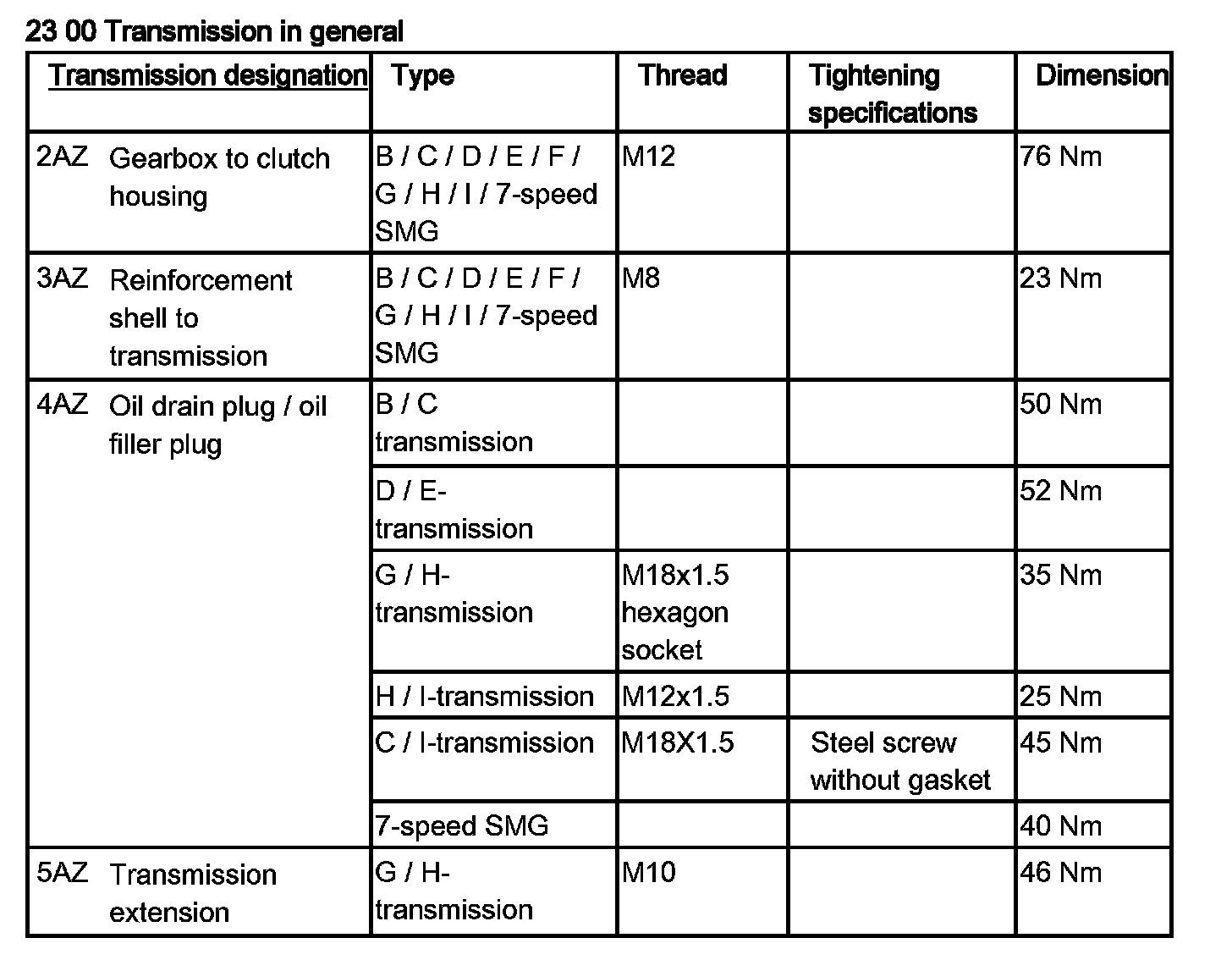

Tightening torque 23 00 4AZ.

Fill transmission with ATF.
- Pour in gear oil until overflowing.
- Tighten in filler screw (2).
Tightening torque: 23 00 4AZ.
