32 41 332 Replacing Delivery Line for Power Steering

32 41 332 - Replacing pressure line for power steering (S65)





Warning!
Danger of poisoning 00 .. ... Danger of Poisoning If Oil Is Ingested/Absorbed Through the Skin if oil is ingested/absorbed through the skin!
Risk of injury 00 .. ... Risk of Injury If Oil Comes Into Contact With Eyes and Skin if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection
- Remove compressor drive belt





Release banjo bolt (1) and detach pressure line (2) from vane pump.

Installation Note:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 8AZ [1][2]32 41 Pump and Oil Supply.





Expose pressure line up to connection on power steering gear.

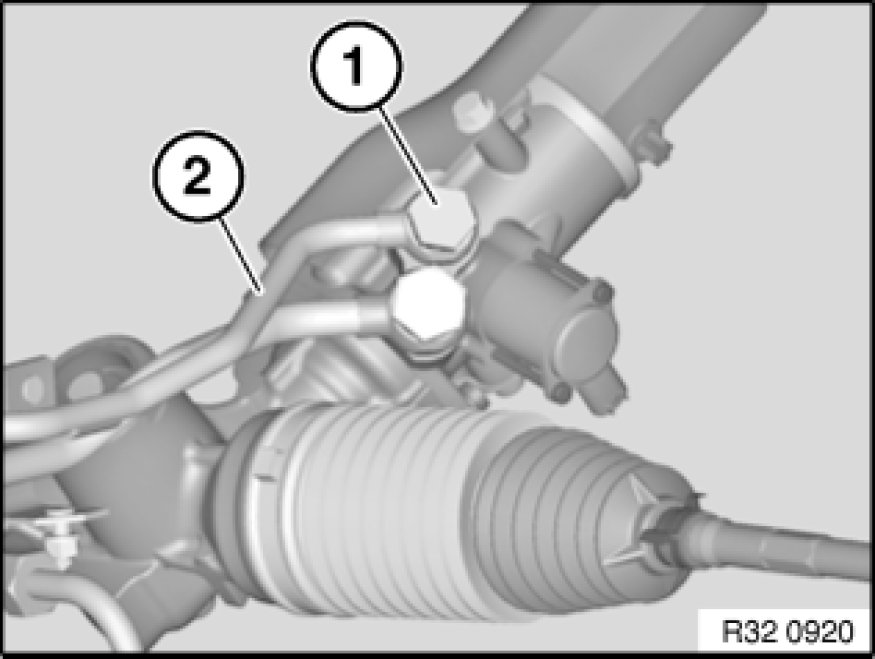

Release banjo bolt (1) and remove pressure line (2).

Installation Note:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 9AZ [1][2]32 41 Pump and Oil Supply.





After installation:
- Fill and bleed hydraulic system
- Check pipe connections for leaks
