32 41 311 Replacing Intake Pipe For Hydraulic Steering

32 41 311 - Replacing suction line for power steering (S65)





Warning!
Danger of poisoning 00 .. ... Danger of Poisoning If Oil Is Ingested/Absorbed Through the Skin if oil is ingested/absorbed through the skin!
Risk of injury 00 .. ... Risk of Injury If Oil Comes Into Contact With Eyes and Skin if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove drive belt tensioner [1][2]Replacing Tensioning Device for Alternator Drive Belt

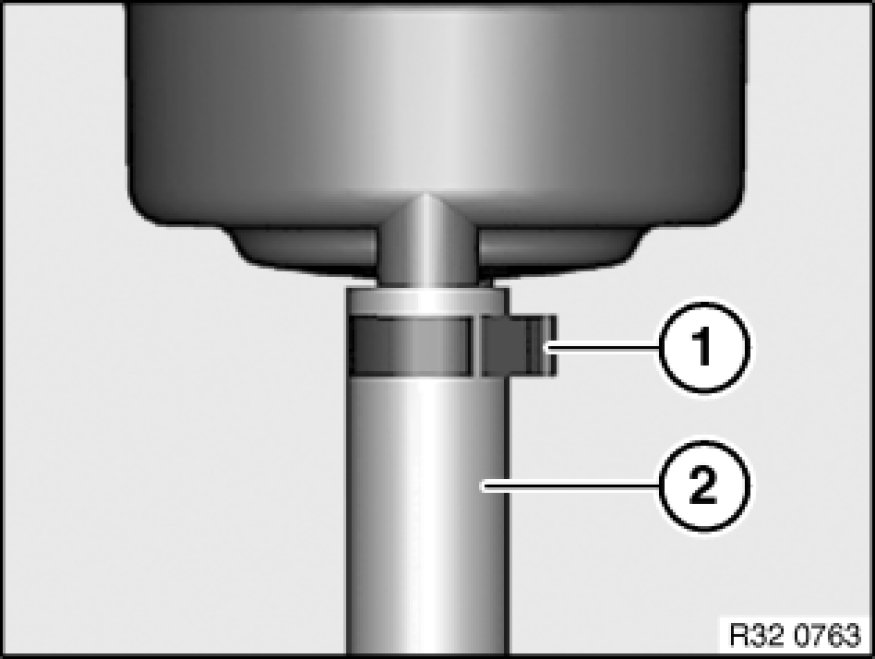

Release hose clamp (1) and detach suction line (2) from fluid reservoir.

Installation Note:
Make sure suction line is laid without tension and with sufficient spacing to adjoining components.





Expose suction line up to connection on vane pump.

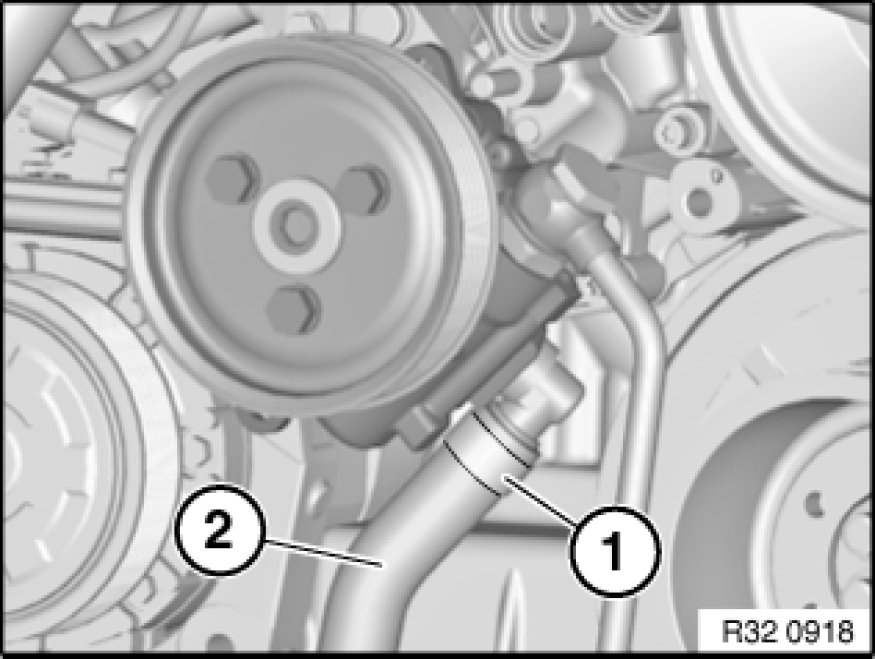

Release hose clamp (1) and detach suction line (2) from vane pump.

Installation Note:
Markings on suction line and vane pump connection must match up.





After installation:
- Fill and bleed hydraulic system
- Check pipe connections for leaks
