Home >> BMW >> 2009 >> M3 Convertible (E93) V8-4.0L (S65) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Diagrams >> Electrical Diagrams >> Active Steering (AL Active Steering) >> Active Steering (AL Active Steering)

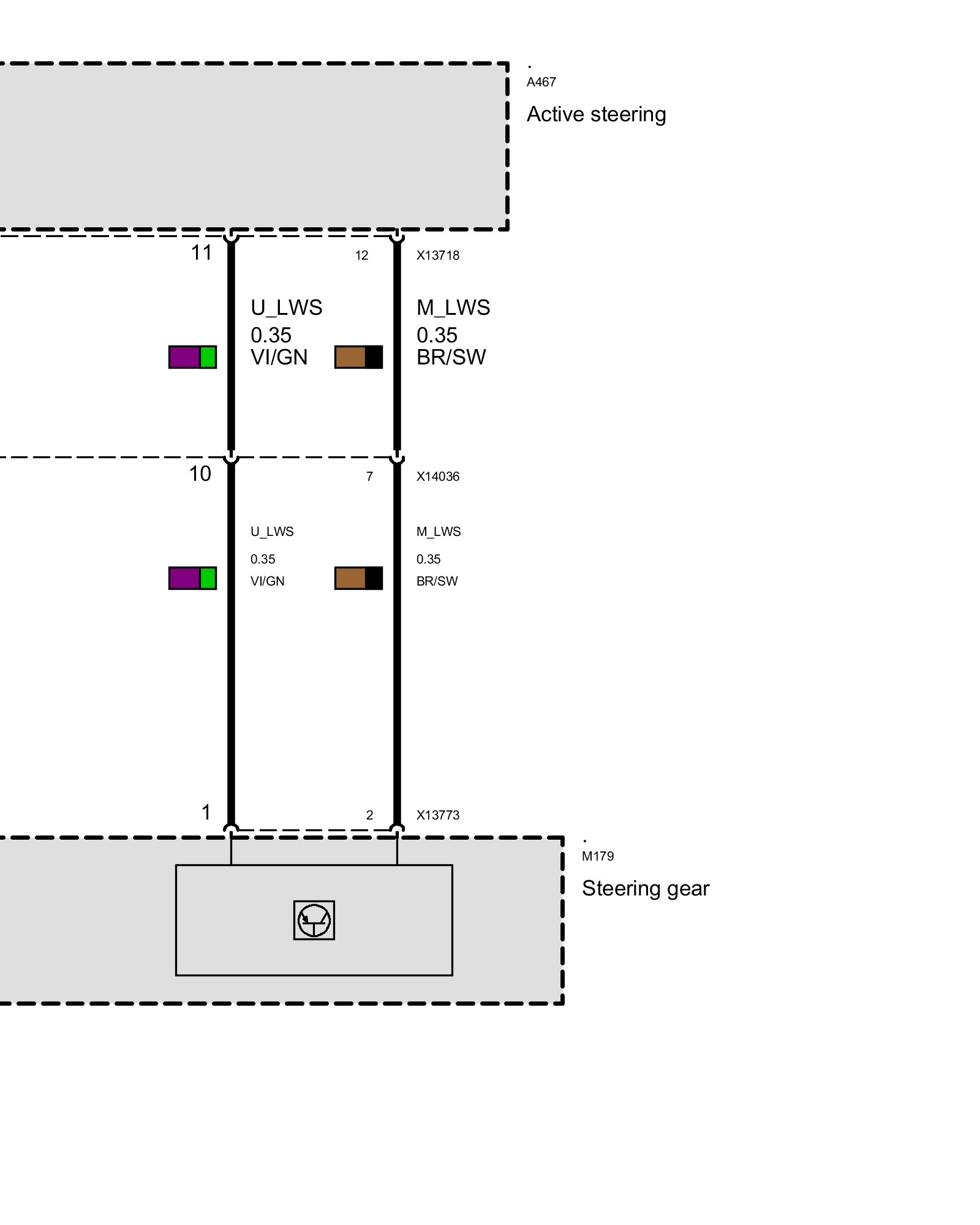

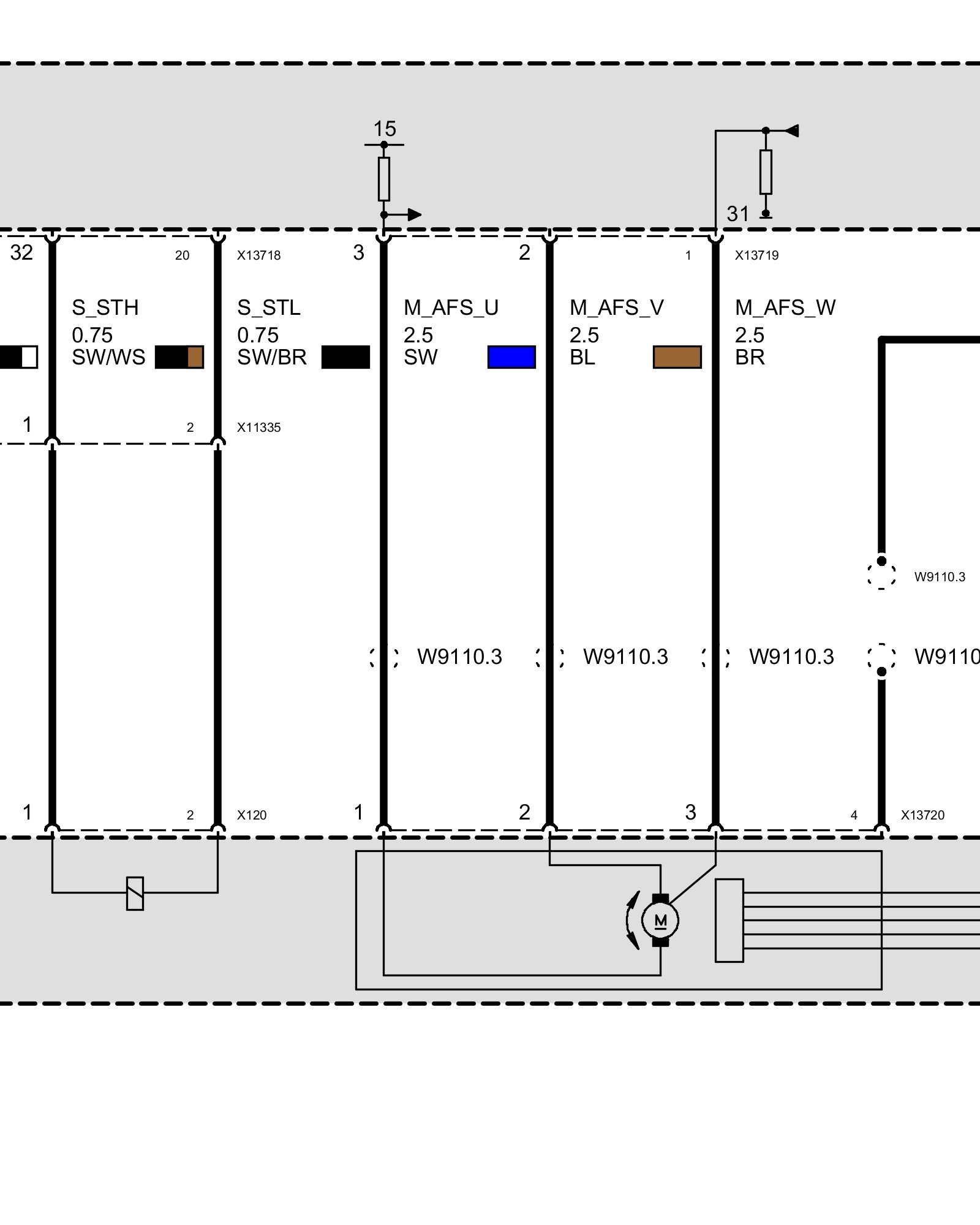

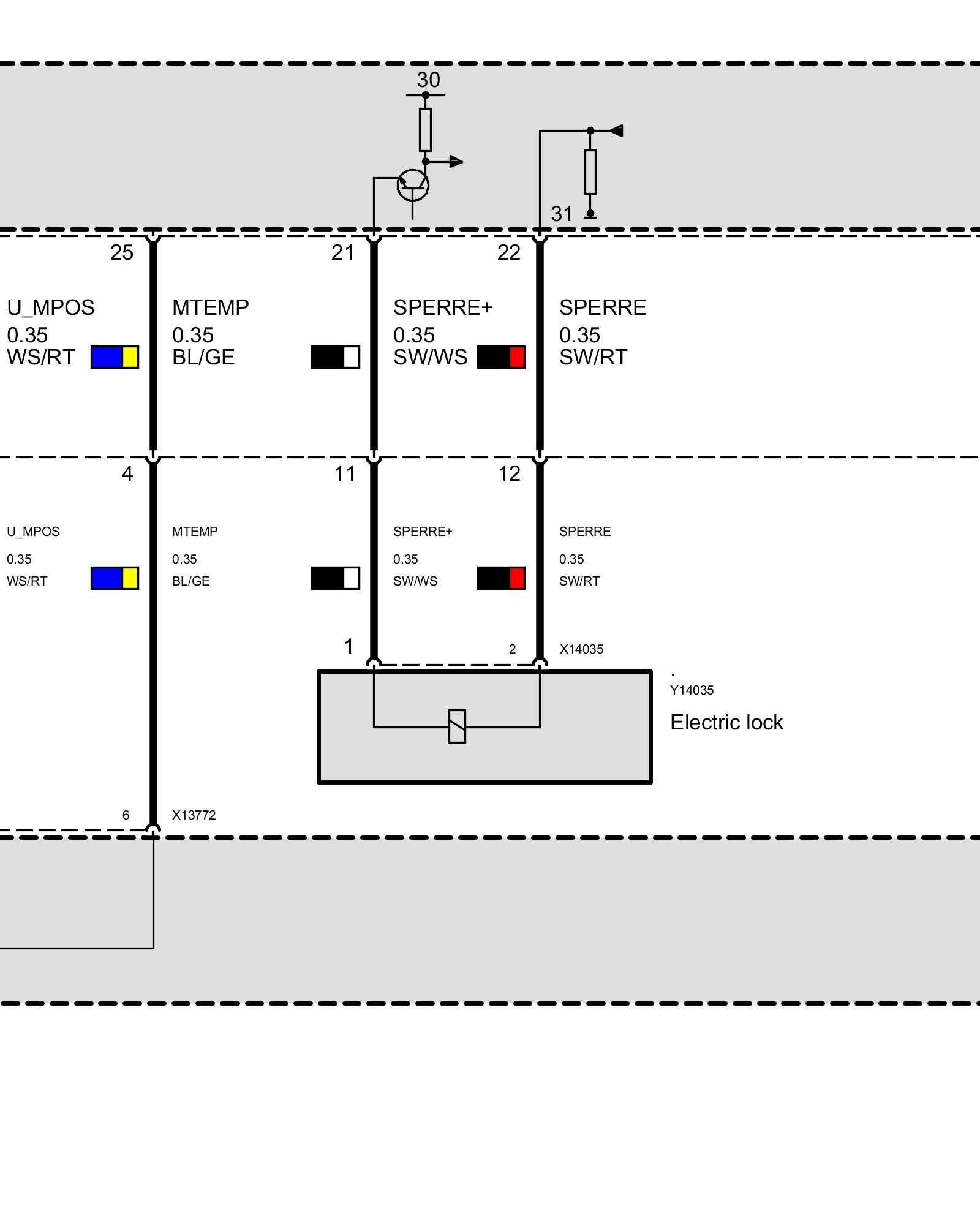

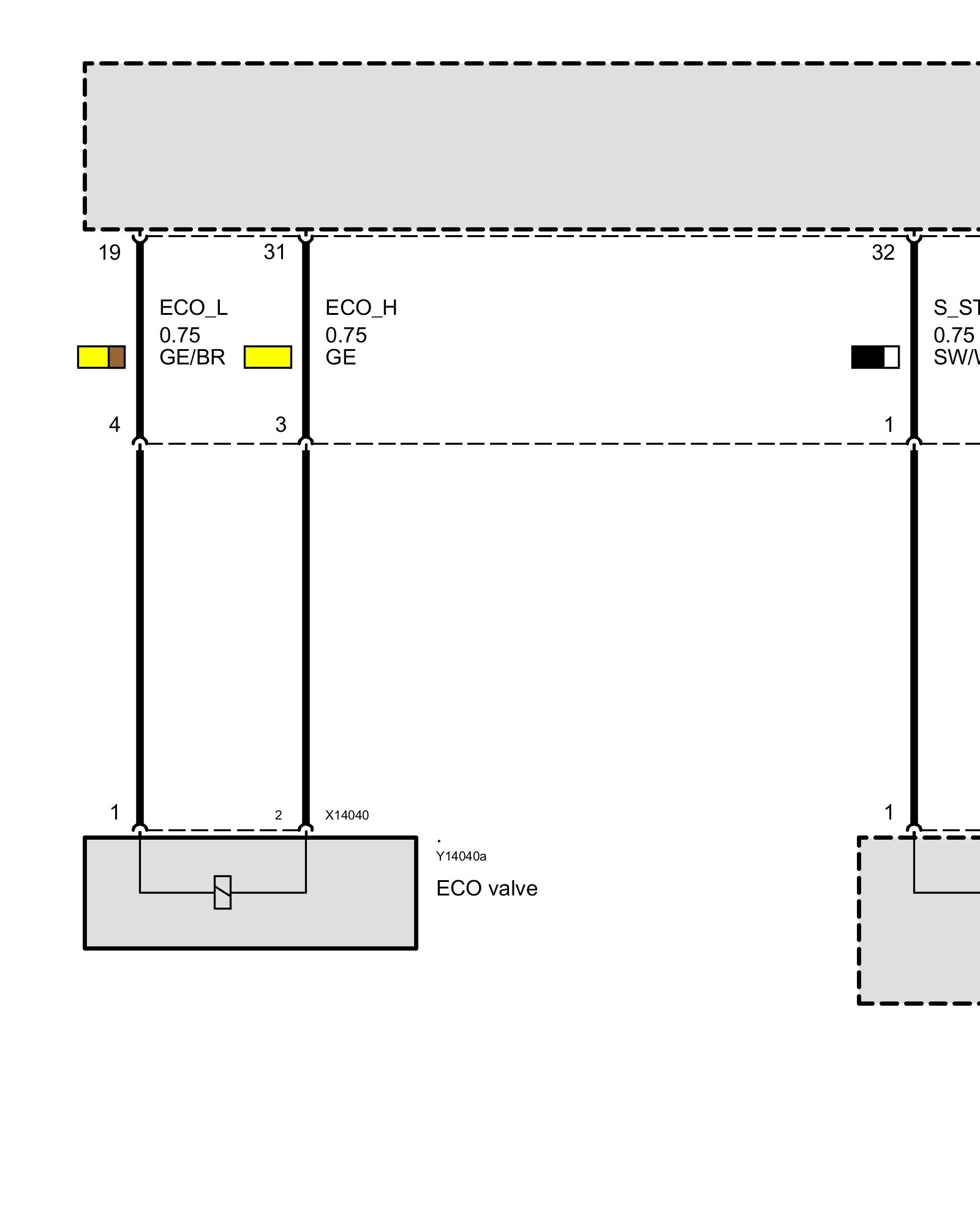

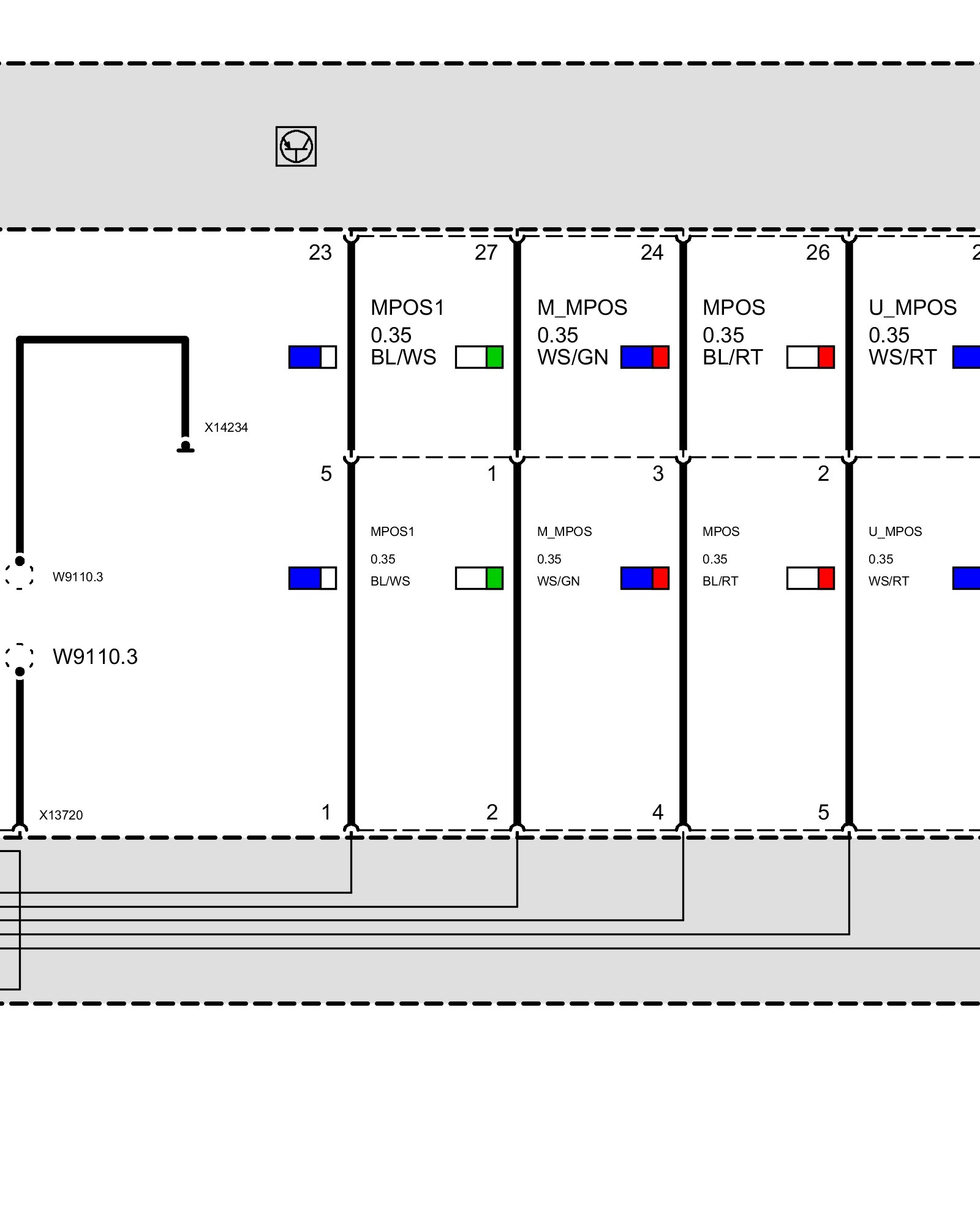

Active Steering (AL Active Steering)



Active Steering


As of 03/07
