Home >> BMW >> 2009 >> M3 Convertible (E93) V8-4.0L (S65) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Diagrams >> Electrical Diagrams >> Active Front Steering (AL Active Front Steering (AFS70)) >> Supply, Active Steering

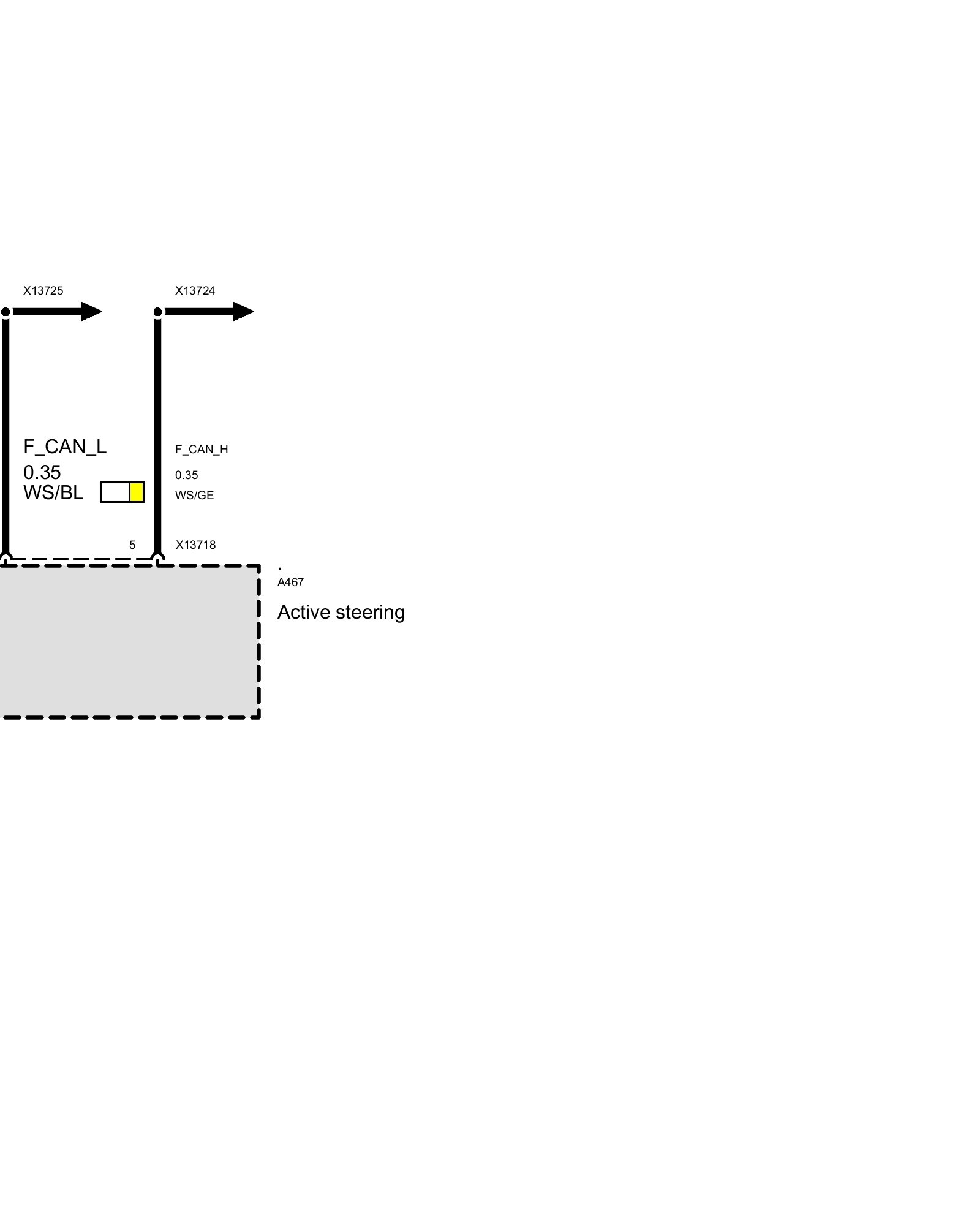

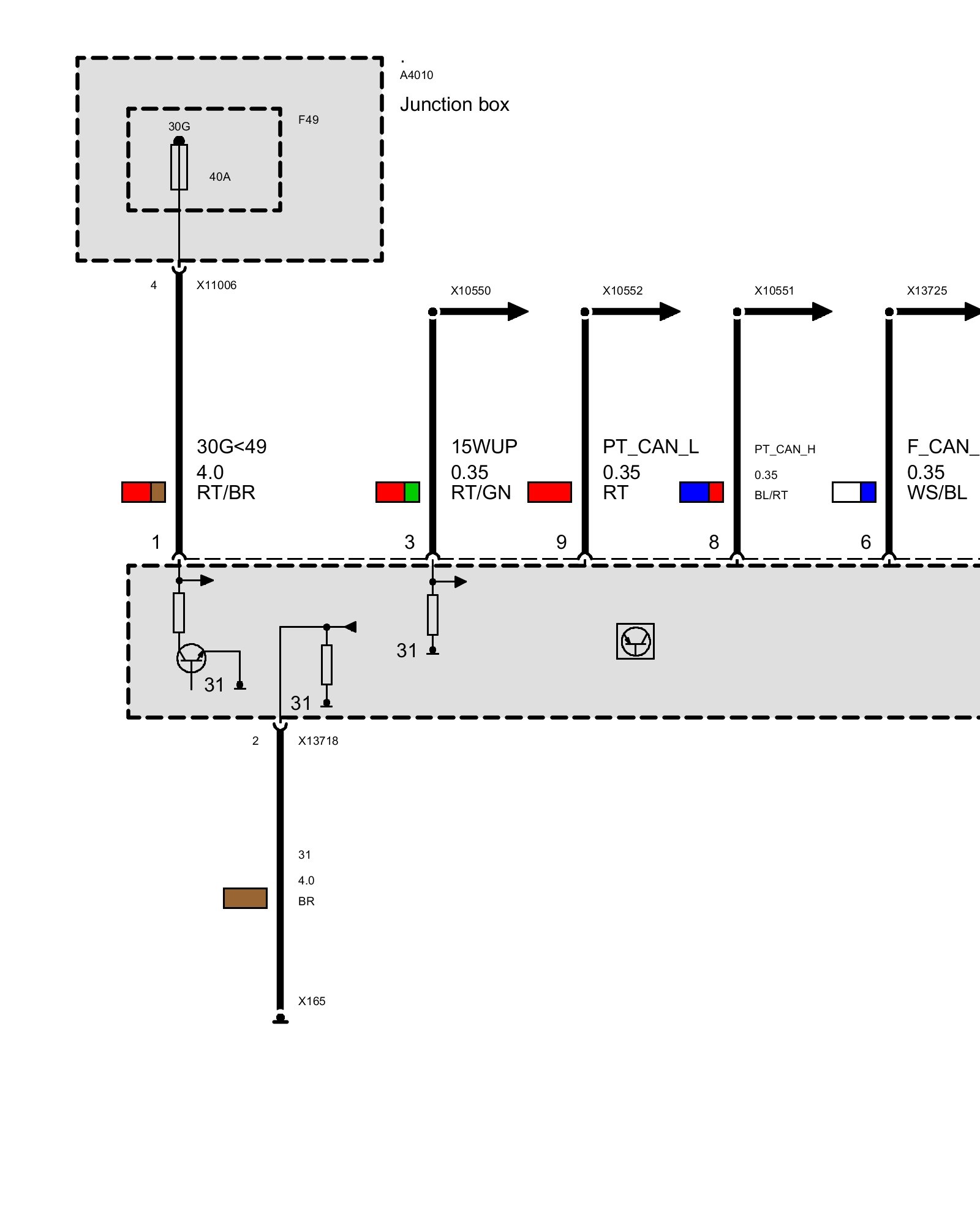

Supply, Active Steering



Supply, Active Steering
