Removing and Installing/Replacing Luggage Compartment Light

63 31 080 - Removing and installing/replacing luggage compartment light





Important!
Follow instructions for handling light bulbs (interior lights) [1][2]63 99 ... Instructions For Replacing Light Bulbs (Interior Lights).

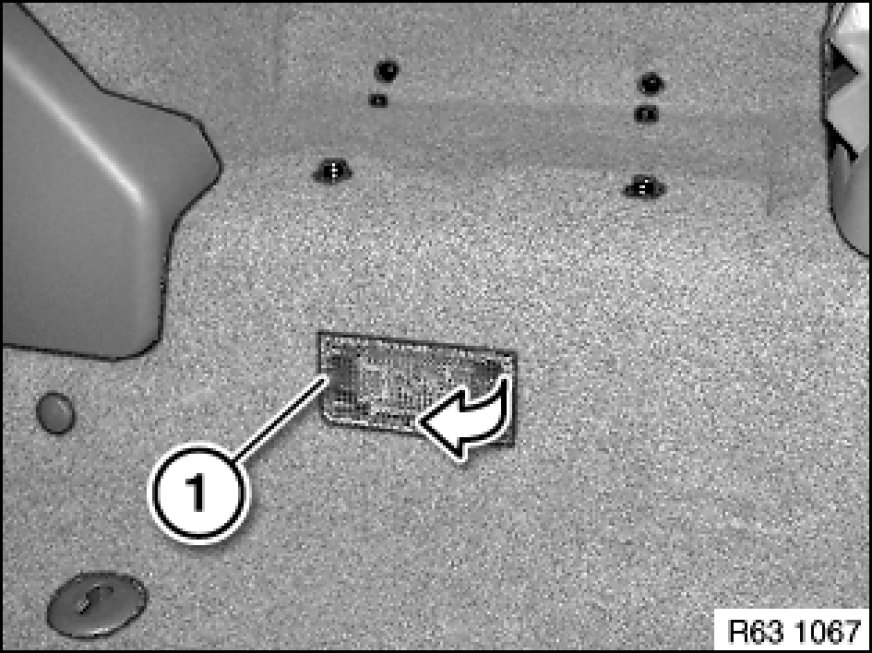

Lever out luggage compartment light (1) in direction of arrow.
Disconnect associated plug connection and remove luggage compartment light (1).





Replacement:
- If necessary, modify bulb 63 99 451 Replacing Light Bulb For Luggage Compartment Lighting
- Note bulb type Interior Lights.
