Home >> BMW >> 2009 >> M3 Convertible (E93) V8-4.0L (S65) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Automatic Headlight Vertical Aim Control (Xenon Lights Without AHL Adaptive Directional Headlights)

Automatic Headlight Vertical Aim Control (Xenon Lights Without AHL Adaptive Directional Headlights)

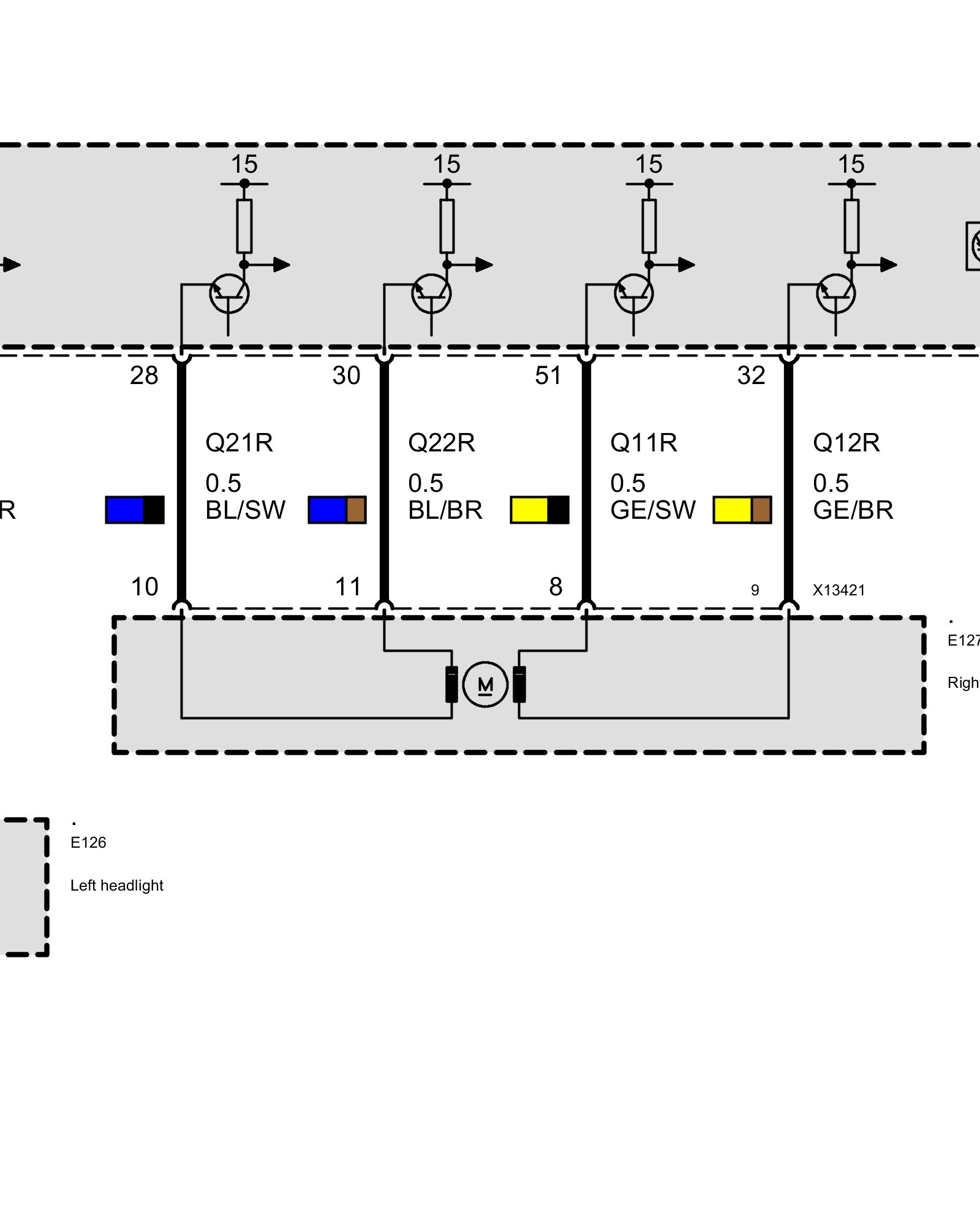

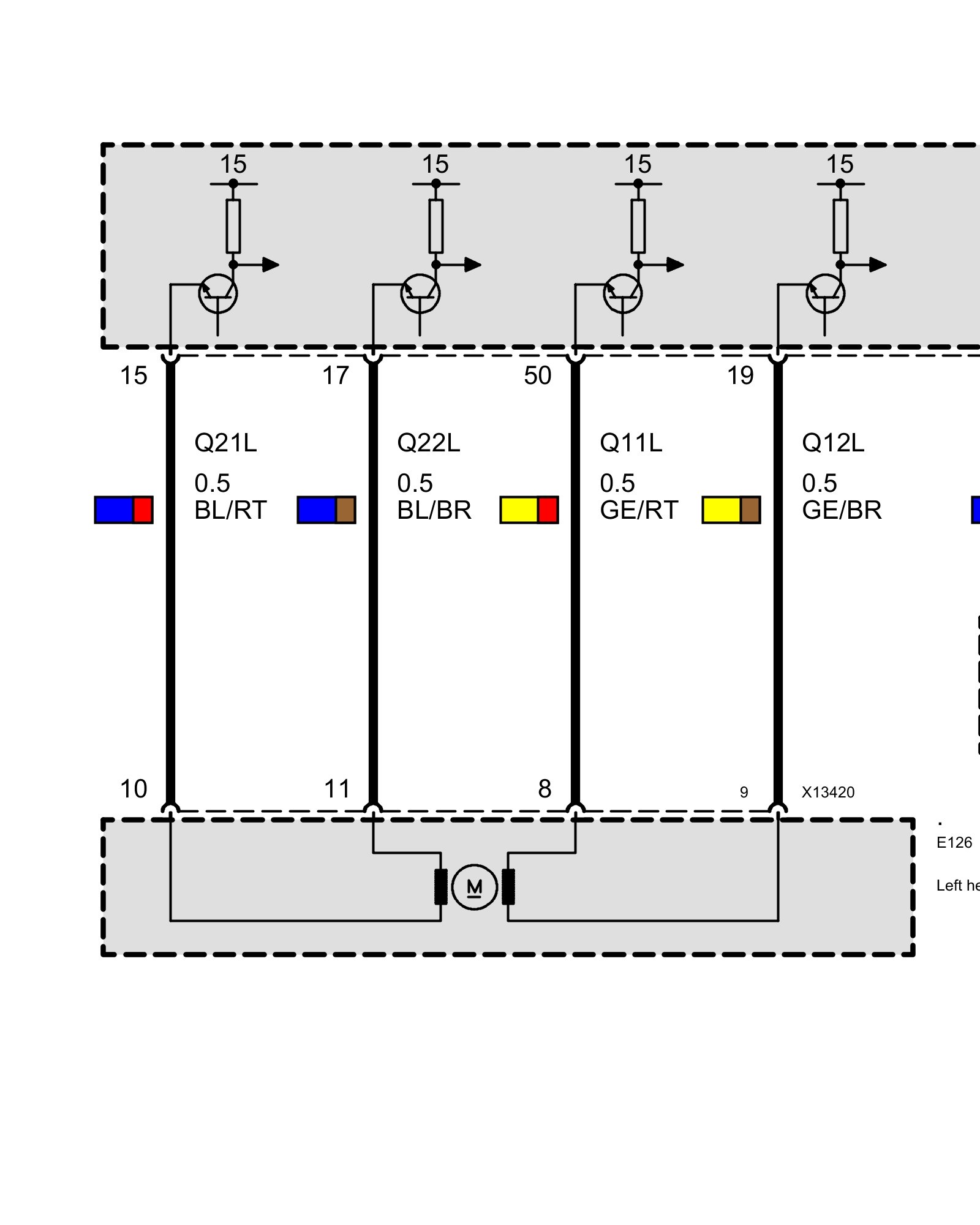

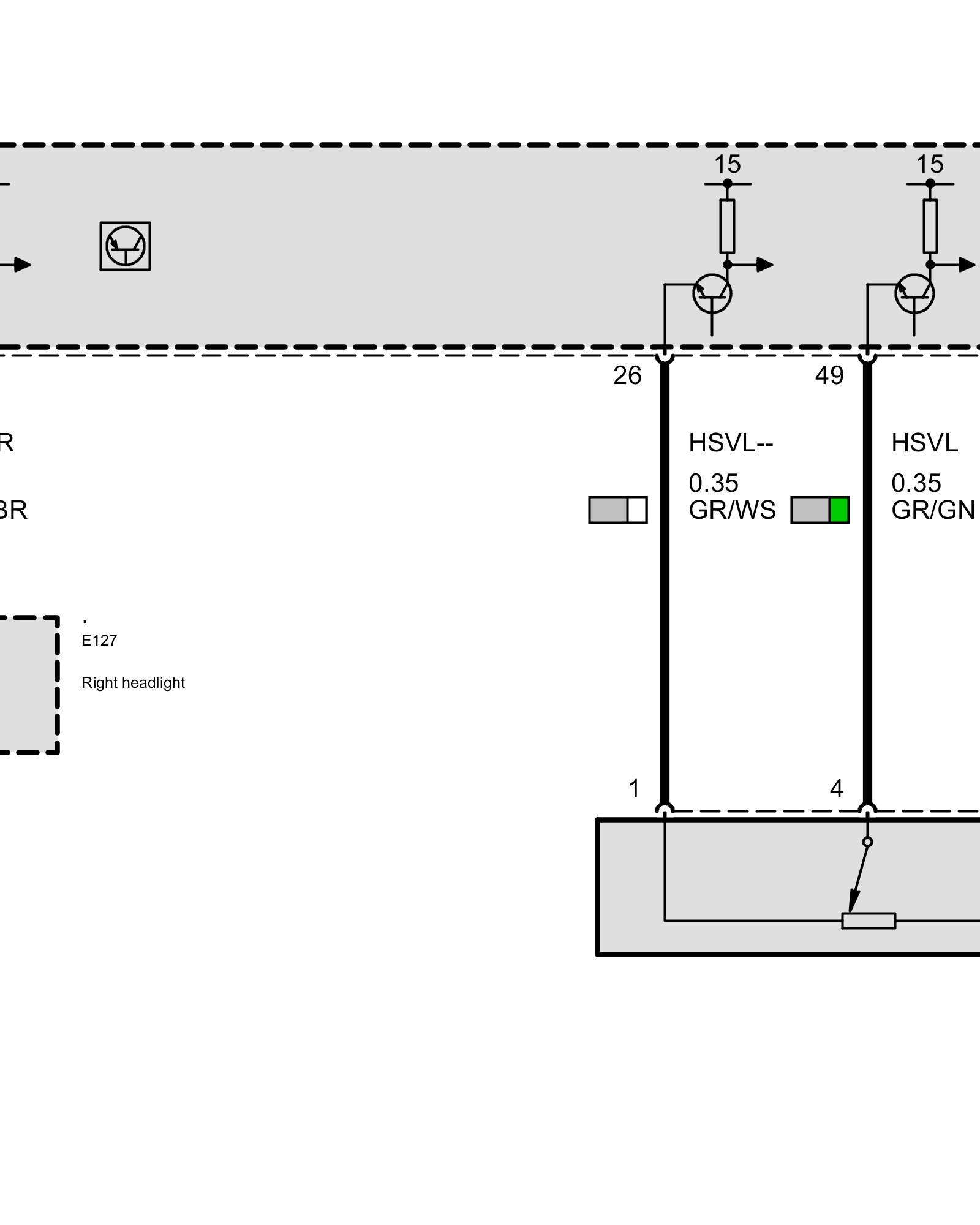

Automatic Headlight Vertical Aim Control
