Replacing Left Engine Mount

22 11 011 - Replacing left engine mount (S65)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position
- Lower front axle support

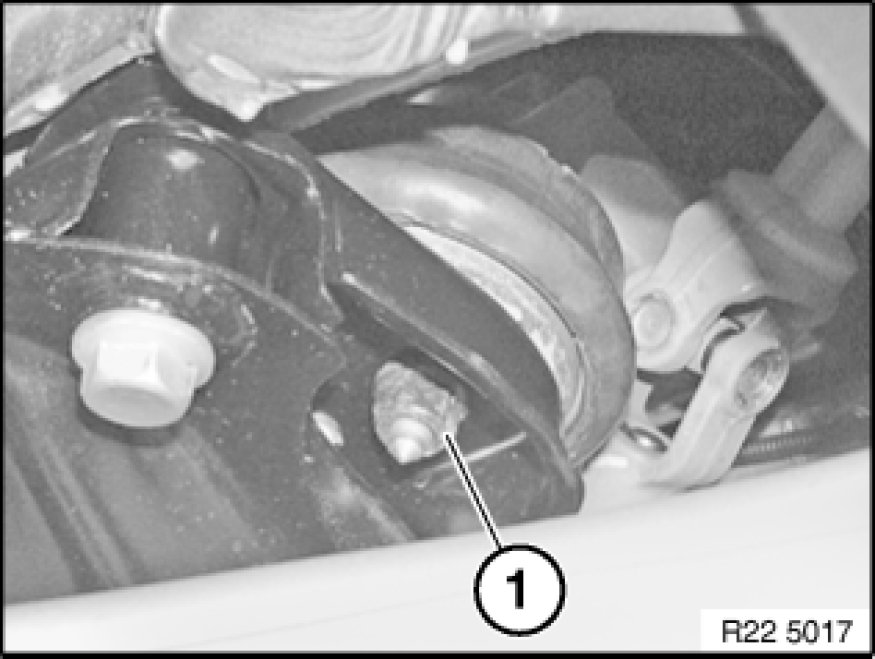

Slacken nut (1).
Tightening torque 22 11 1AZ Specifications.

Installation:
Replace nuts.





Installation:
Installation position of engine mount determined by locating pin.
