M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
Data Link Connector
OBDII Socket
Up to 03/07

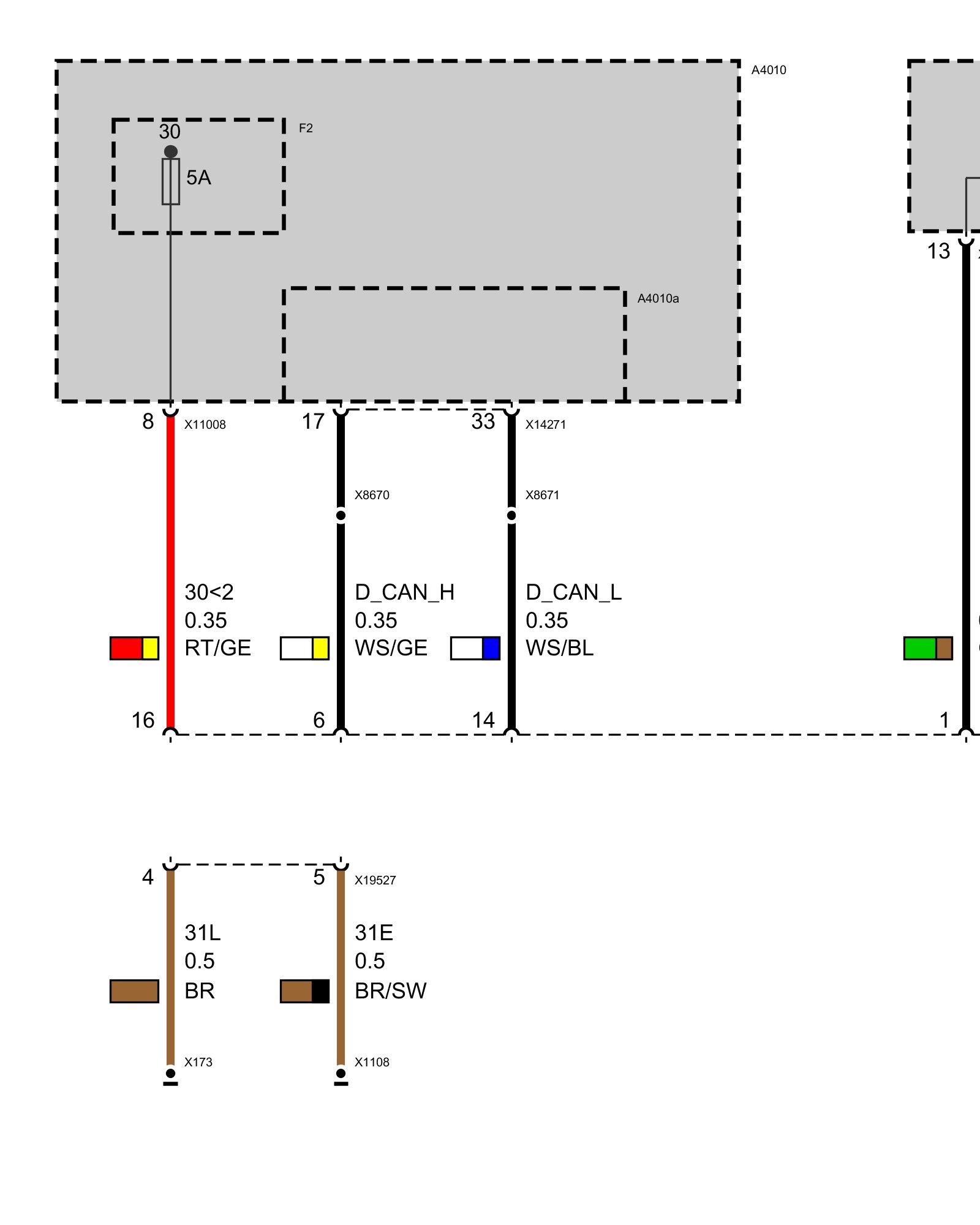

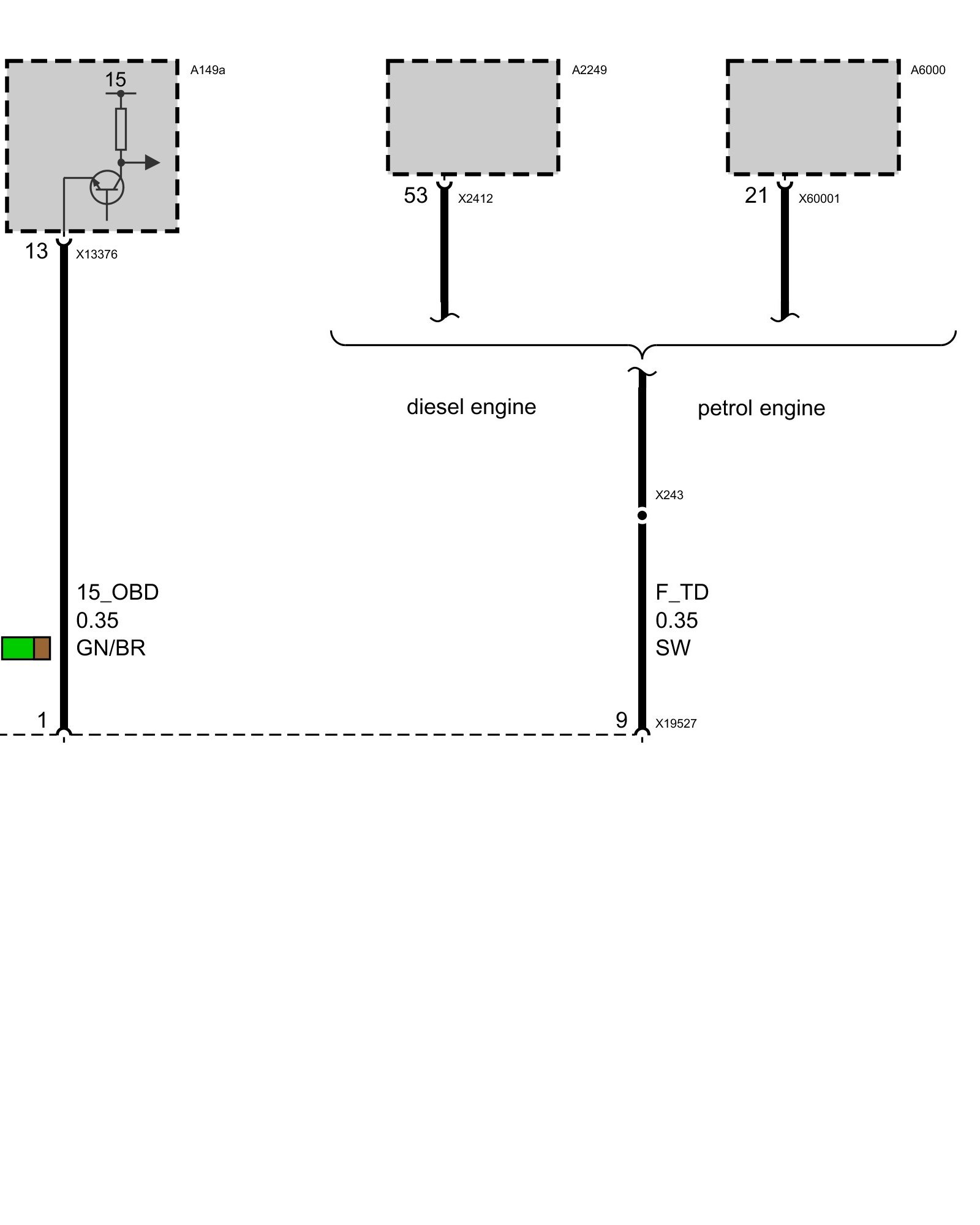

OBDII socket:
As of 03/07 Up to 09/07
As of 09/07 Up to 09/09
As of 09/09
