M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X9
>>

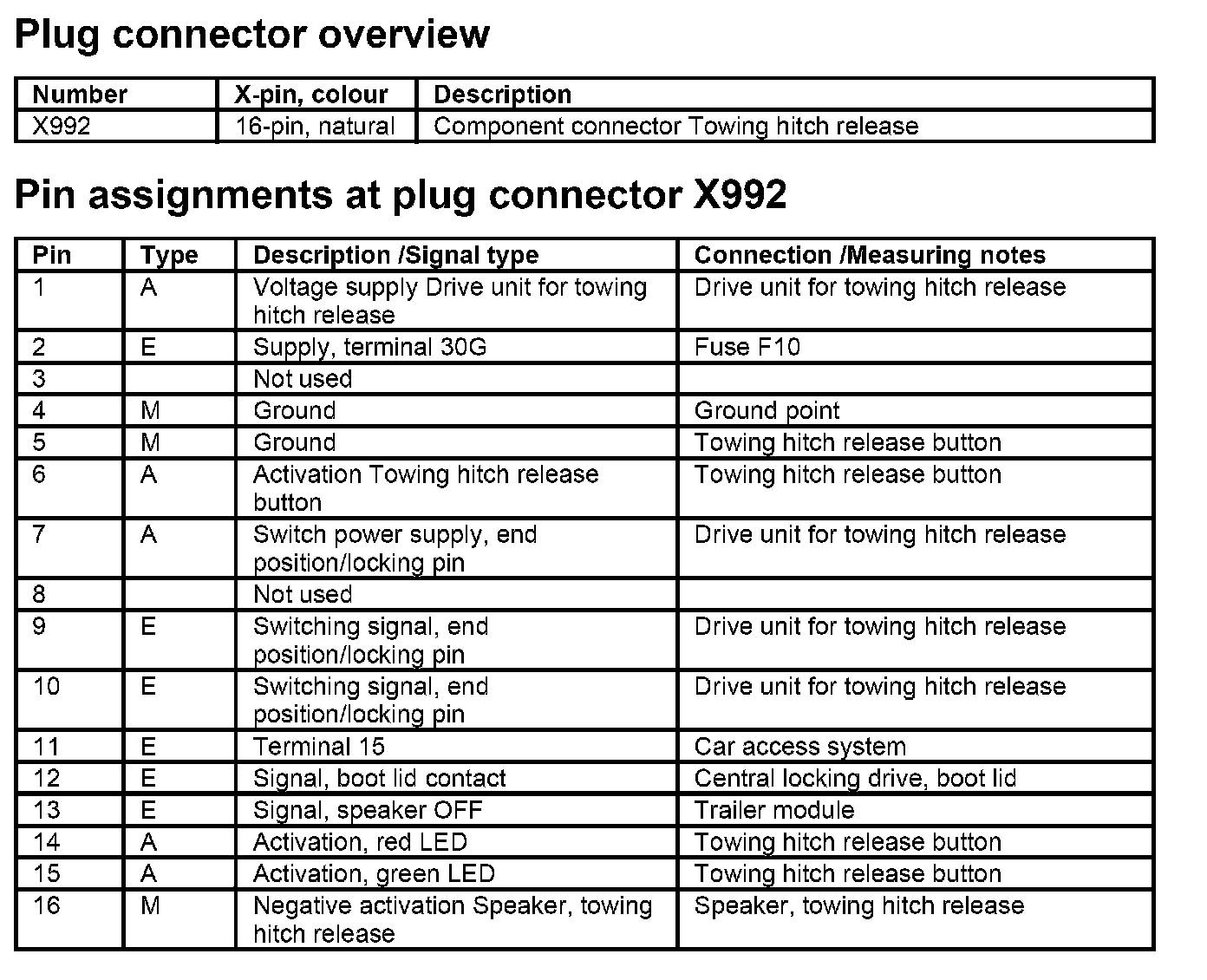

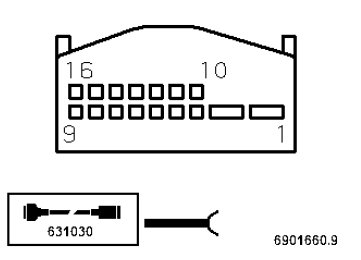

X992
X992
X992
A195 Towing Hitch Release
