M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

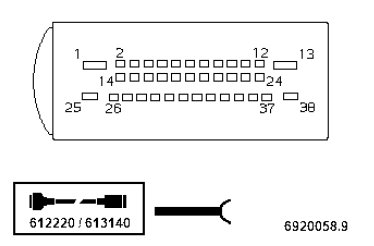

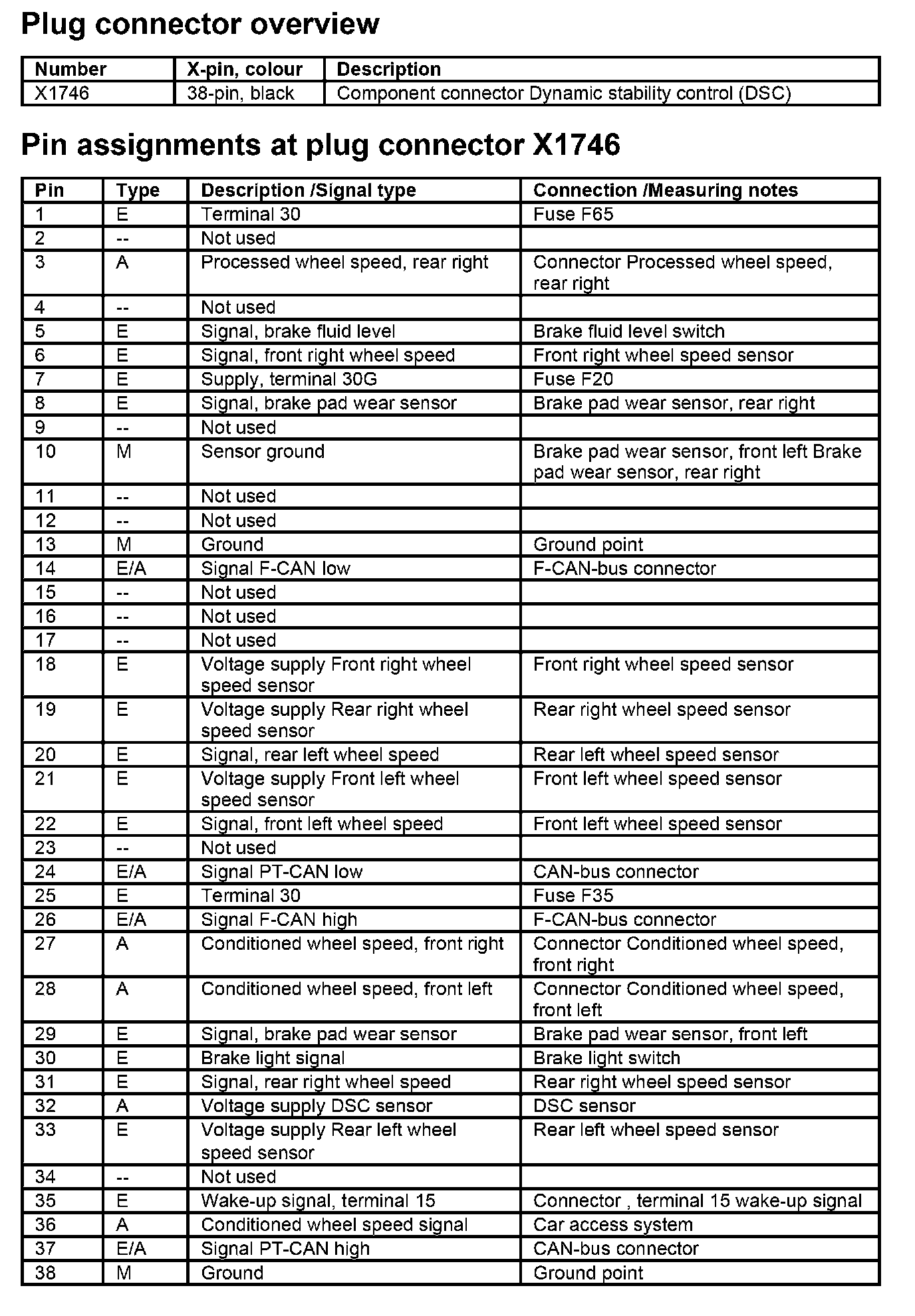

X1746
X1746
X1746
A65a Dynamic Stability Control (DSC)
