M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

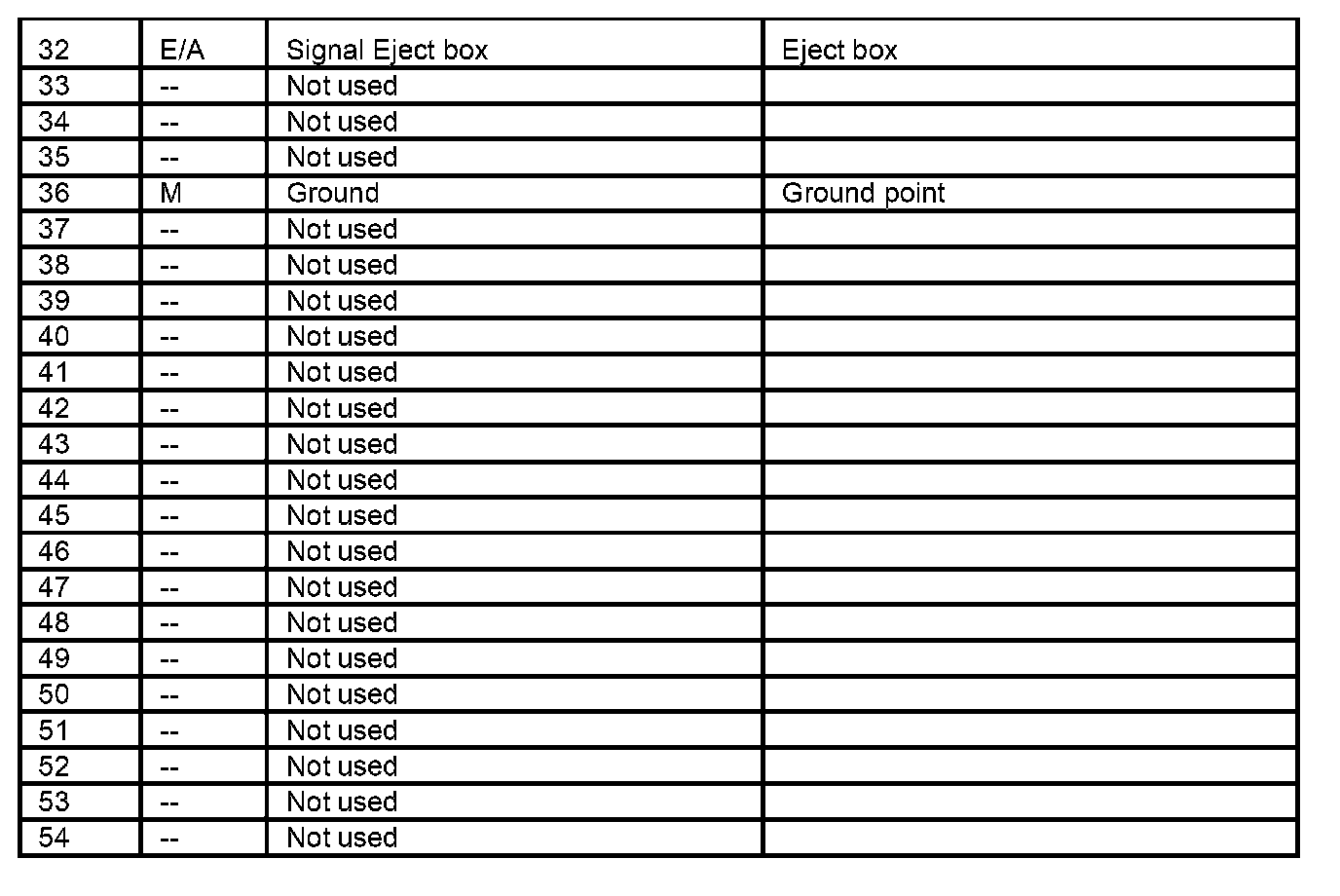

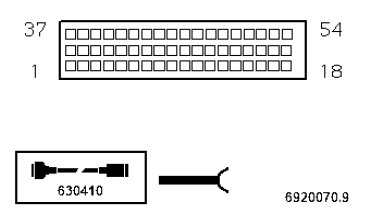

X14133
X14133
X14133

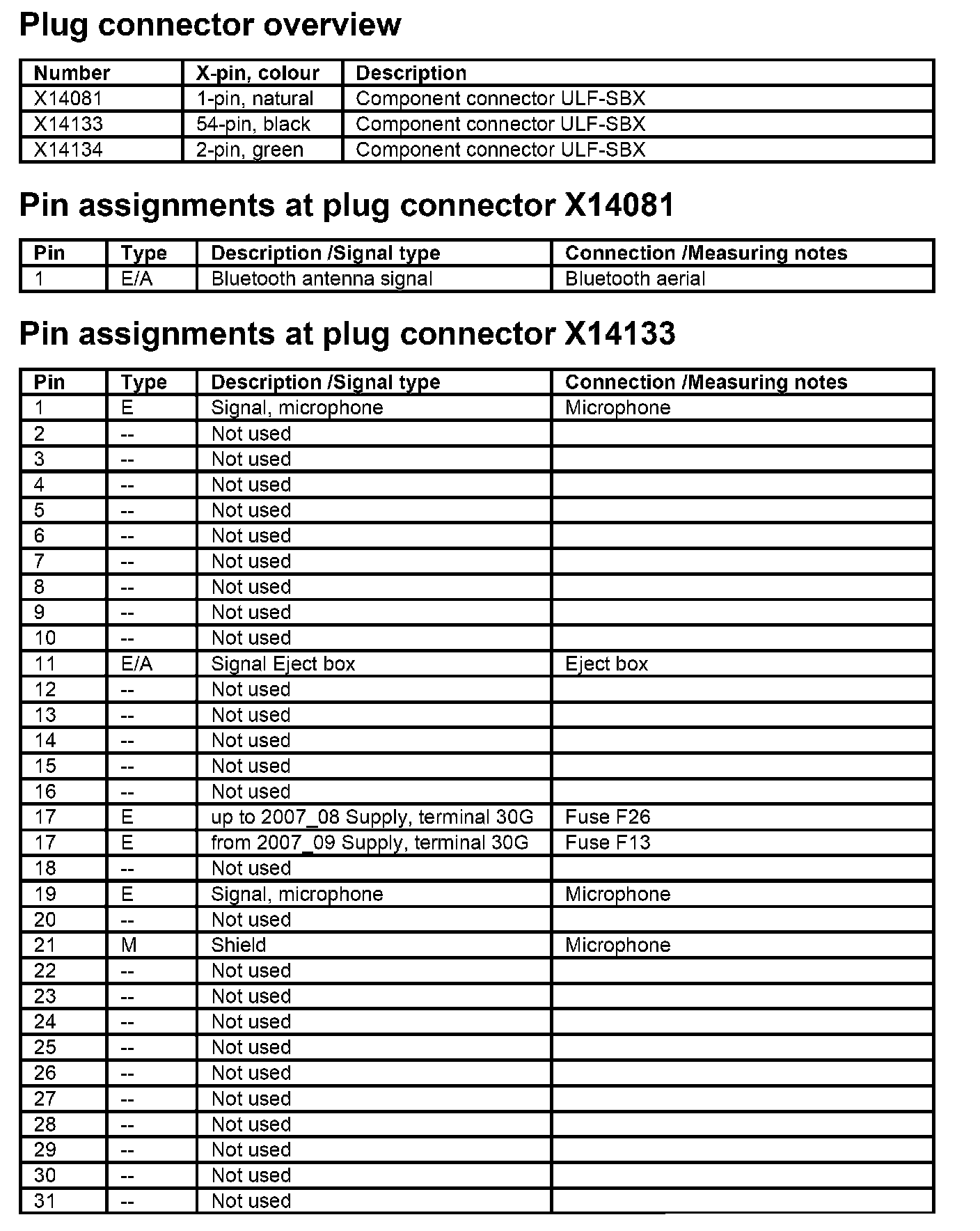

U400 ULF-SBX

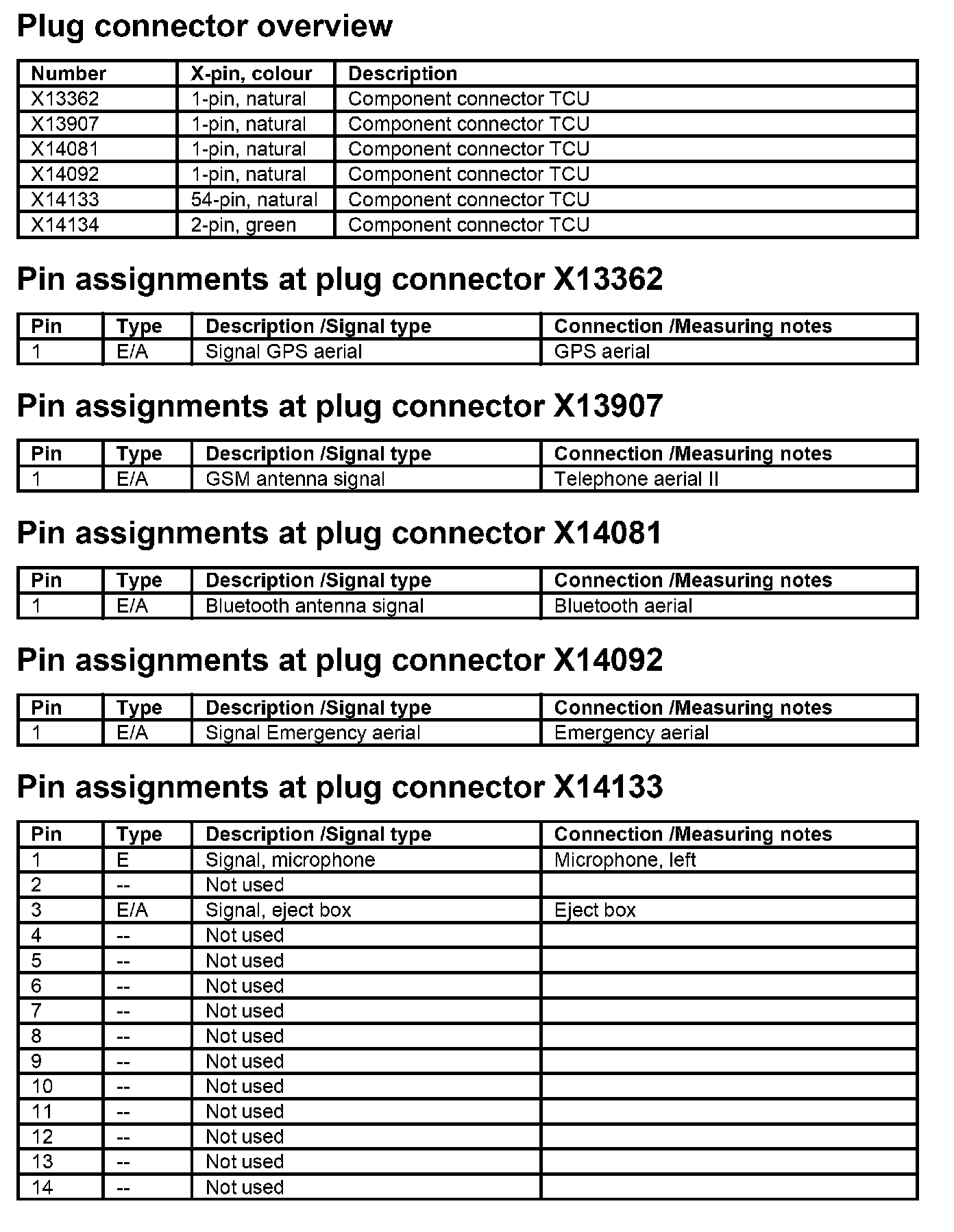

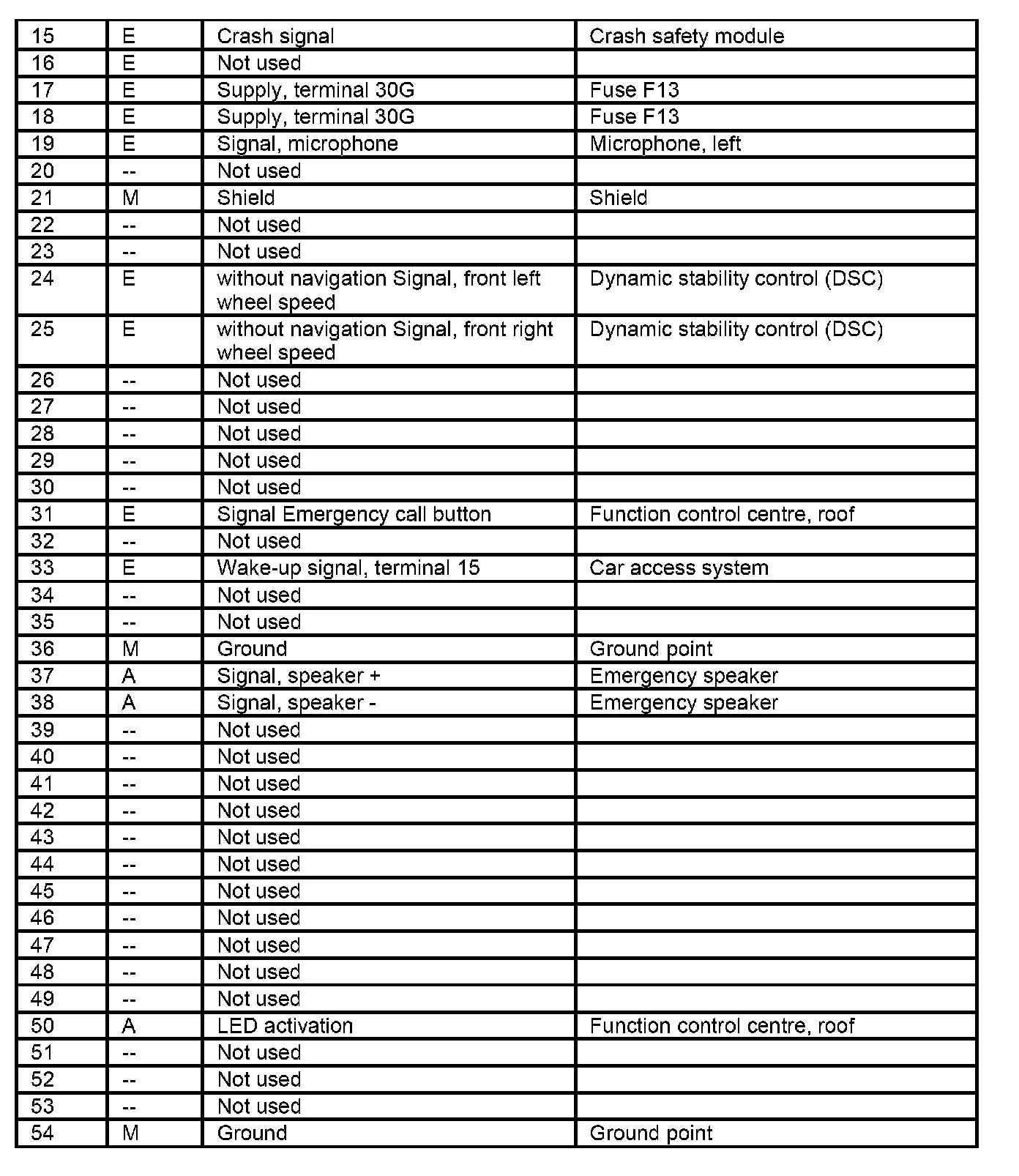

U400 TCU
