Removing and Installing/Replacing Left or Right Rear Head Restraint




52 24 390 - Removing and installing or replacing left or right rear head restraint





Necessary preliminary tasks:
- Unlock backrest and tilt forward

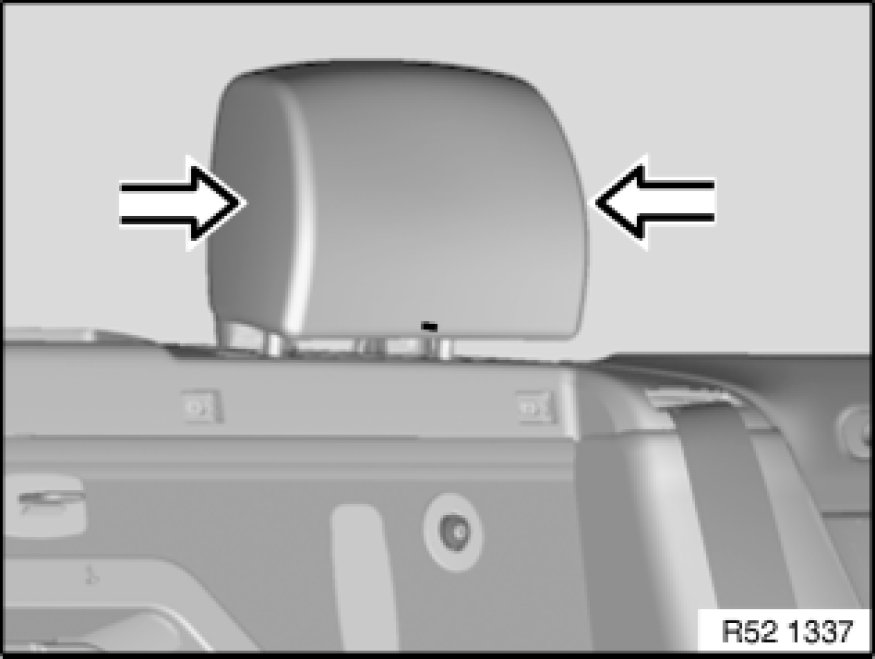

Pull head restraint out of guide sleeves by moving backwards and forwards.
