Removing and Installing Complete Armrest (Filler Element) For Rear Seat Backrest




52 24 030 - Removing and installing complete armrest (filler element) for rear seat backrest

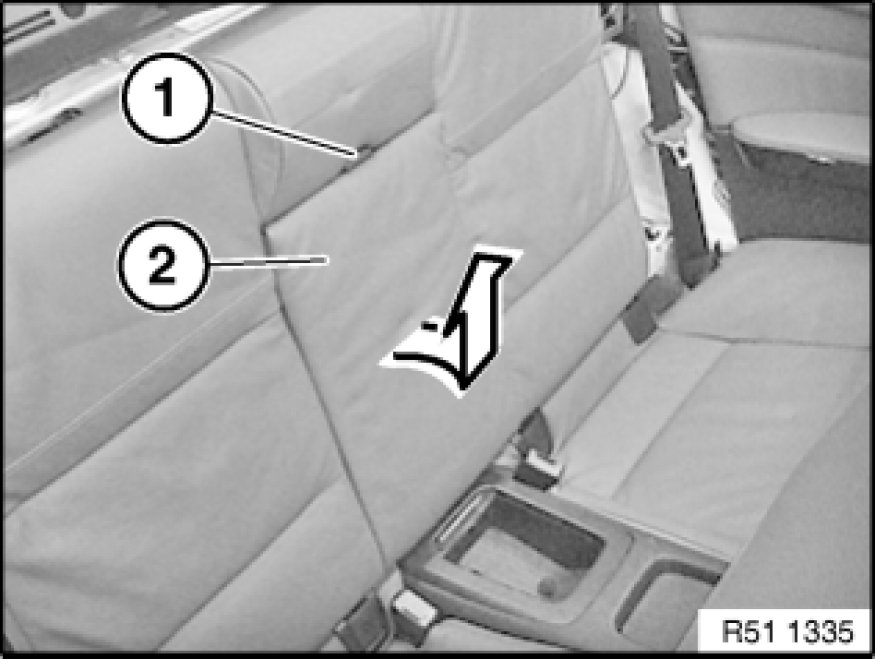

Press lock (1) and remove filler element (2).

Installation:
Make sure filler element is correctly inserted in rear seat backrest.
