Replacing an Air Cushion for Left or Right Backrest Width adjustment

52 16 055 - Replacing an air cushion for left or right backrest width adjustment





Necessary preliminary tasks:
- Remove rear panel on front seat Removing and Installing/Replacing Rear Panel on Left or Right Front Seat Backrest
- Partially remove backrest cover Replacing Backrest Cover for Left or Right Front Seat

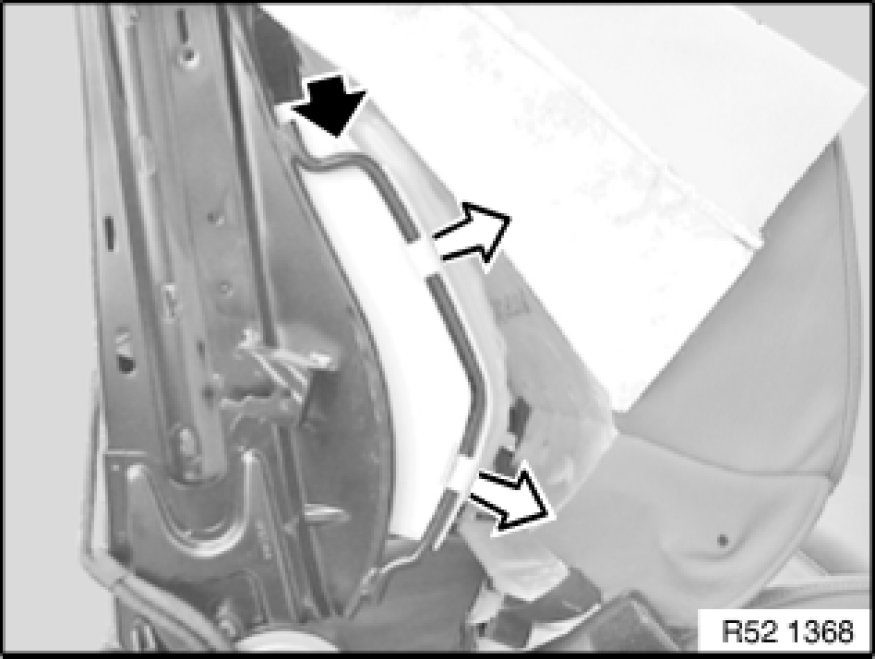

Unclip carrier for backrest width adjustment from backrest frame.

Installation:
Make sure the carrier for backrest width adjustment is fitted correctly on the backrest frame.
Install air hoses without kinks.

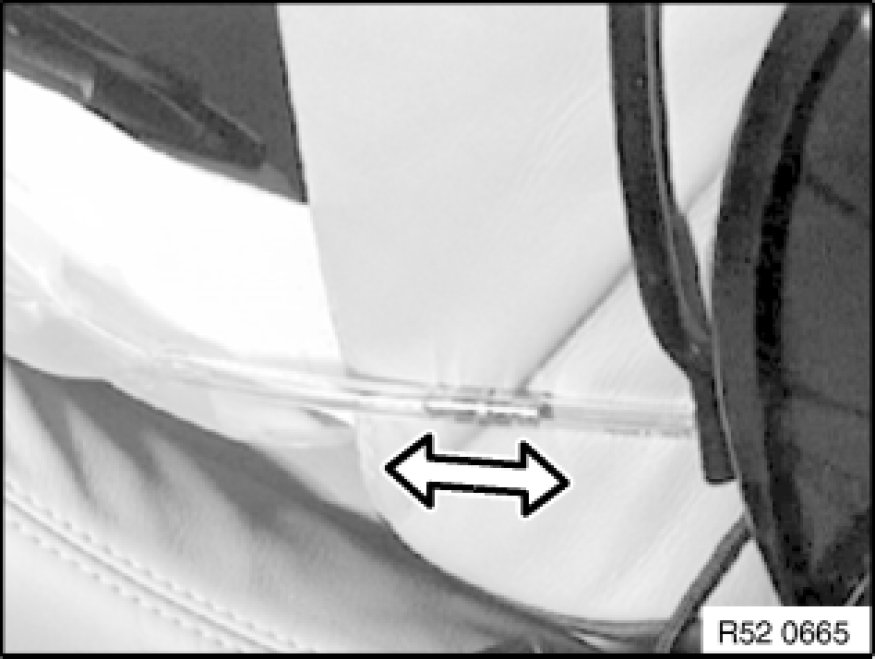

Disconnect air hoses.

Installation:
Adapt length of air hose from new part.
Connect air hoses to brass coupling.
If tight, (carefully) heat up the air hoses slightly.





Note:
Carry out function check Performing Function Check with Adapter Cable (for Seat Repairs).
