54 37 035 Removing and Installing/Replacing Roofliner for Roof Shell at Front

54 37 035 - Removing and installing/replacing roofliner for roof shell at front





Special tools required:
- 51 0 310 51 0 310 Clip Release Tool





Move convertible top into service position.

Move convertible top so that angle of hinges is not ≤90°.

Important!
Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

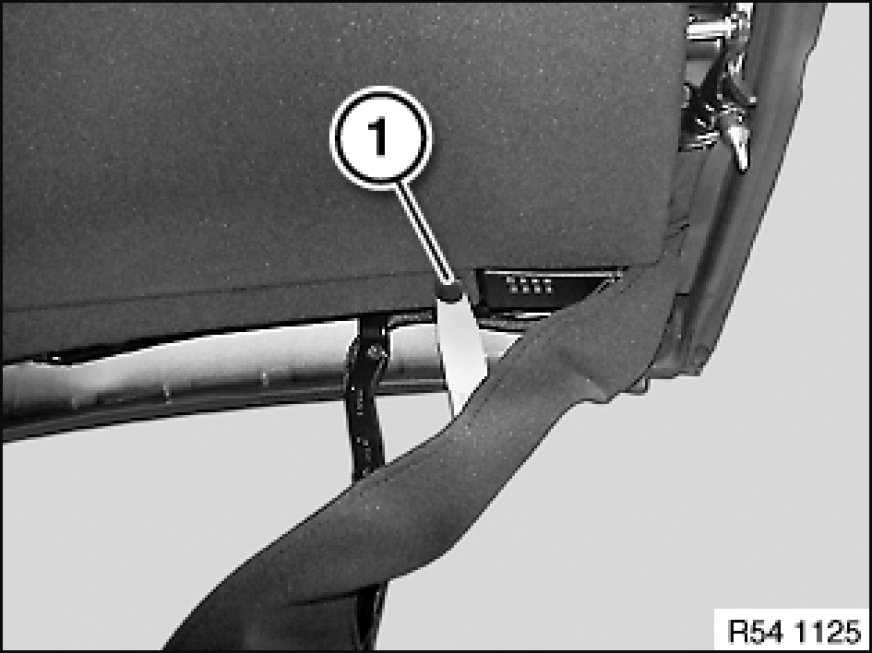

Support rear roof shell to convertible top cover with suitable auxiliary material.
Auxiliary material must lie over wide area and if possible over entire length.

Rear roof shell is supported by auxiliary material on convertible top cover.

Roof shells block each other.

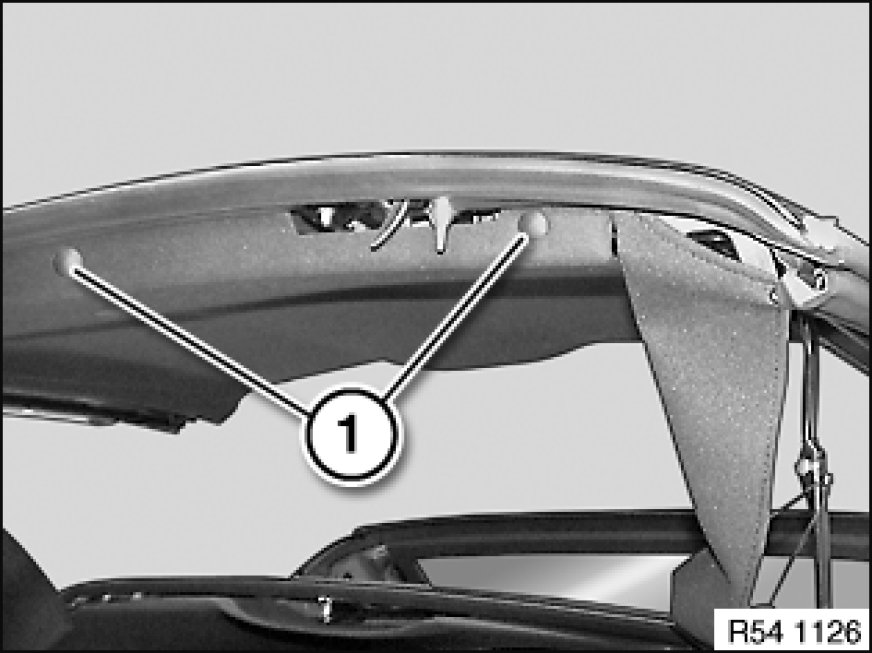

Lever out left and right clips (1).

Installation Note:
If necessary, replace faulty clips.

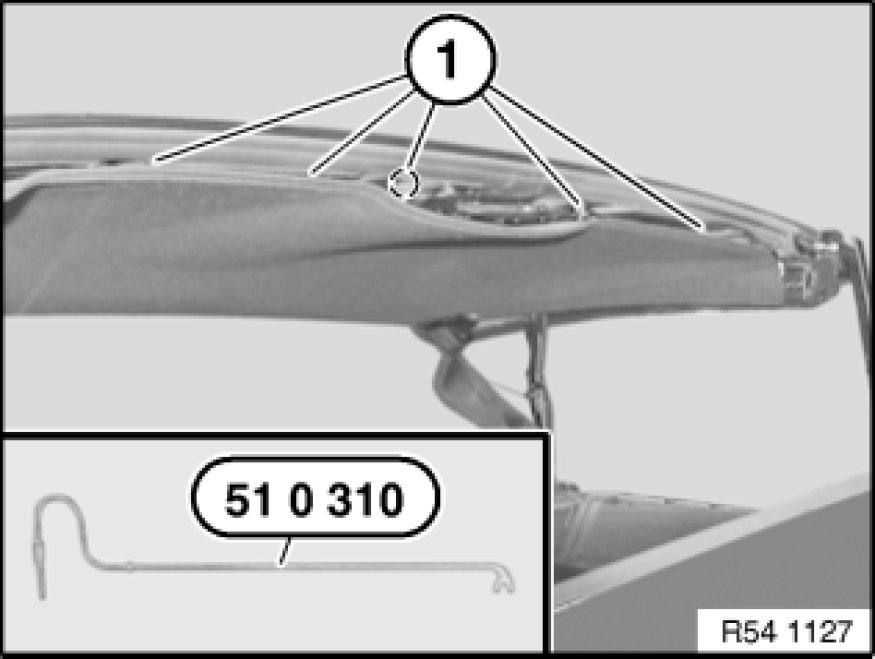

Lever all clips out of roofliner at front.

Installation Note:
If necessary, replace faulty clips.

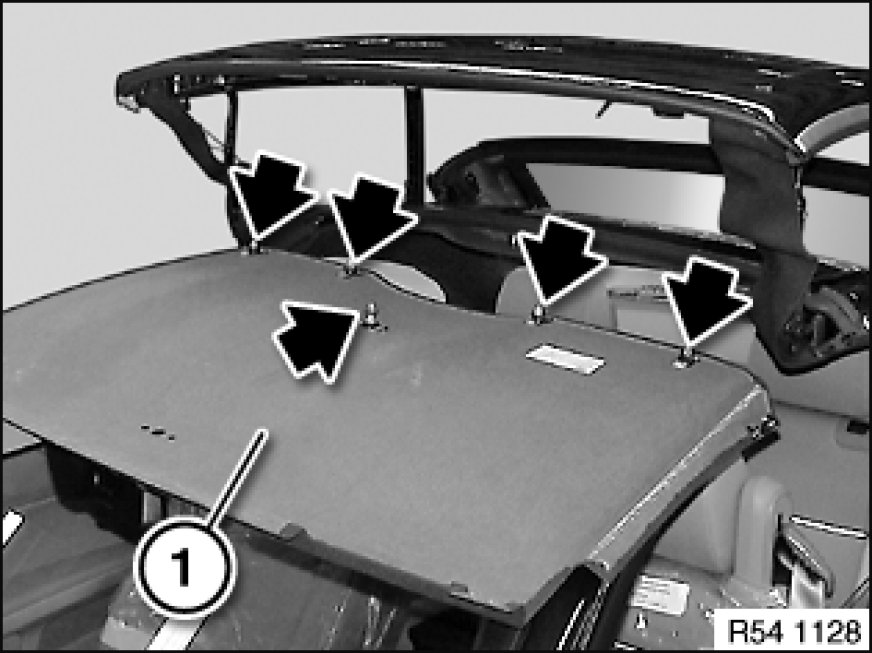

Unclip roofliner at rear left and right from roof shell.

Installation Note:
Retainers (1) must not be damaged and must be pre-installed.

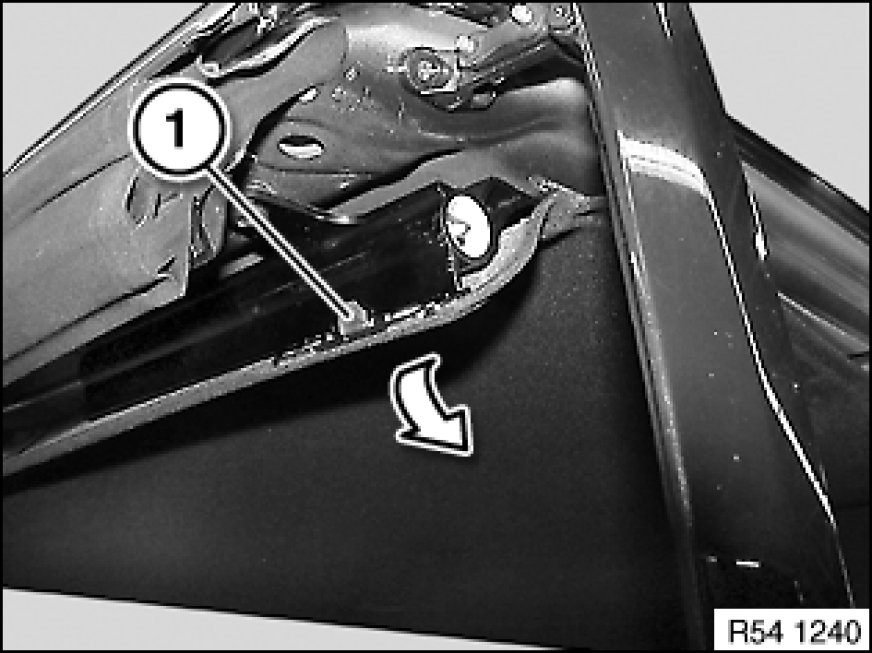

Unclip roofliner in rear area with special tool 51 0 310 51 0 310 Clip Release Tool.

Installation Note:
If necessary, replace faulty clips (1).





Installation Note:
Pre-install clips in roofliner (1).
