51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section)

51 71 038 - Removing and installing/replacing front left or right wheel arch cover (front section)





Necessary preliminary tasks:
- If necessary, remove front wheel 36 10 300 Removing or Installing Front or Rear Wheel





Note:

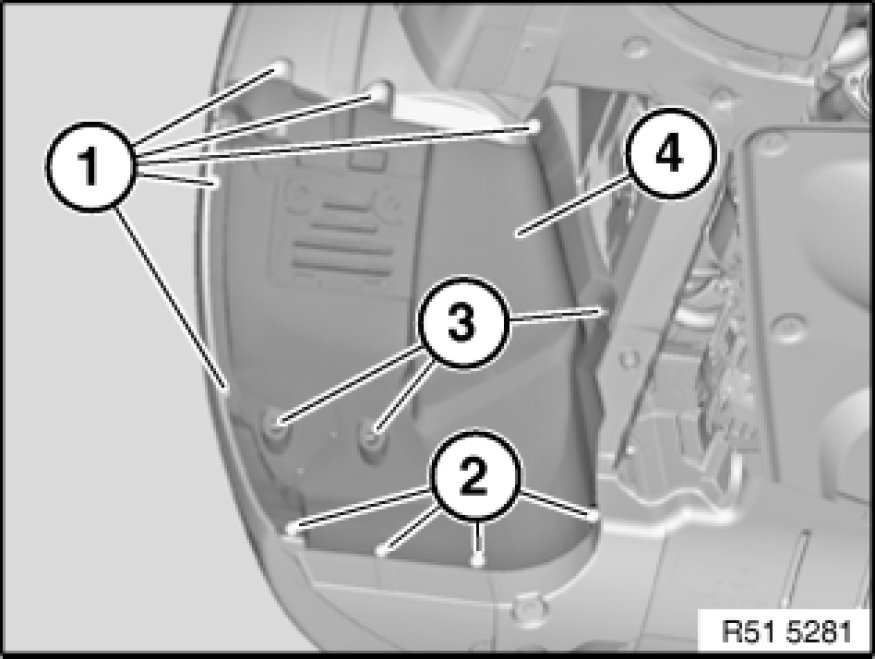

Front axle removed for purposes of clarity.

Release screws (1 and 2).

Release nuts (3) and remove wheel arch cover (4).

Installation:
Ensure wheel arch cover (4) is correctly seated.

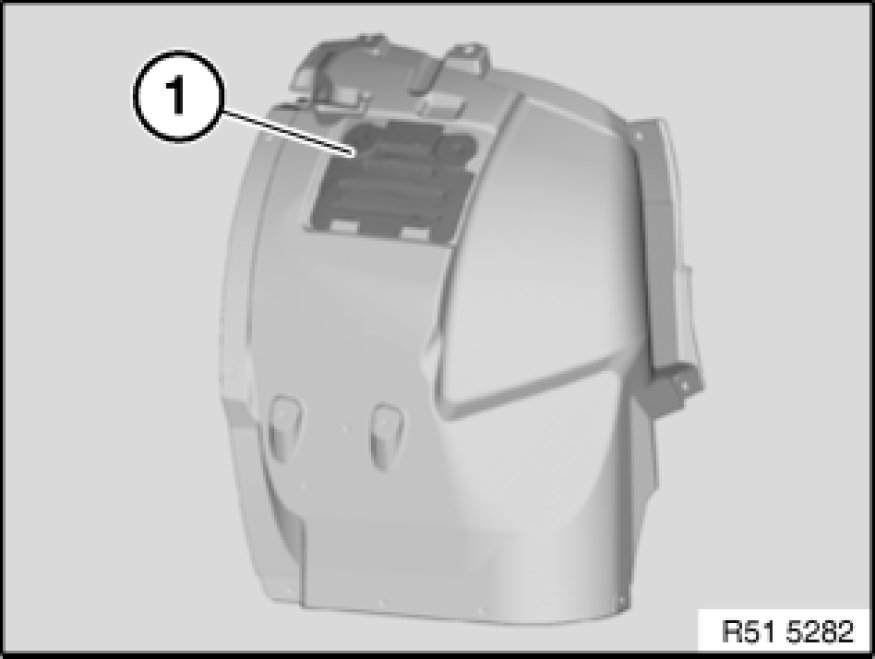

Replacement:
- Modify cover (1)
