51 11 050 Removing and Installing/Replacing Carrier For Front Bumper Trim

51 11 050 - Removing and installing/replacing carrier for front bumper trim





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

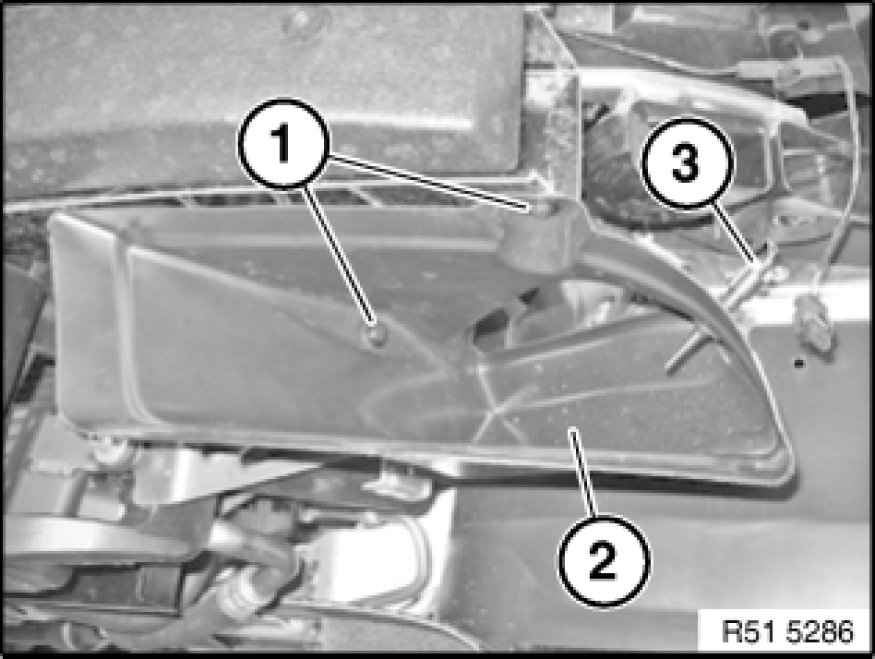

Release screws (1) on cooling air guide (2) on left and right.
Disconnect plug connection (3) on outside temperature sensor.
Remove left cooling air guide (2).

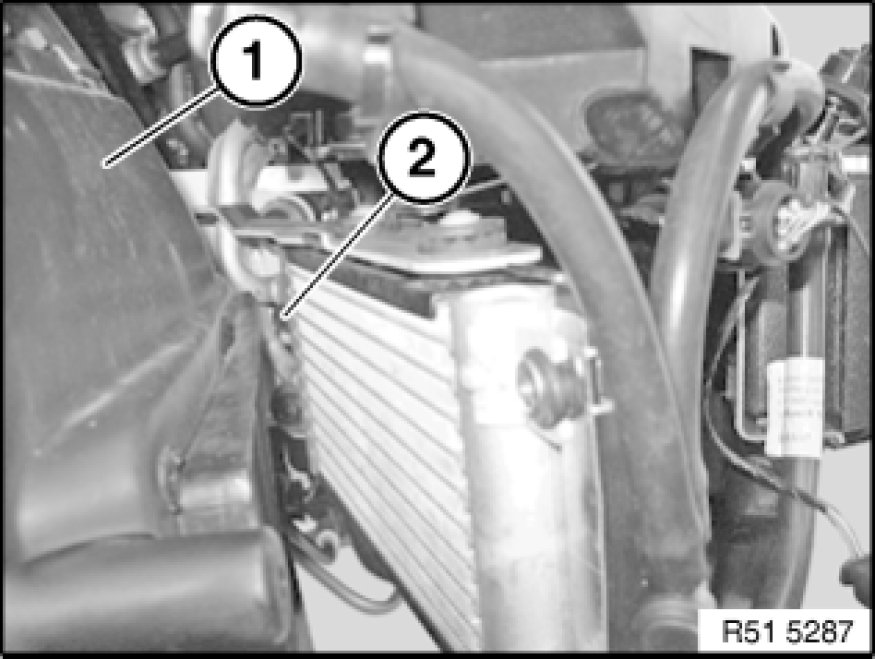

Press right wheel arch cover (1) to one side.
Release screw (2) and remove right cooling air guide.

Installation:
Make sure cooling air guide is installed in correct position.

Note:
The following work step ends here:
"Removing and installing cooling air guide".

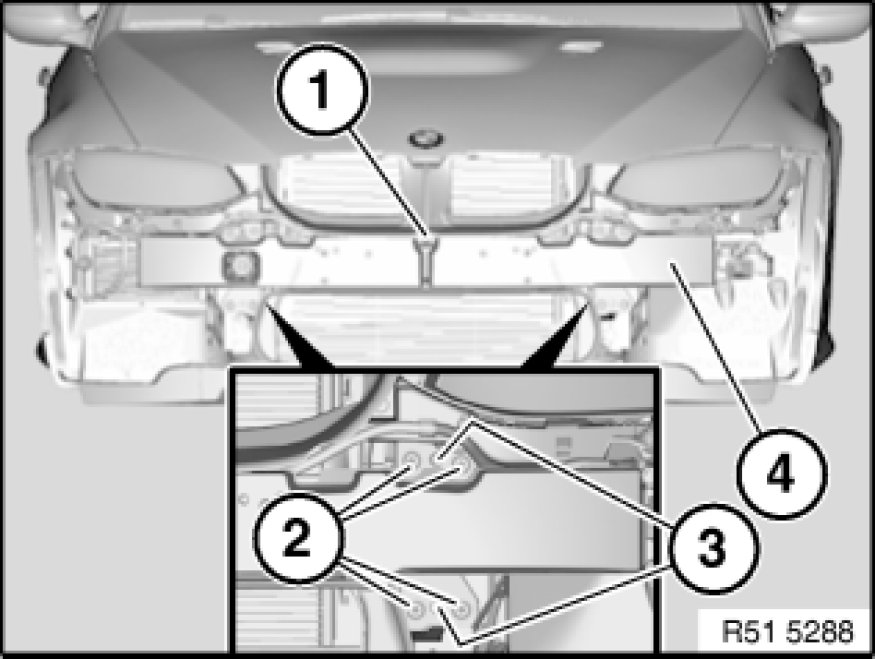

Release screw (1).
Release nuts (2) and blind rivets (3).

Installation:
Blind rivets (3) are not refitted.

If necessary, feed out cable or hose and remove carrier (4).

Tightening torque 51 11 2AZ Specifications.





Replacement:

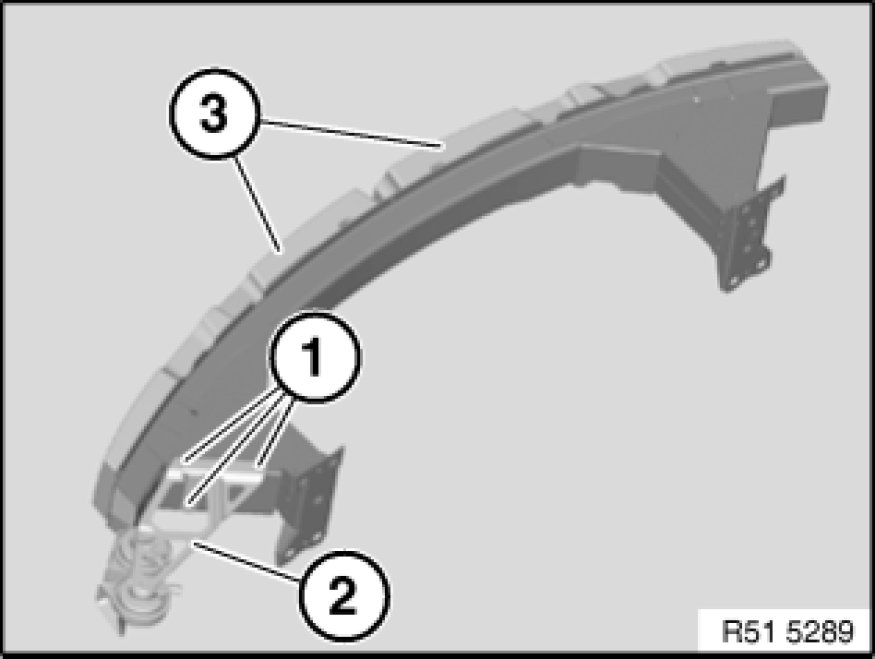

Release screws (1) and convert fanfare horn holder (2).
Modify impact absorber (3) on left and right.
