65 12 230 Removing and Installing/Replacing DAB Tuner

65 12 230 Removing And Installing/replacing DAB Tuner







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Follow instructions for handling optical fibres.







Necessary preliminary tasks:
- Disconnect battery negative lead
- Remove luggage compartment floor trim

E93:
- Remove panel for luggage compartment partition







Release screws (1).
Disconnect plug connections (2) and remove bracket with DAB tuner (3).

Installation:
DAB tuner bracket (3) must be inserted in guides.







Replacement:

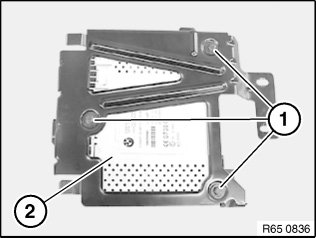

Release screws (1) and remove DAB tuner (2).
