Lowerable Hardtop (CTM Convertible Top Module)

Positions Of The Hardtop
There are a total of 14 sensors for the retractable hardtop (9 Hall sensors and 5 micro-switches). These sensors detect the different positions on closing and/or opening the hardtop. To pinpoint faults, it must be known in which intermediate position the hardtop comes to a standstill. This can be used to conclude what the fault is.

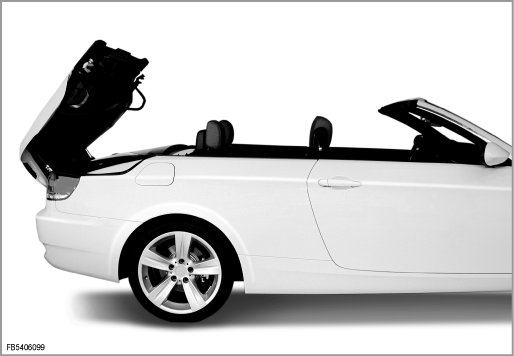

1. Hardtop opened and stored in the luggage compartment

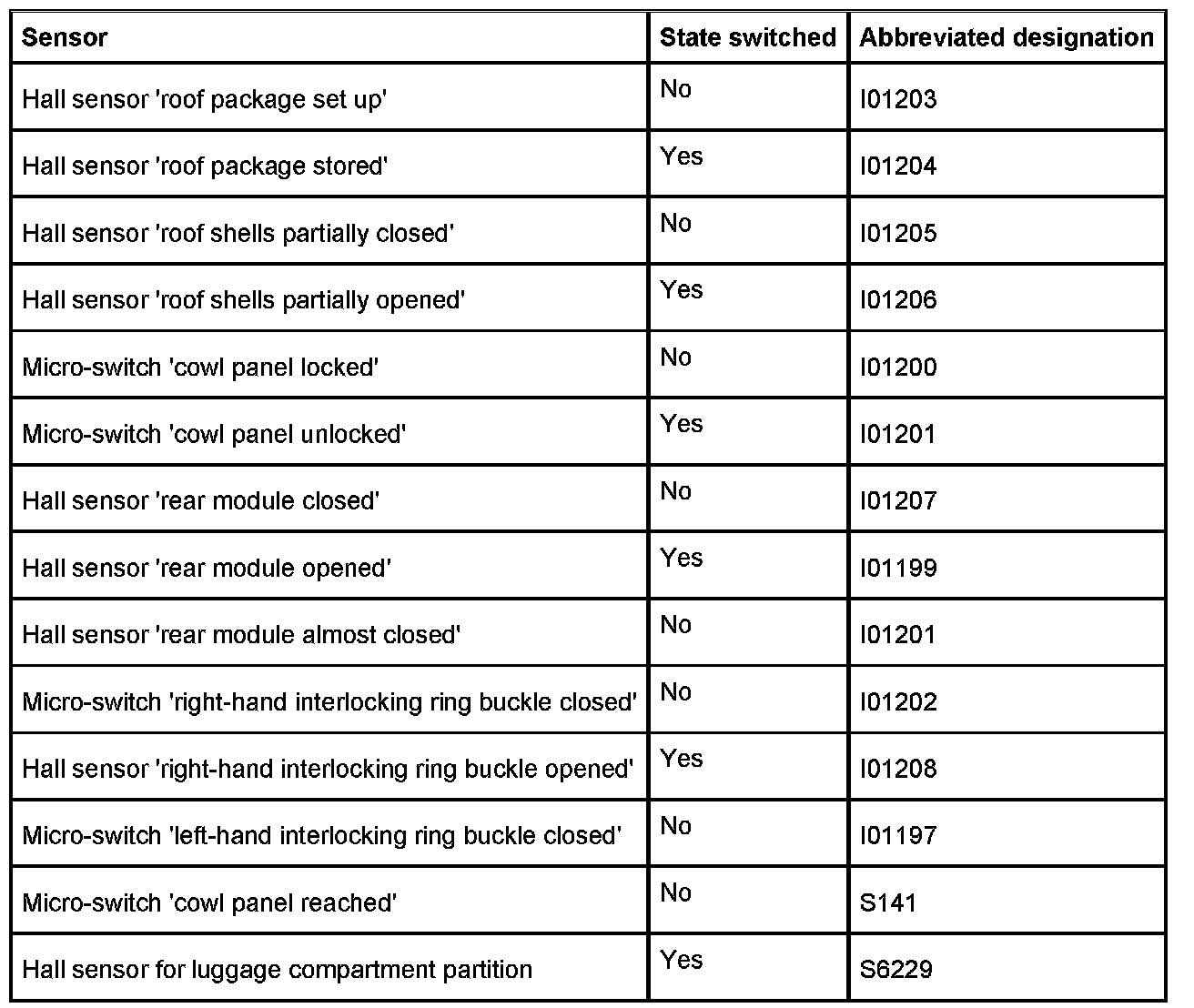

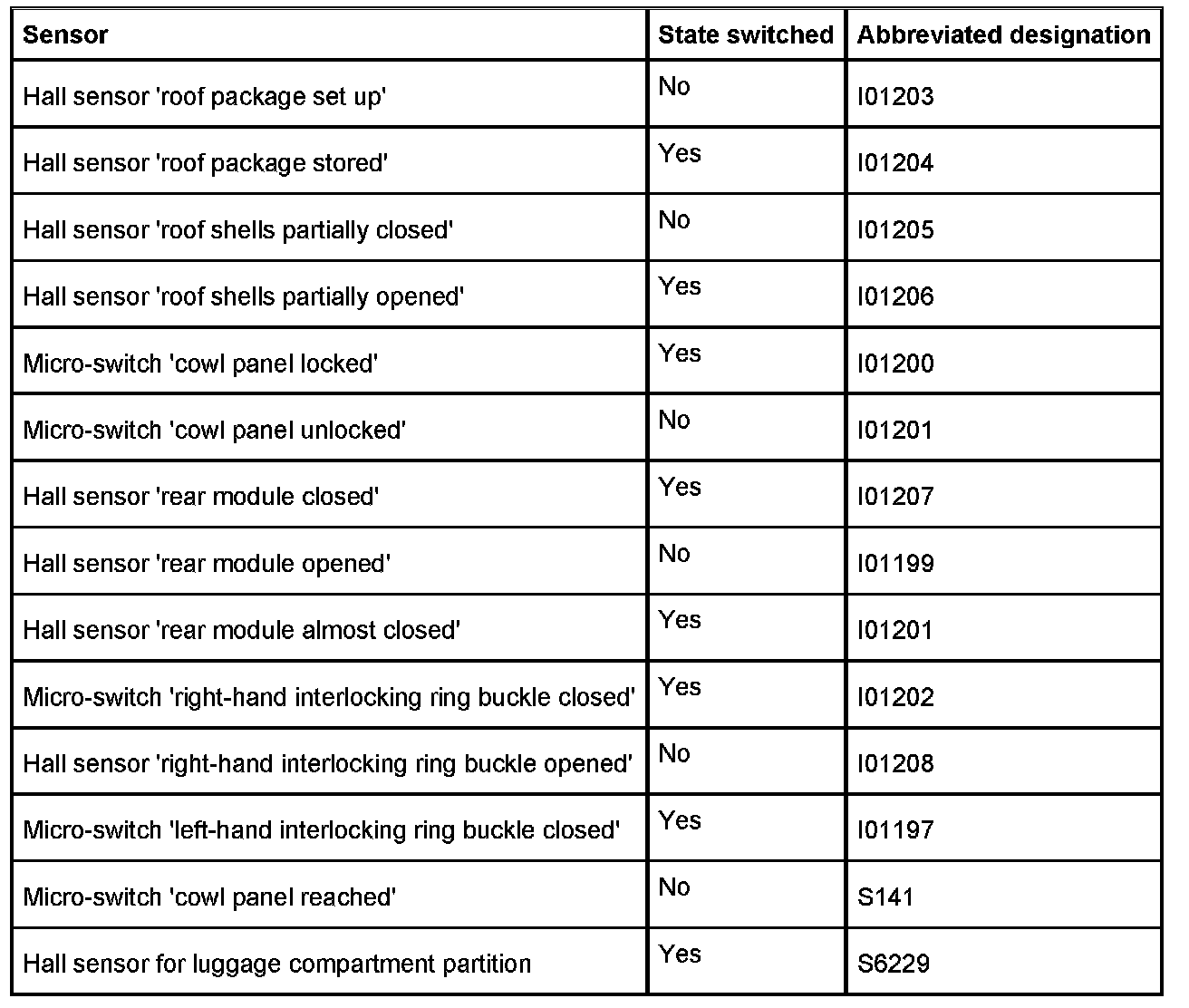

Sensor List:

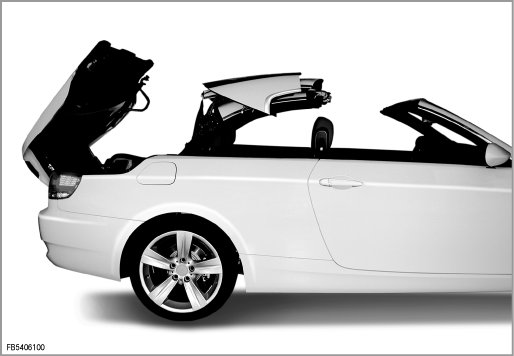

2. Rear module opened

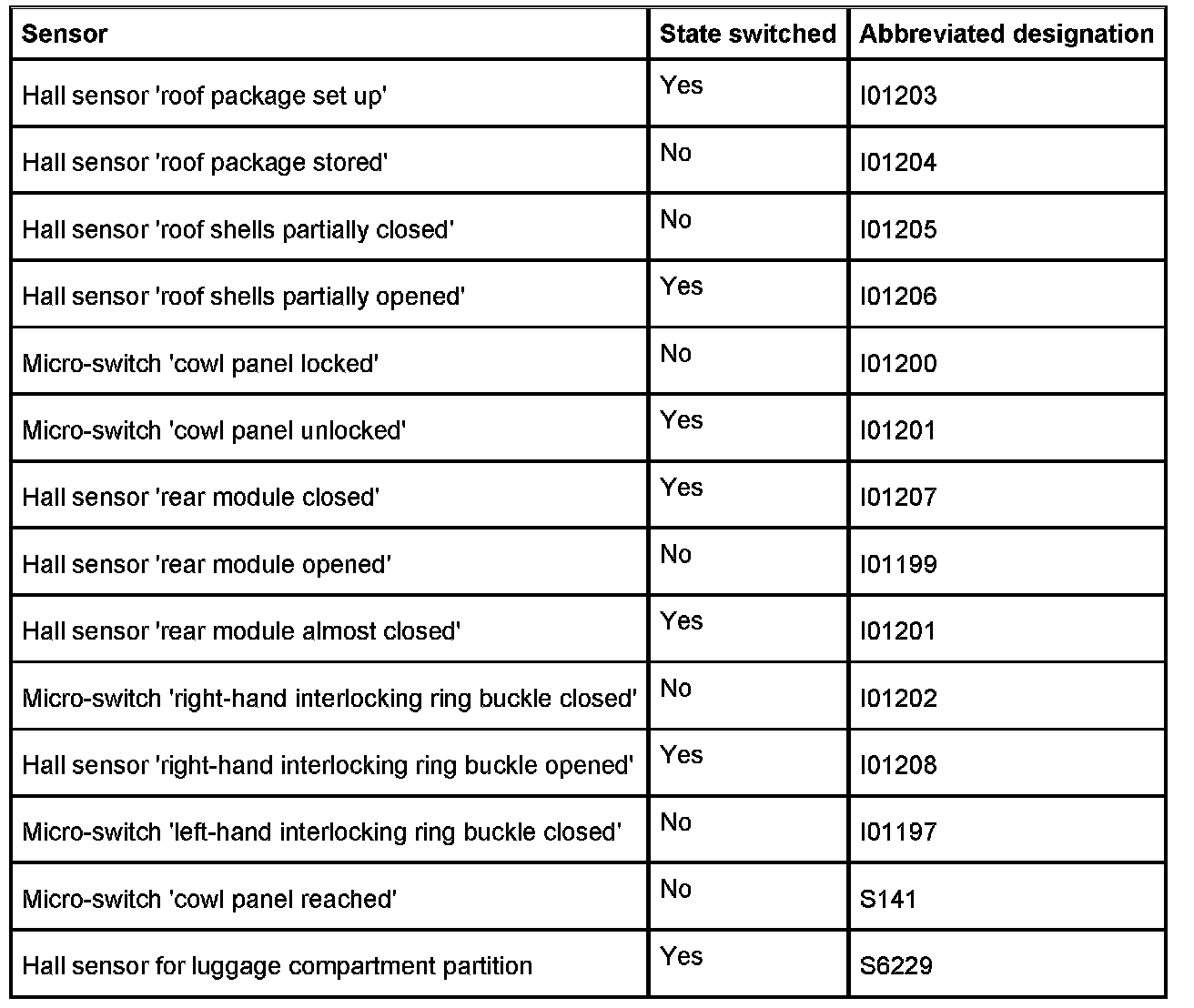

Sensor List:

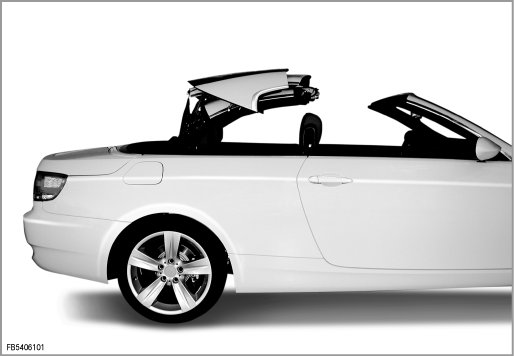

3. Roof shells extended in the package and rear module opened

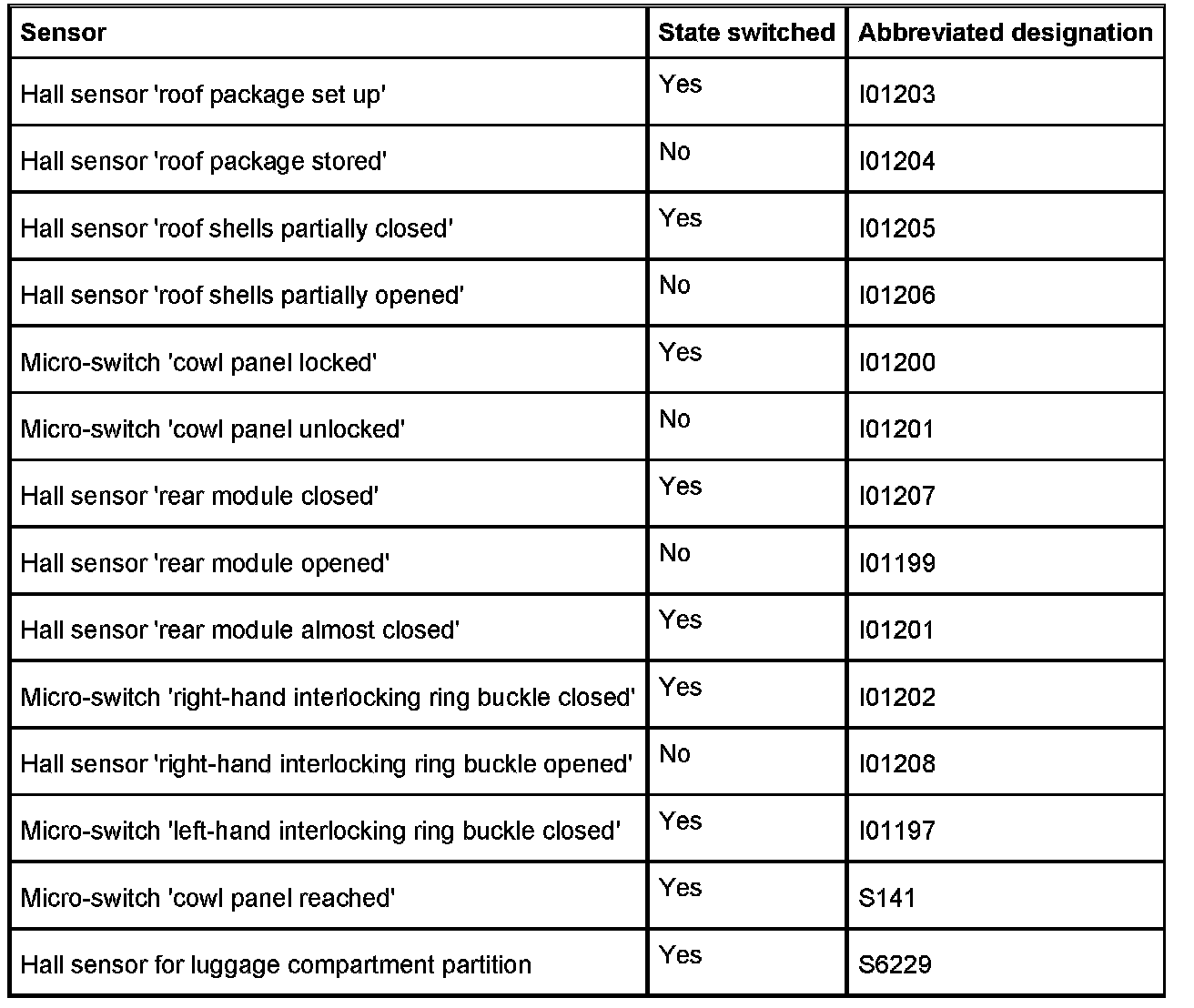

Sensor List:

4. Roof shells extended in the package and rear module closed

Sensor List:

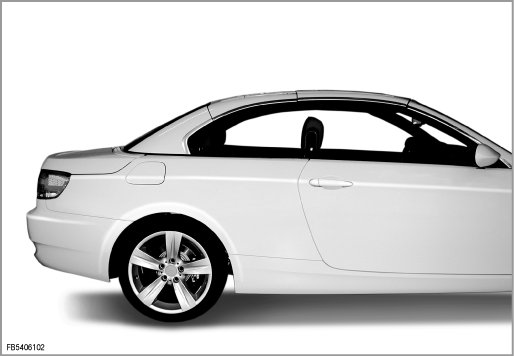

5. Hardtop closed
