65 20 090 Removing and Installing/Replacing Antenna Amplifier




65 20 090 - Removing and installing or replacing aerial amplifier





Necessary preliminary tasks:
- Remove luggage compartment trim on side panel

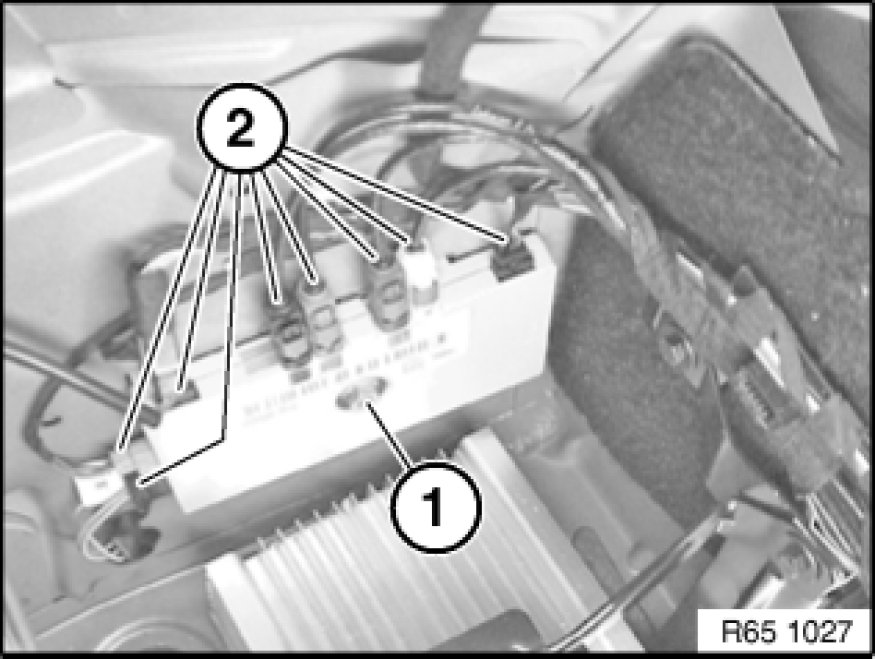

Release screw (1).
Disconnect plug connections (2) and remove antenna amplifier.
