Home >> BMW >> 2009 >> 750i (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Specifications >> Mechanical Specifications >> Technical Data

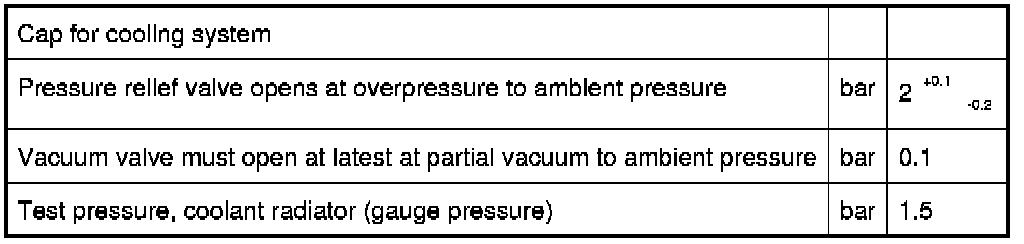

Technical Data




17 11 Radiator and Mounting Parts F01 / F02 / N63
