Sunroof / Moonroof Module



A21 Roof Functions Module, High Variant

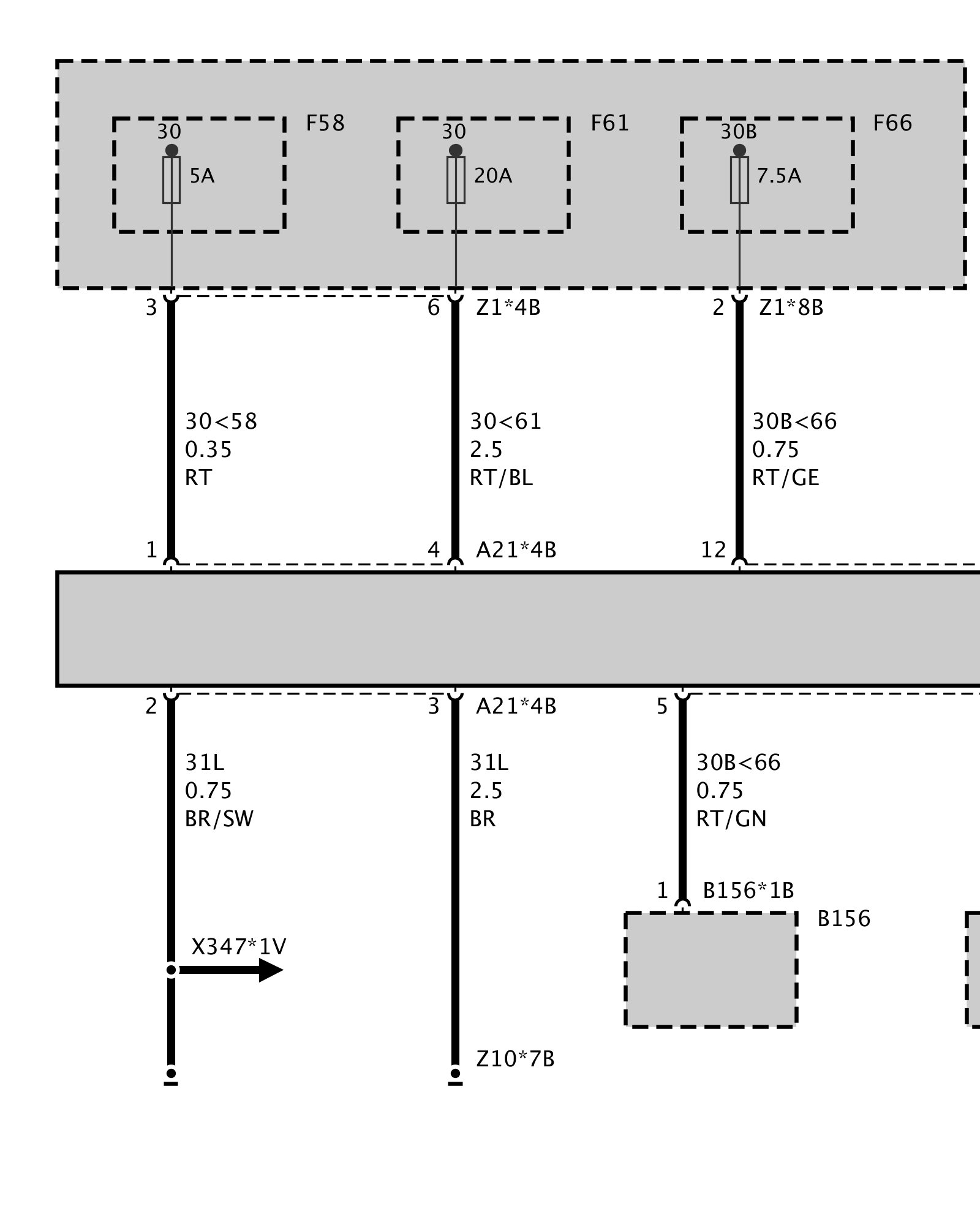

Part 1:

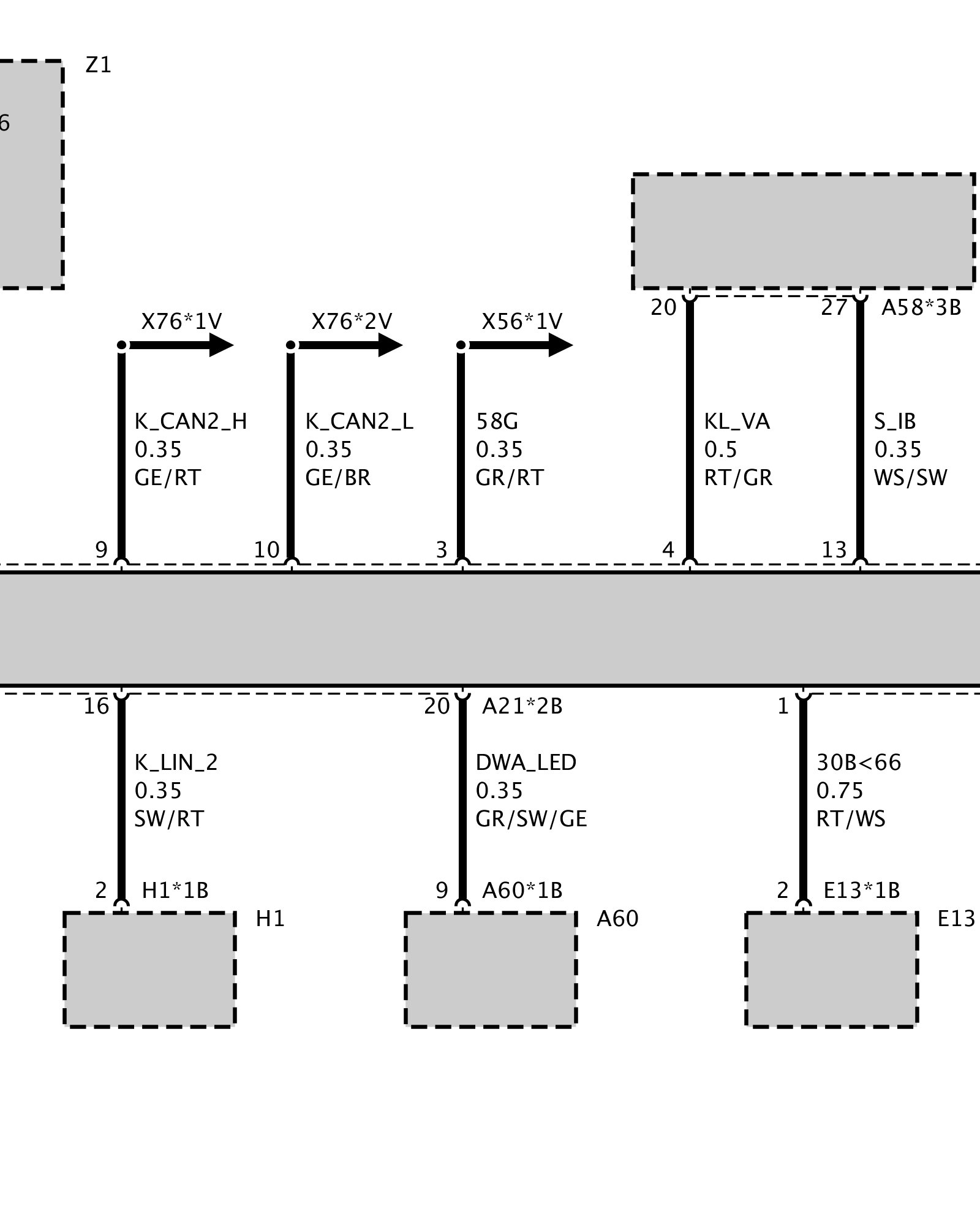

Part 2:

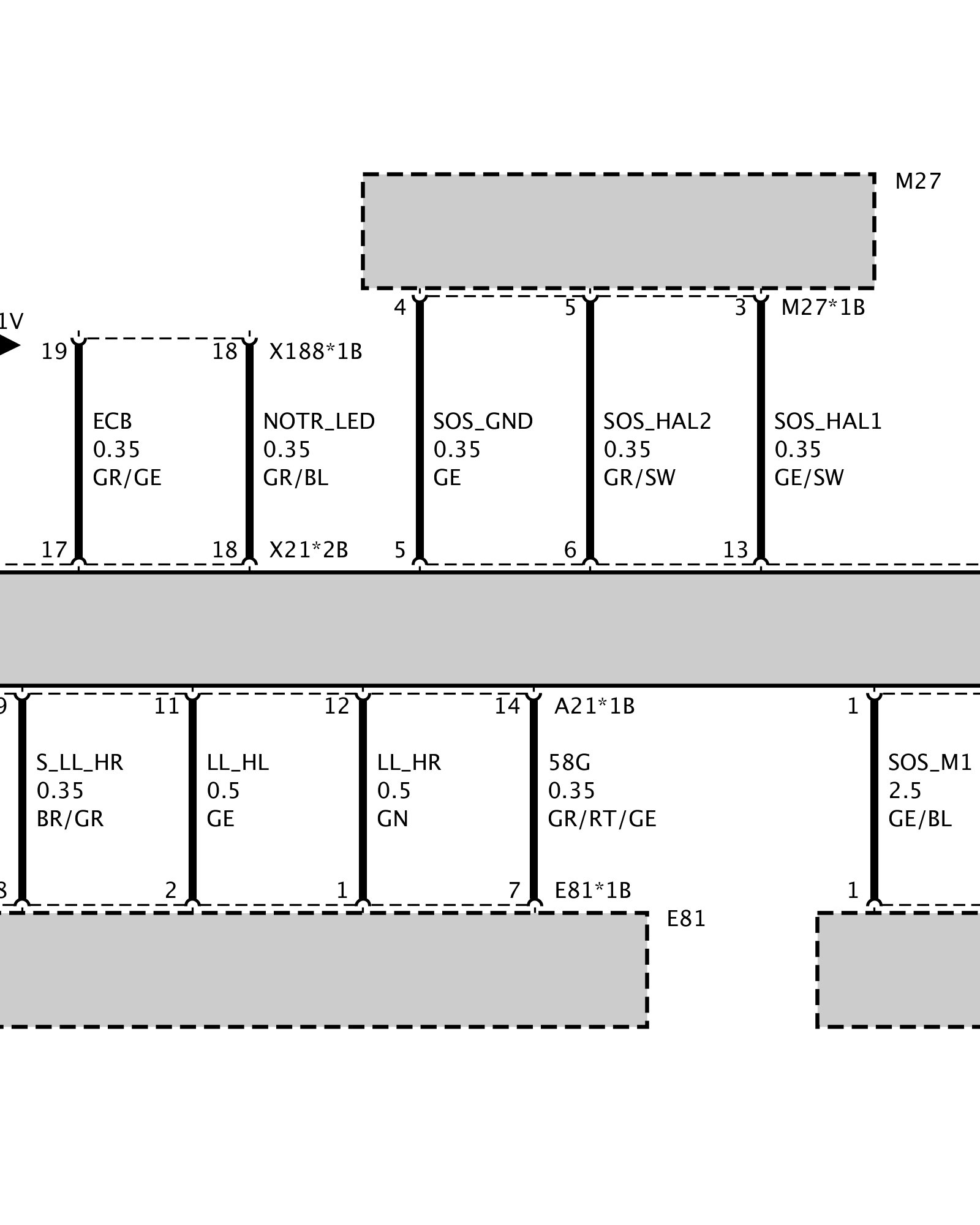

Part 3:

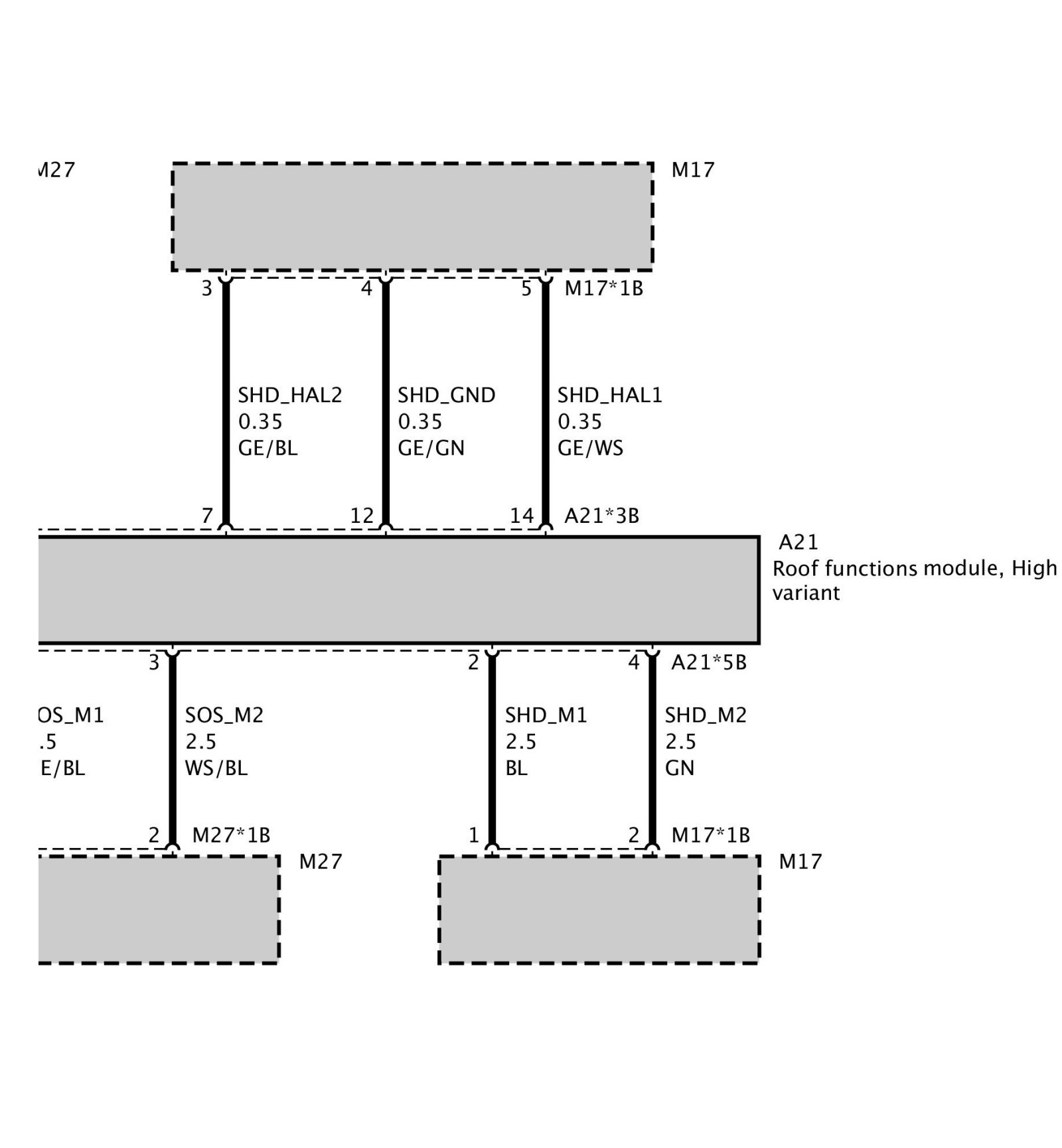

Part 4:

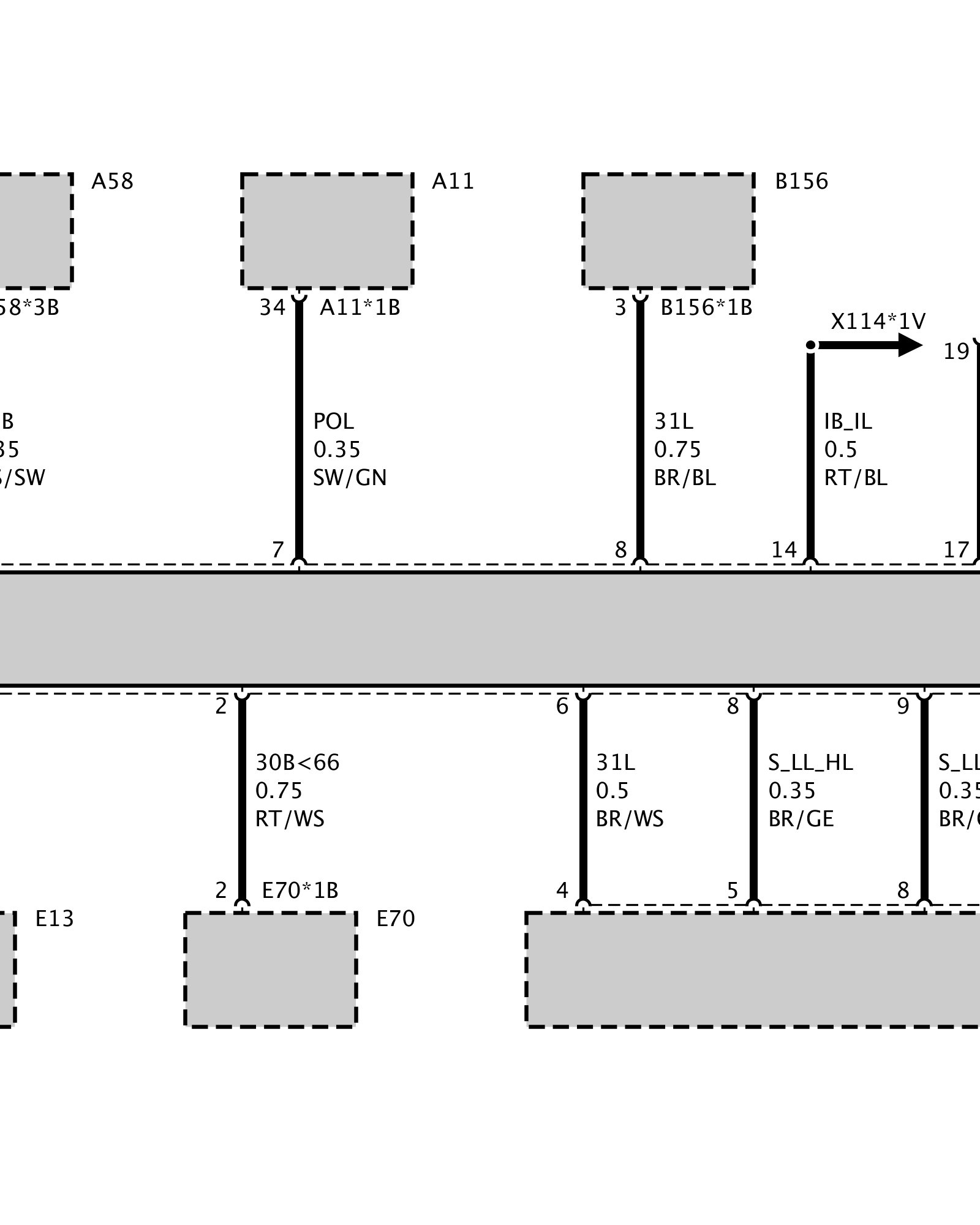

Part 5:
