X123*1V No Adapter

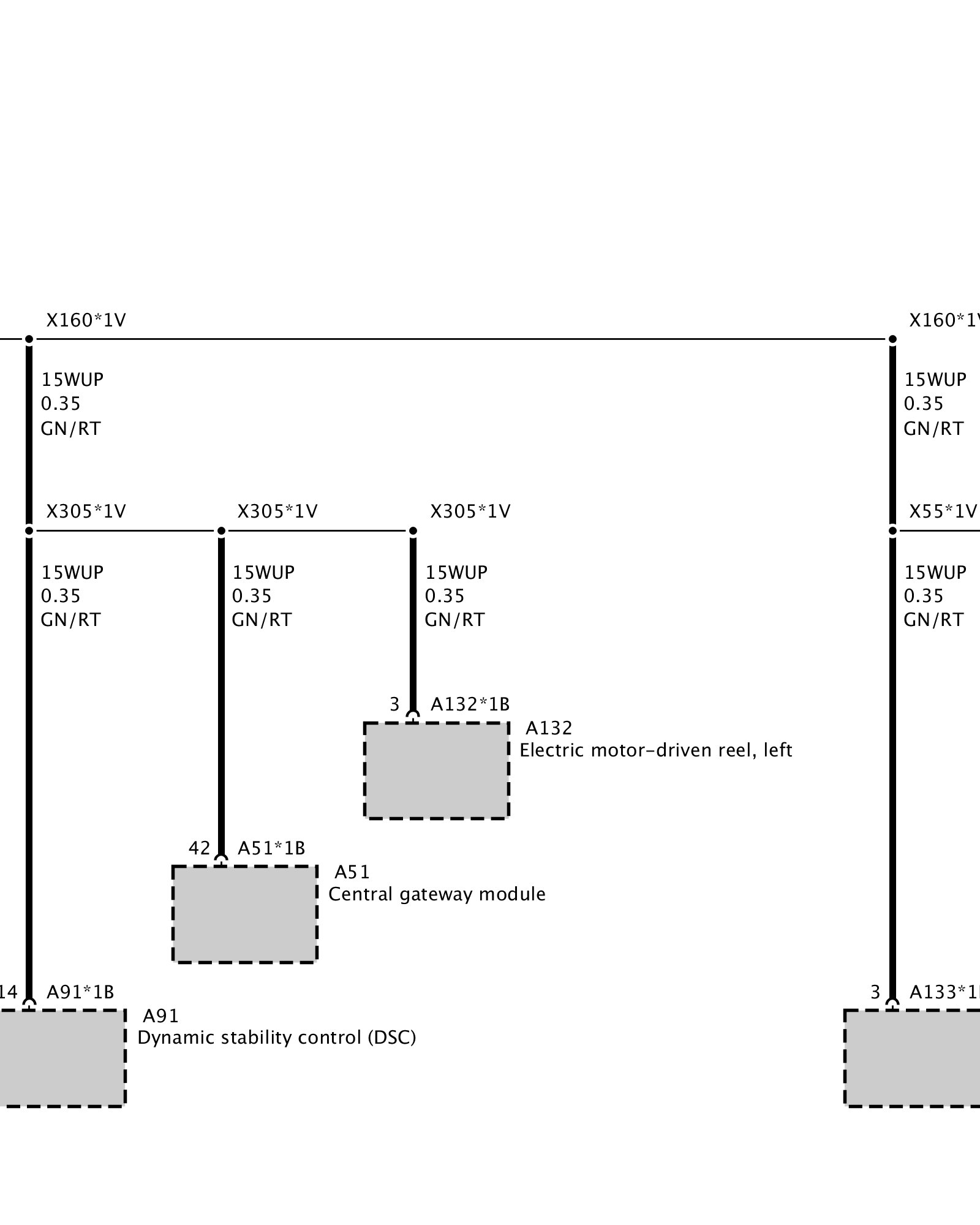

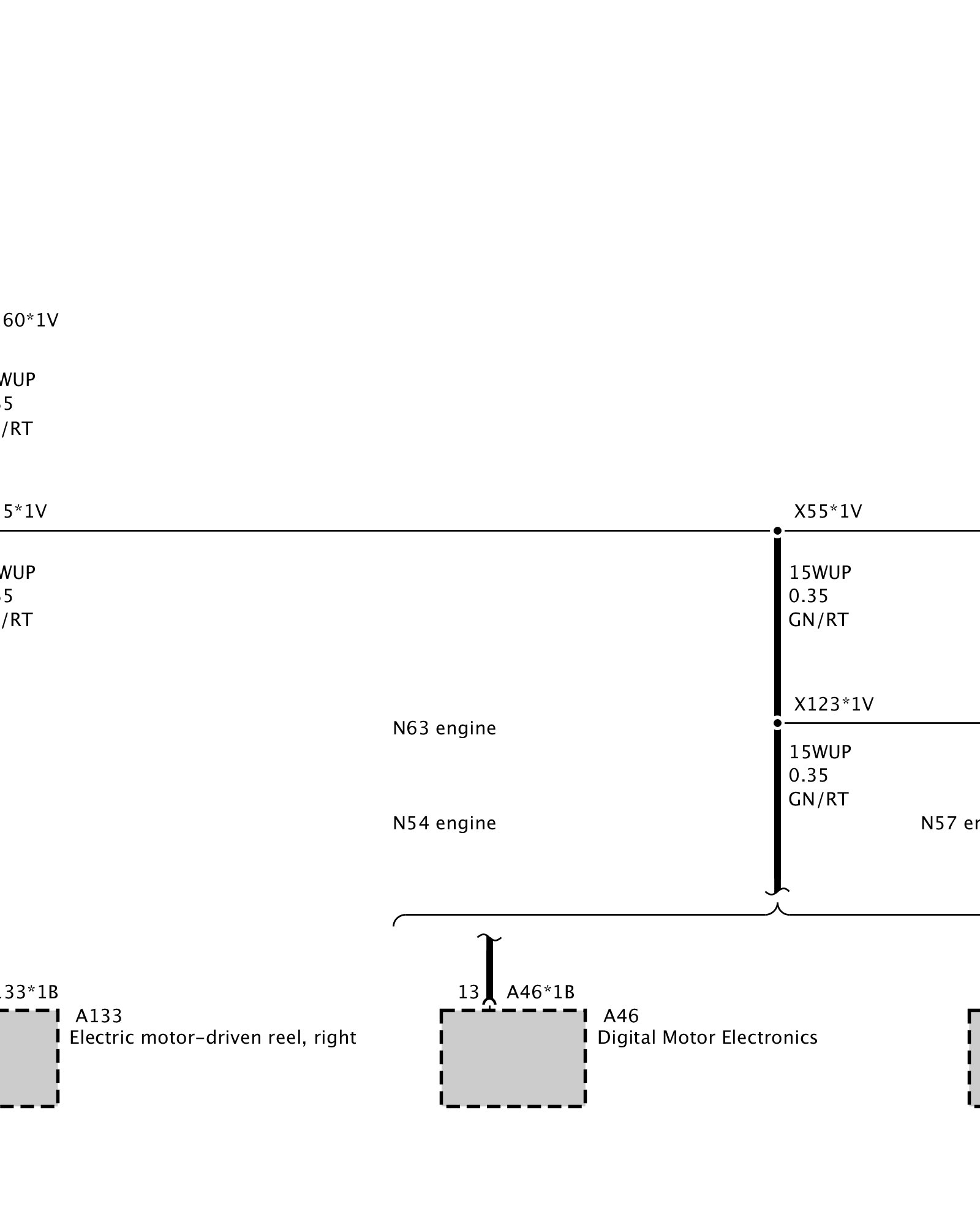

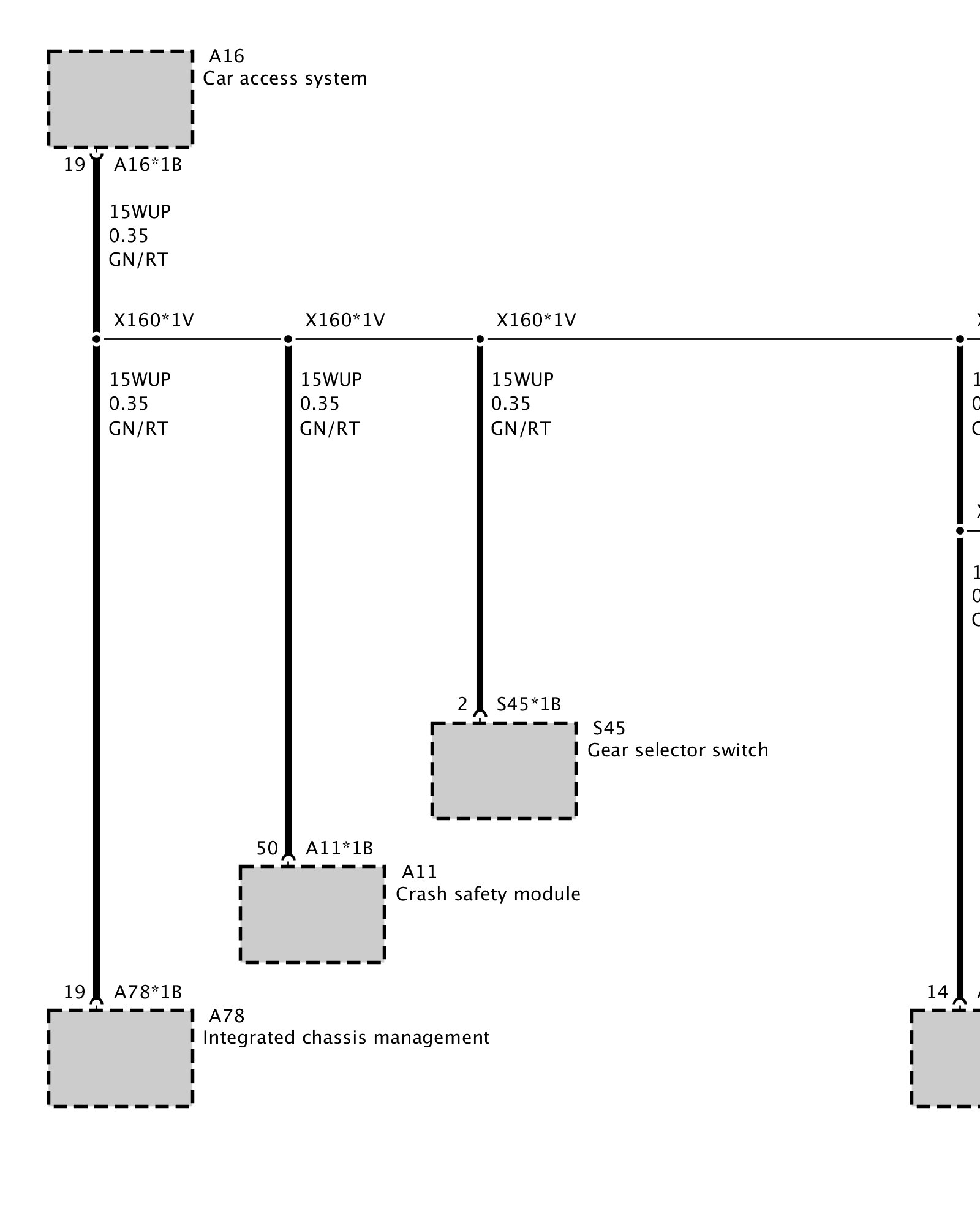

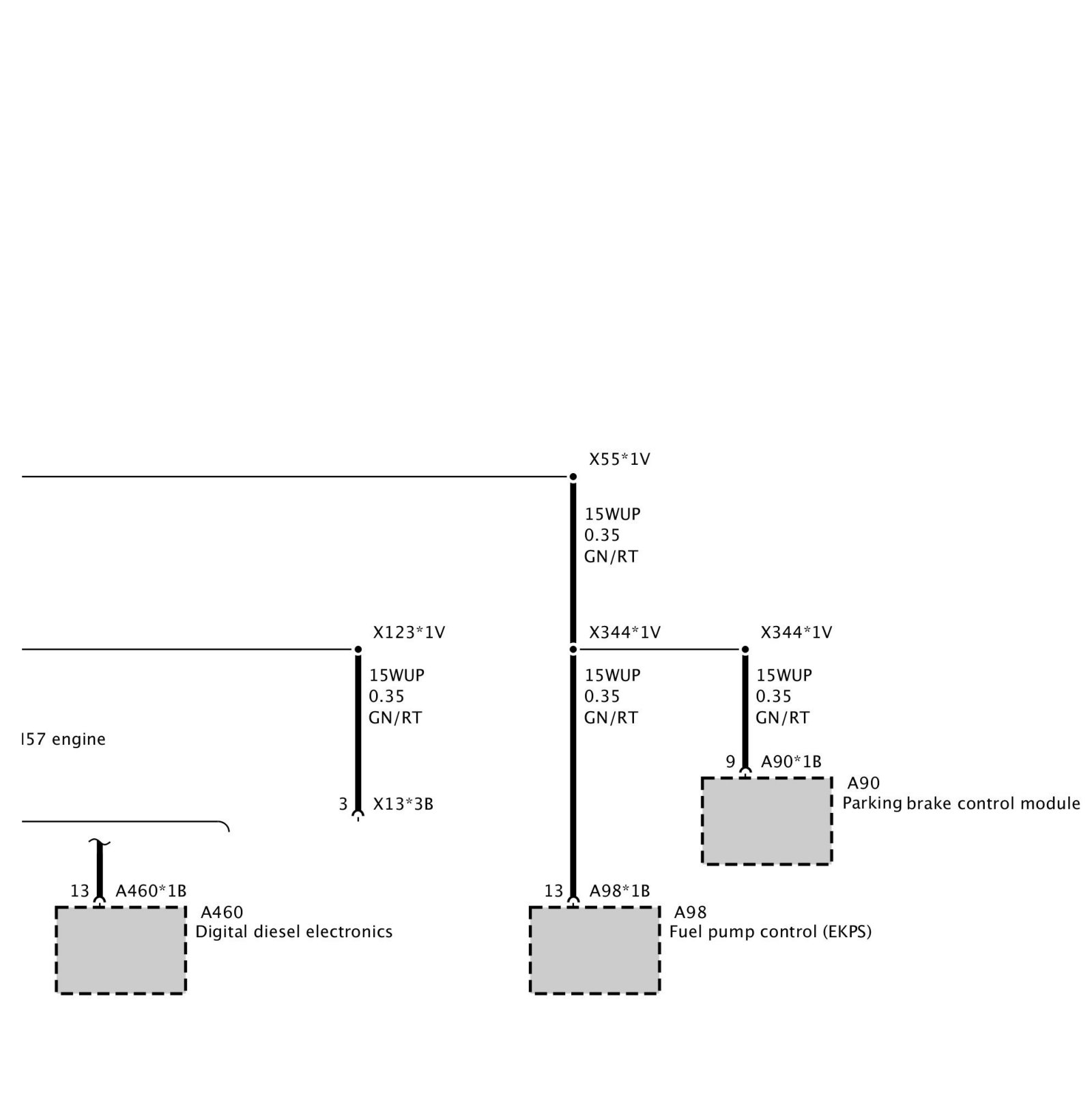

Connector X55*1V, X123*1V, X160*1V, X305*1V, X344*1V


Part 1:




Part 2:




Part 3:




Part 4:
