61 35 683 Replacing Optics For Rain/Light Solar Sensor (Up to 03/2009)

61 35 683 Replacing Optics For Rain/Light Solar Sensor (Up To 03/2009)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove rain/light solar sensor

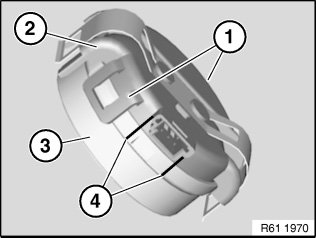

Carefully unlock latch mechanisms (1) of rain/light solar sensor (2).
Remove optics for rain/light solar sensor (3).

Installation note:
Detach protective cover from new optics for rain/light solar sensor.
Latch mechanisms (1) of rain/light solar sensor (2) must not be damaged or missing.
Observe laser marking (4) of fitting aid.







NOTE:
- Encoding is automatically performed by JBBFE.
- Carry out initialisation to calibrate the rain sensor to the windscreen.
