Picture Position

Picture Position

The height of the picture position can also be adapted by the customer using the menu in the Central Information Display.

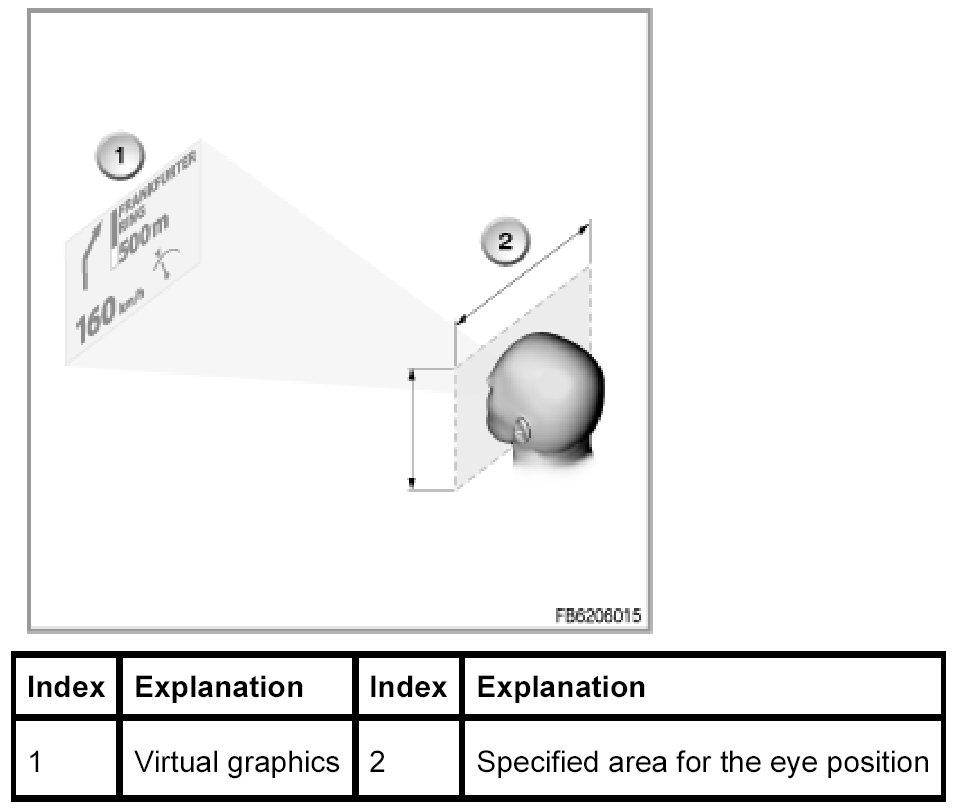

The following illustration shows the specified area for the eye position.







Before setting the Head-Up Display image, an area in which the setting is to be made must be selected.

There are three areas:
1. Encoding area (0 set of settings)
2. Plant (factory settings)
3. Service (service settings)

The encoding area shows the Head-Up Display image the way it was coded and all stored image settings are lost. Here, the setting starts at zero.

If the factory settings are selected, the settings last made in the plant are displayed and these settings can then be adopted or refined.

If the service settings are selected, the settings last made in service are displayed and these settings can then be adopted or refined.

Image position setting

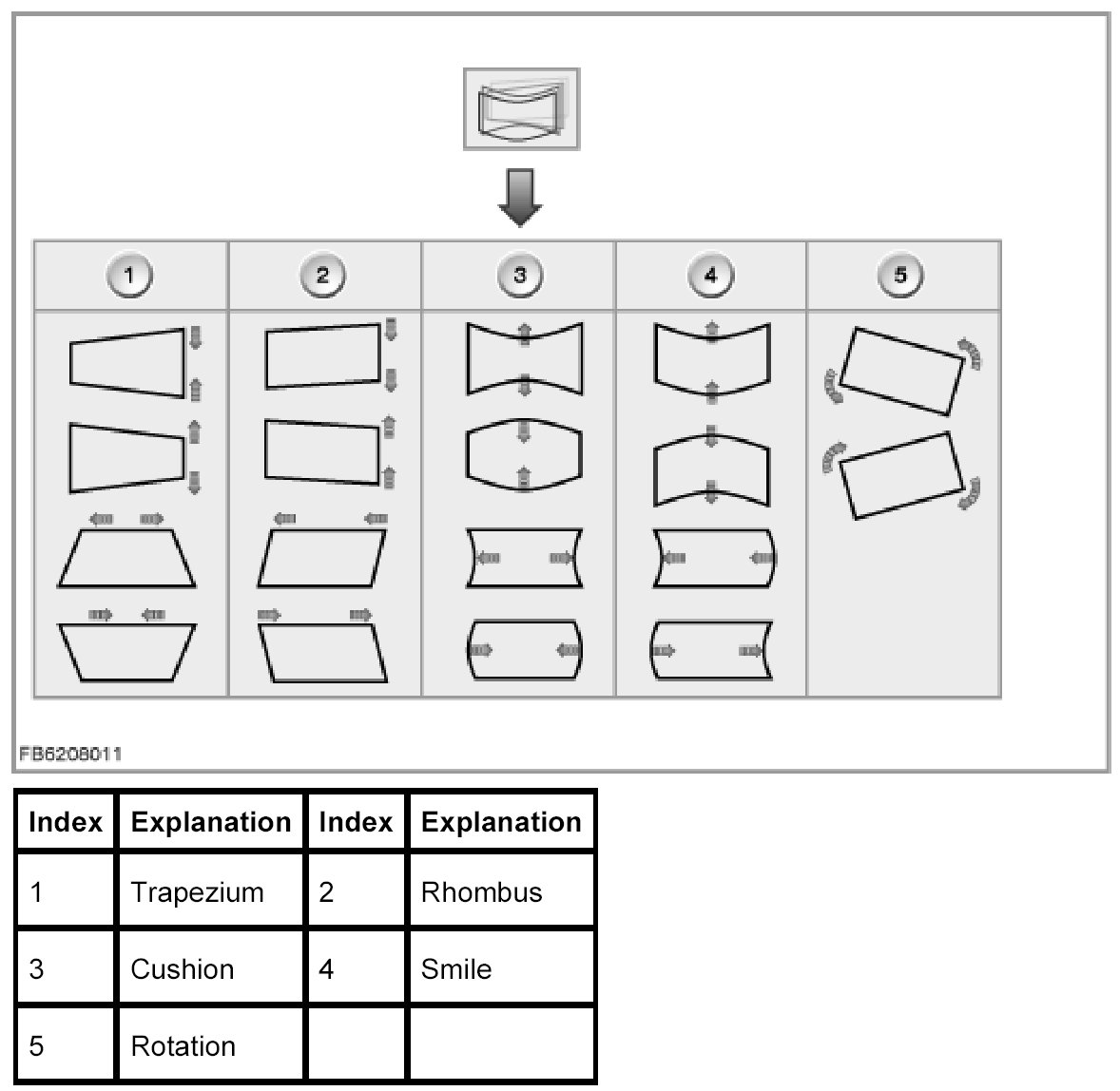

The following illustration shows the range of adjustment with the BMW diagnosis system. The BMW diagnosis system provides five selection options to adapt the Head-Up Display image.
