Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F128

F128

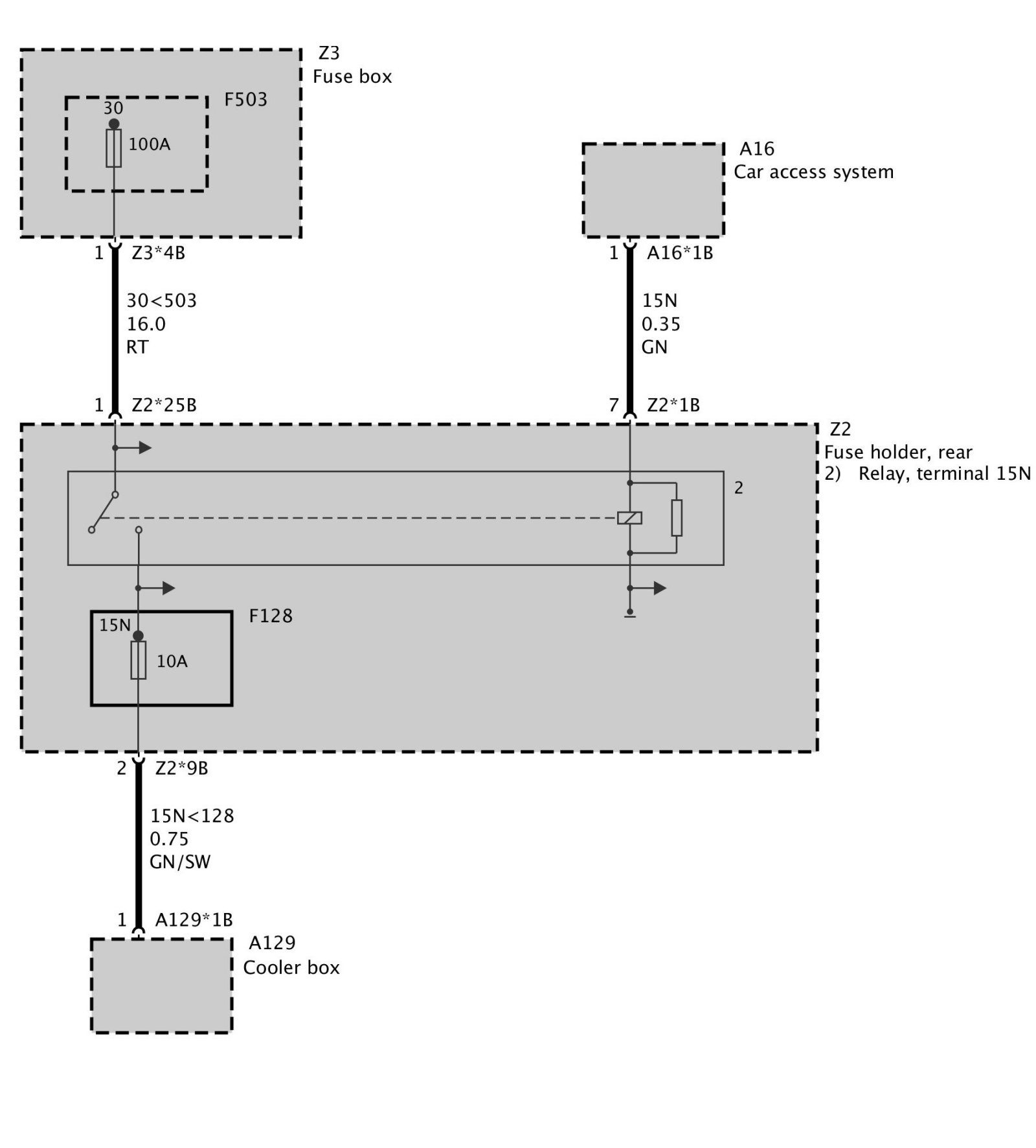

Fuse F128
