A38 Rear Seat Entertainment (RSE Rear-Seat Entertainment System, High or As of 09/08 Up to 03/09) or (Rear-Seat Entertainment



A38 Rear Seat Entertainment (RSE Rear-Seat Entertainment System, High Or As Of 09/08 Up To 03/09) Or (Rear-Seat Entertainment System Mid With DVDC DVD Changer)

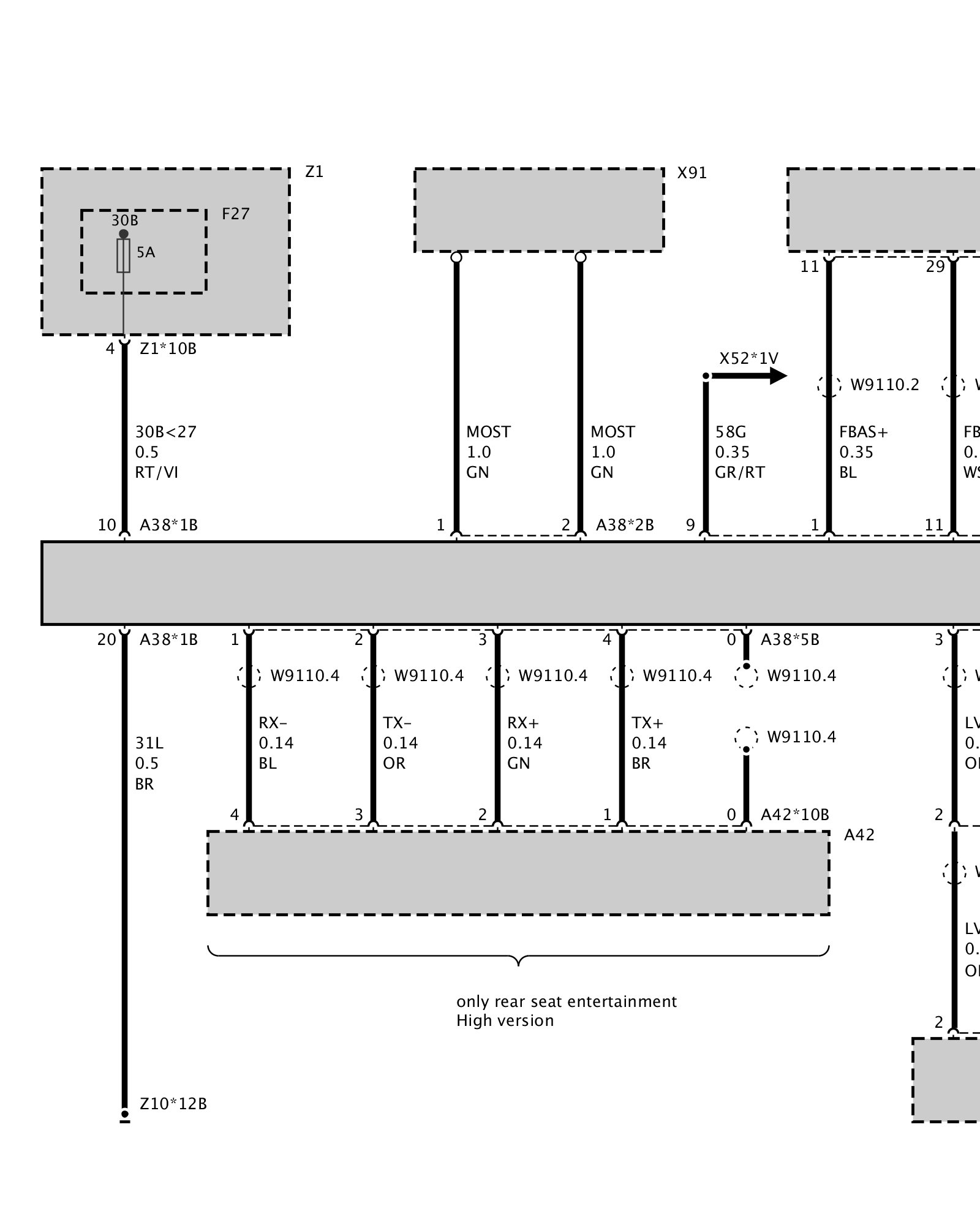

Part 1:

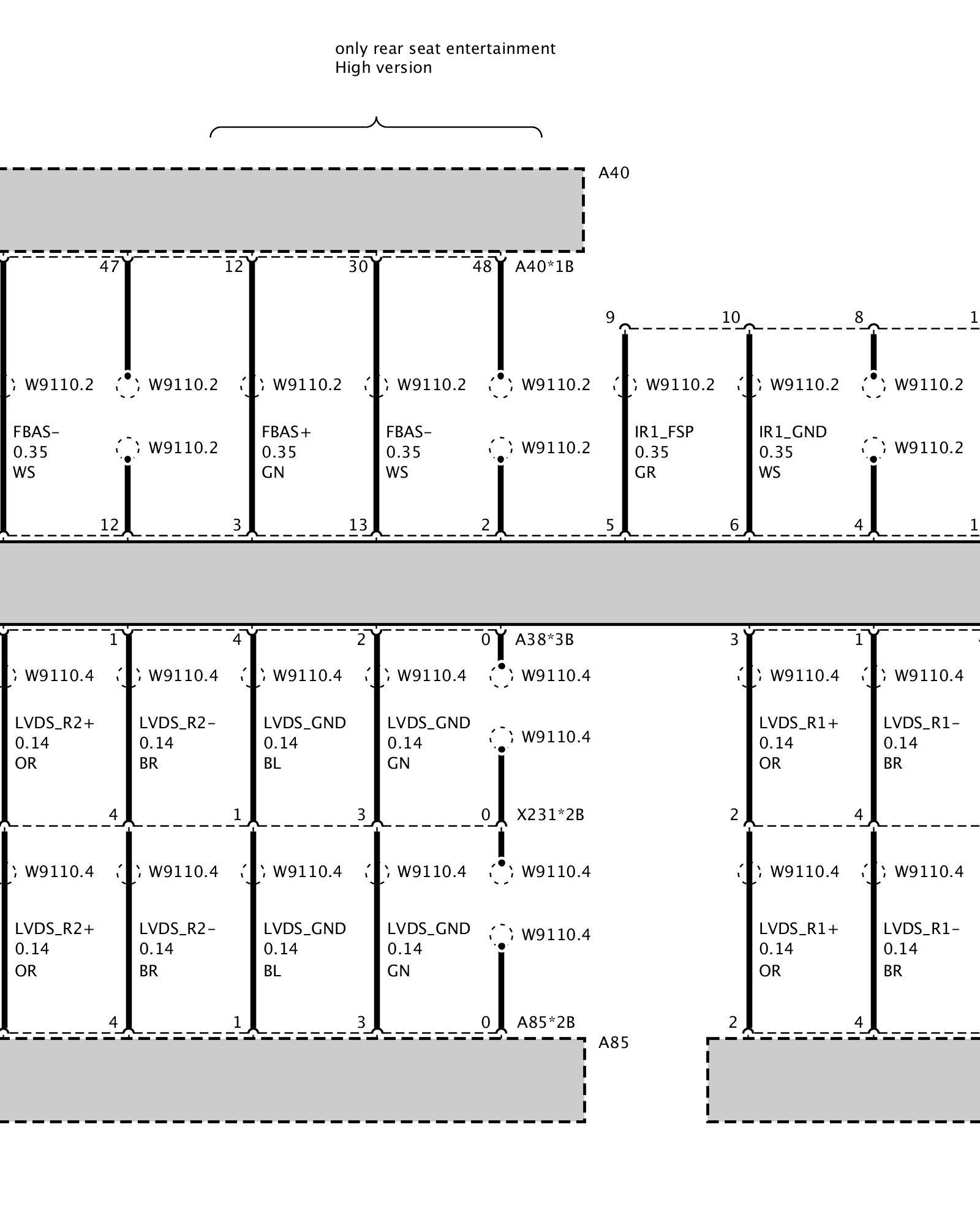

Part 2:

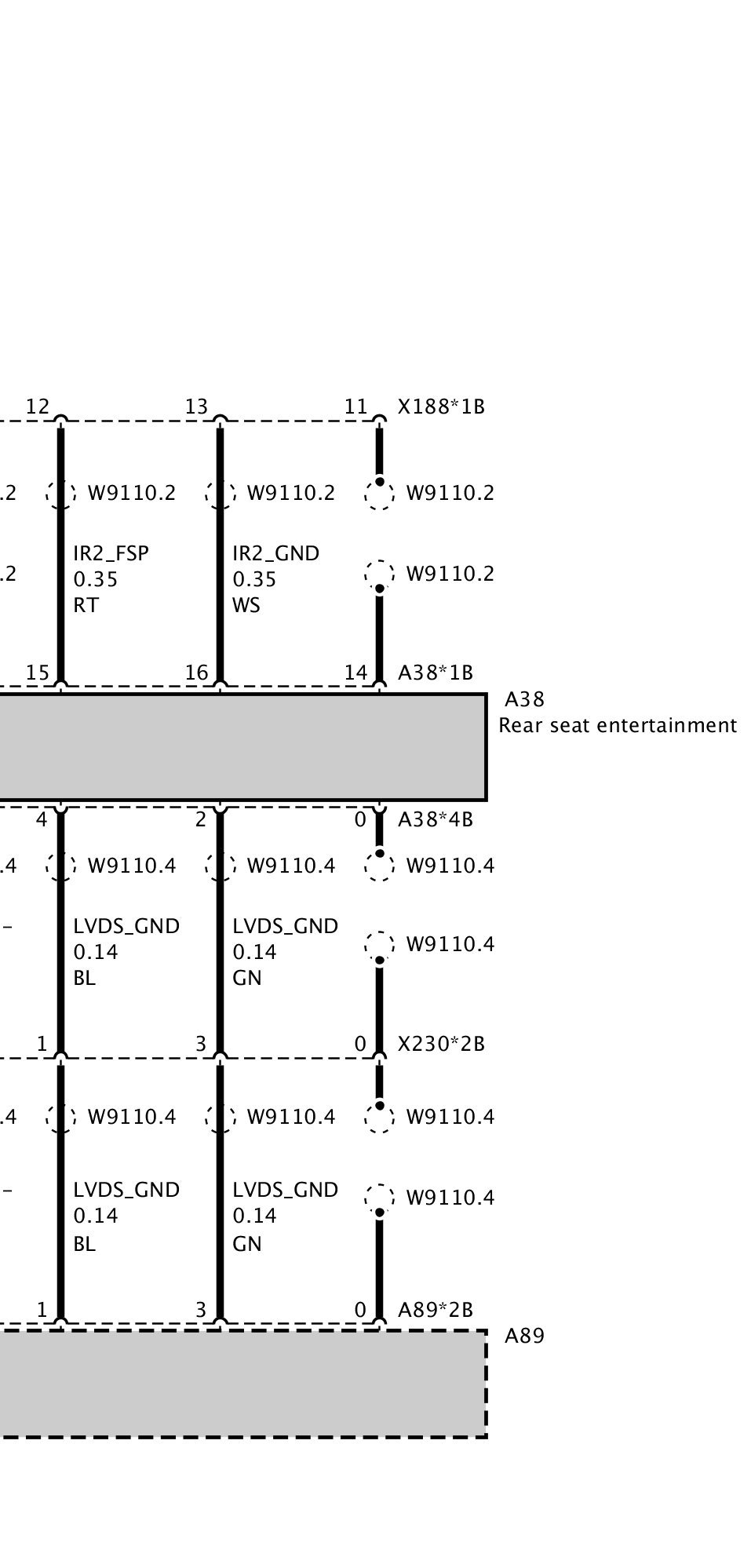

Part 3:
