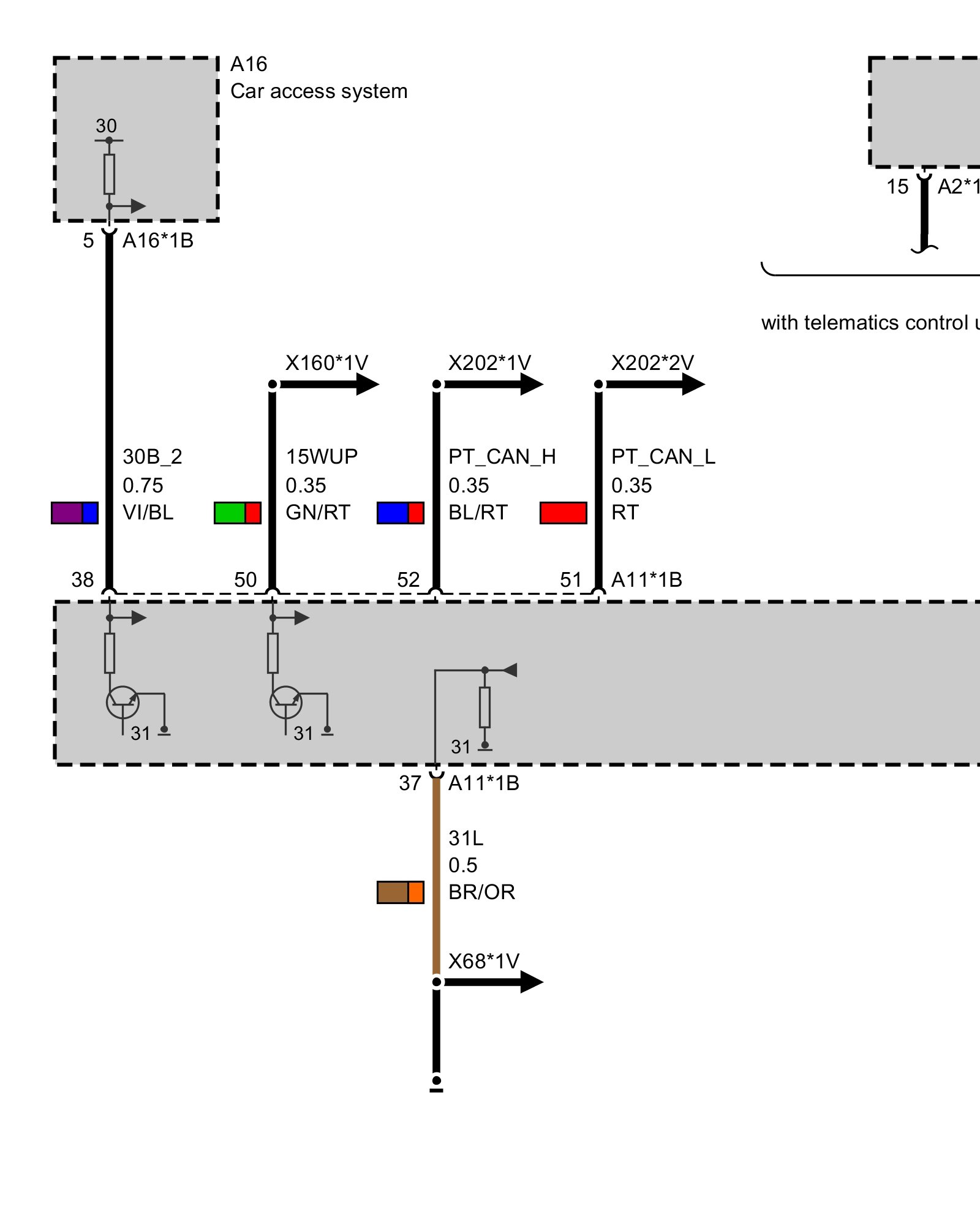

Power Supply, ACSM Crash Safety Module
Power Supply, ACSM Crash Safety Module
Power supply, crash safety module
