Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Safety Functions >> Passenger Airbag Deactivation >> Passenger Airbag Deactivation

Passenger Airbag Deactivation

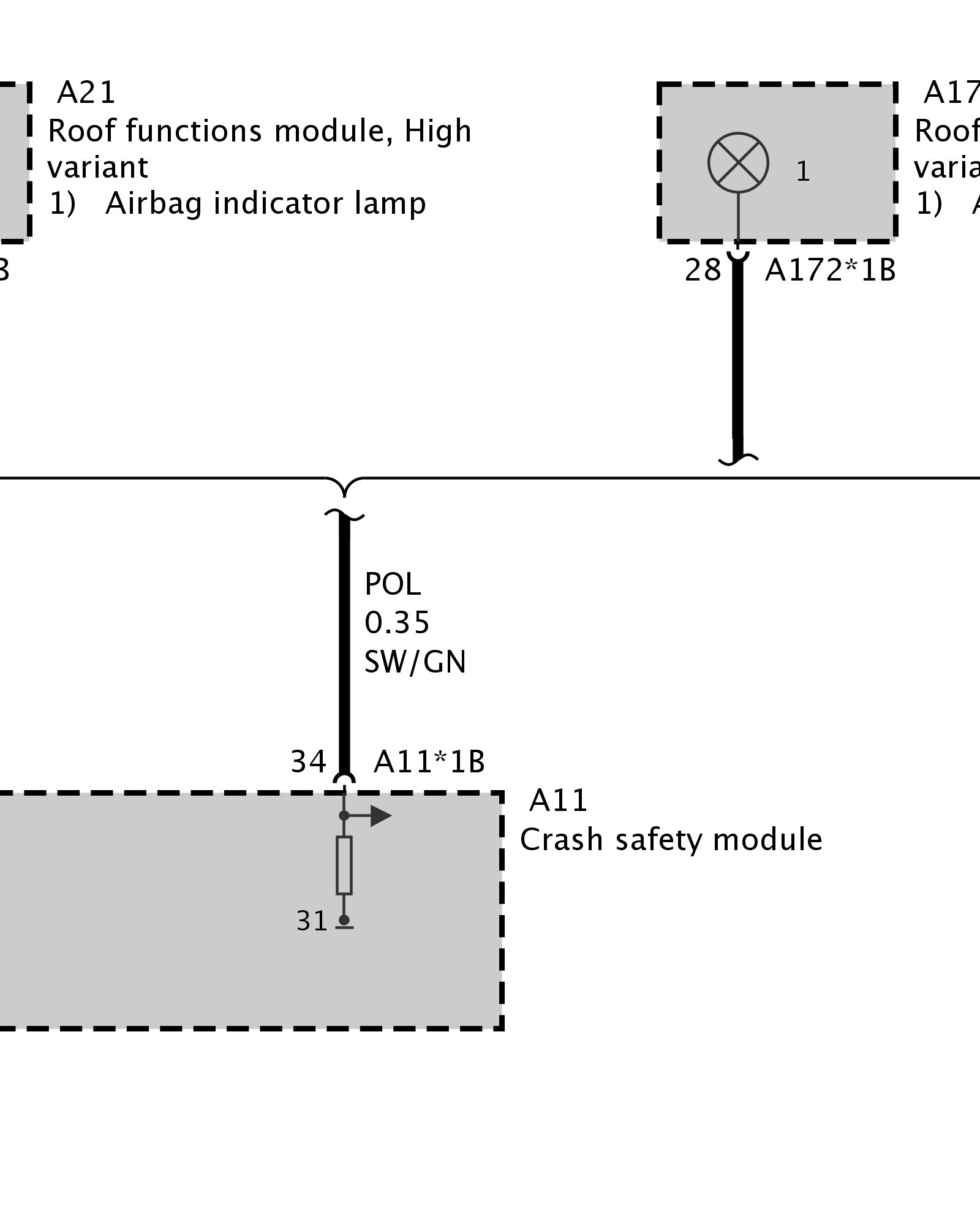

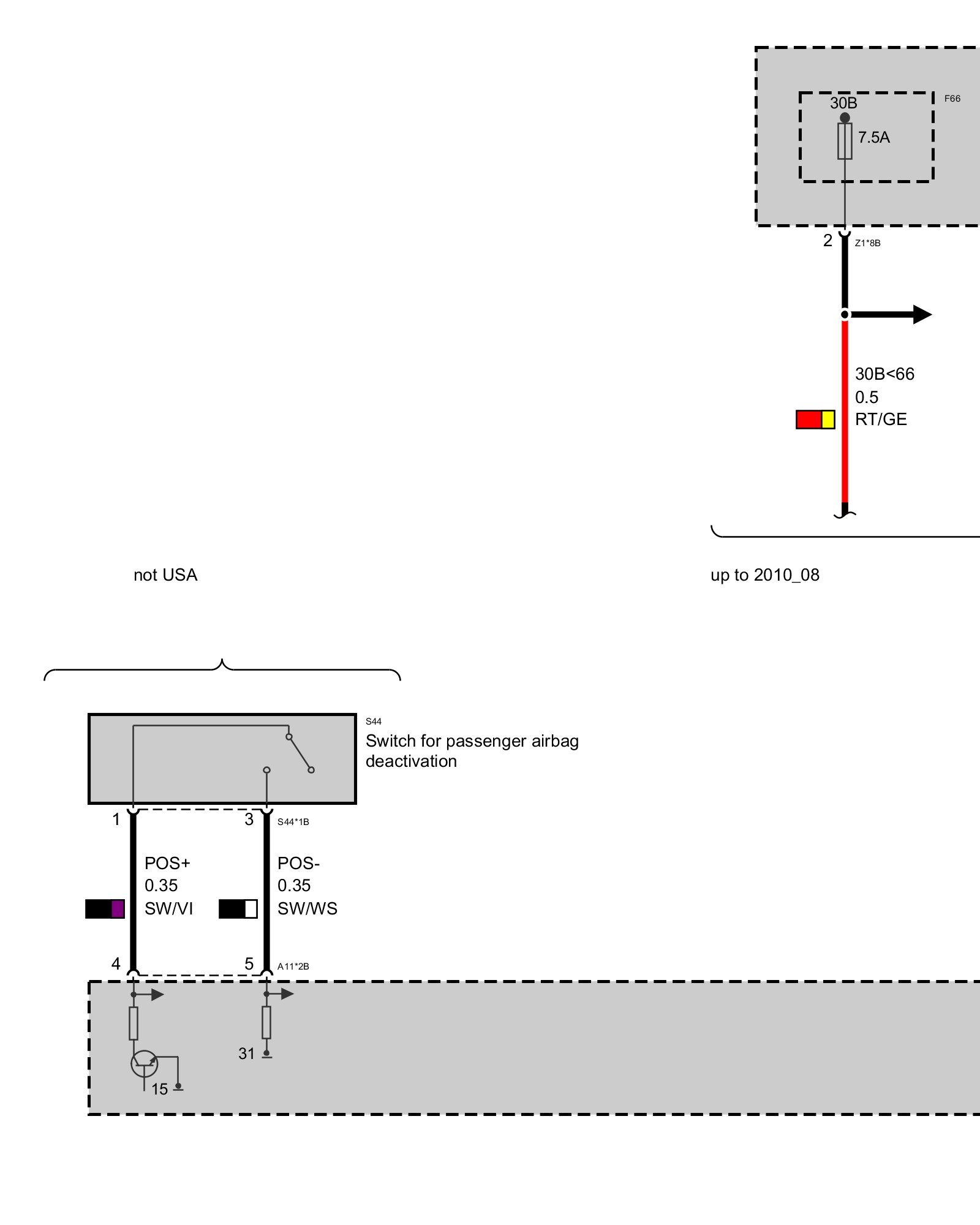

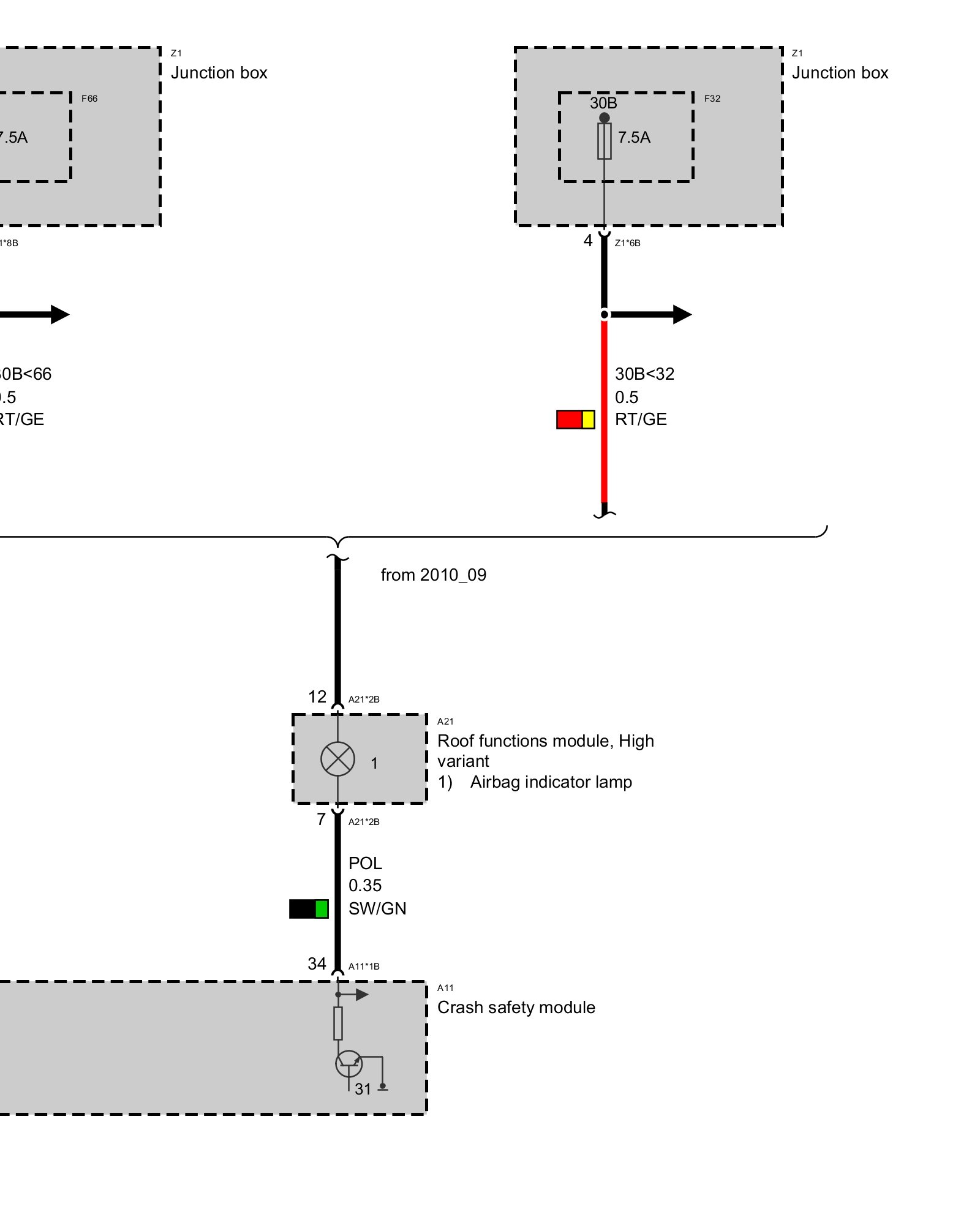

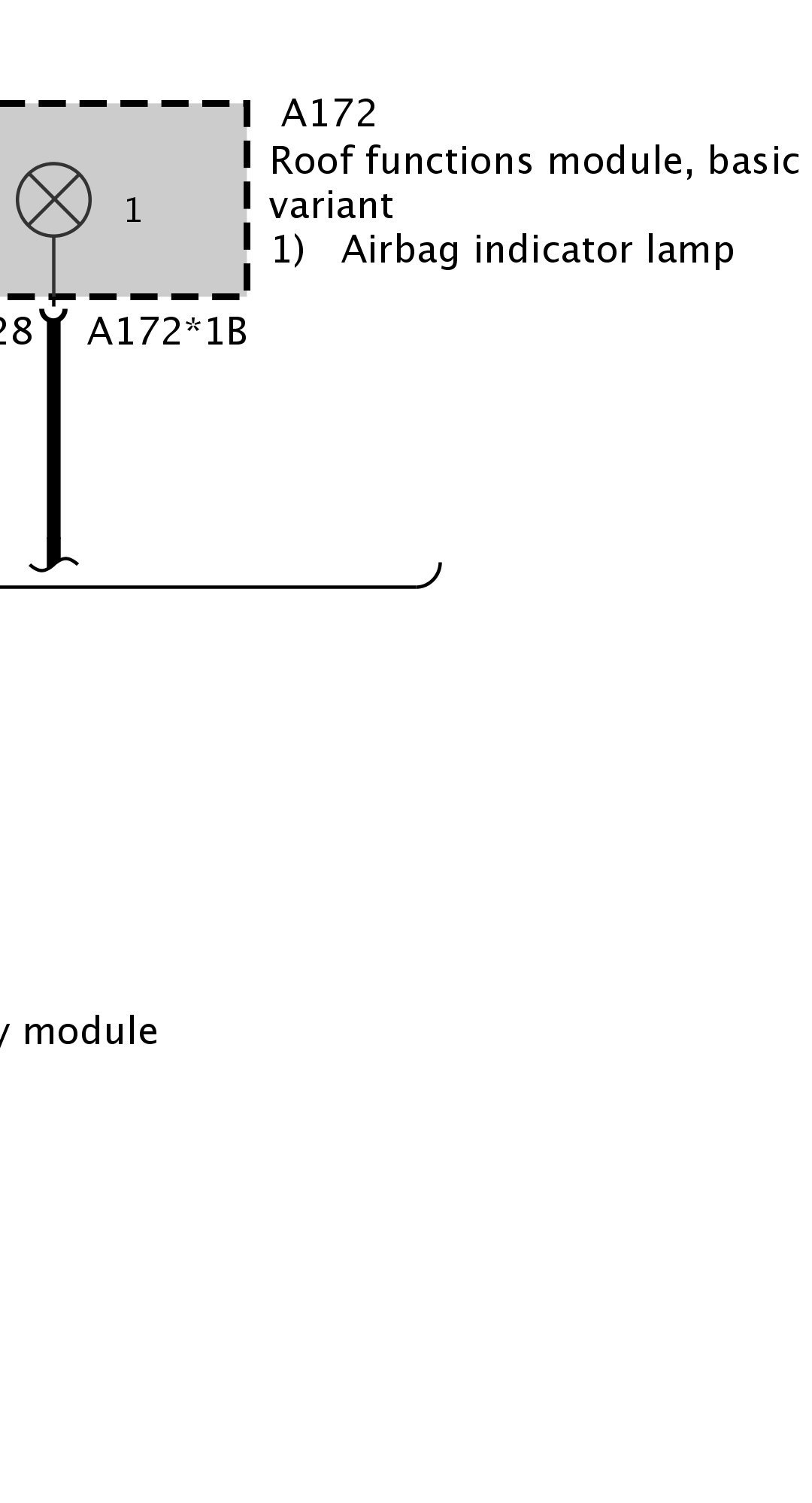

Passenger airbag deactivation








Part 3:




Part 4:
