Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Safety Functions >> Motor-Driven Belt Retractors (Comfort Seats Electrically Adjustable)

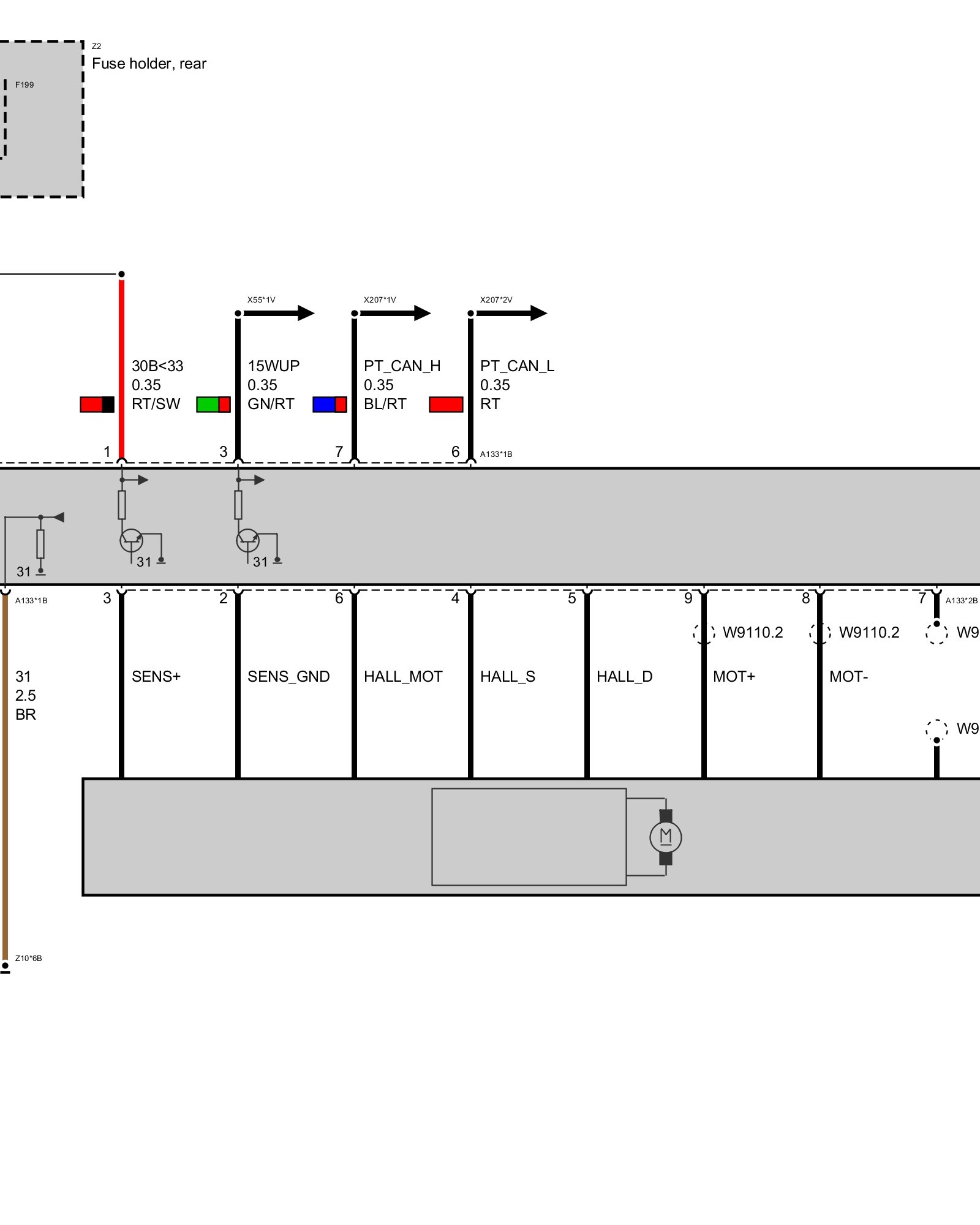

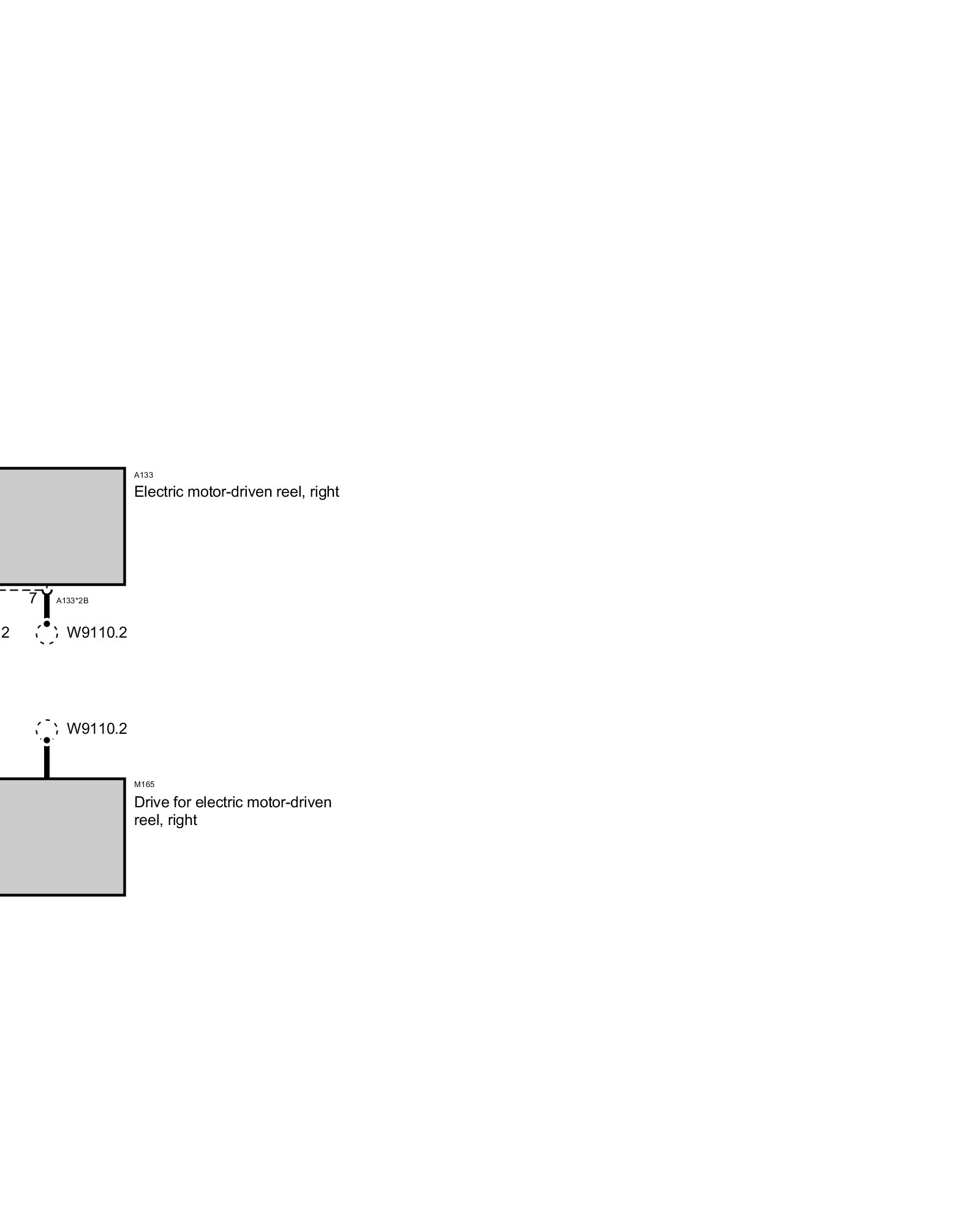

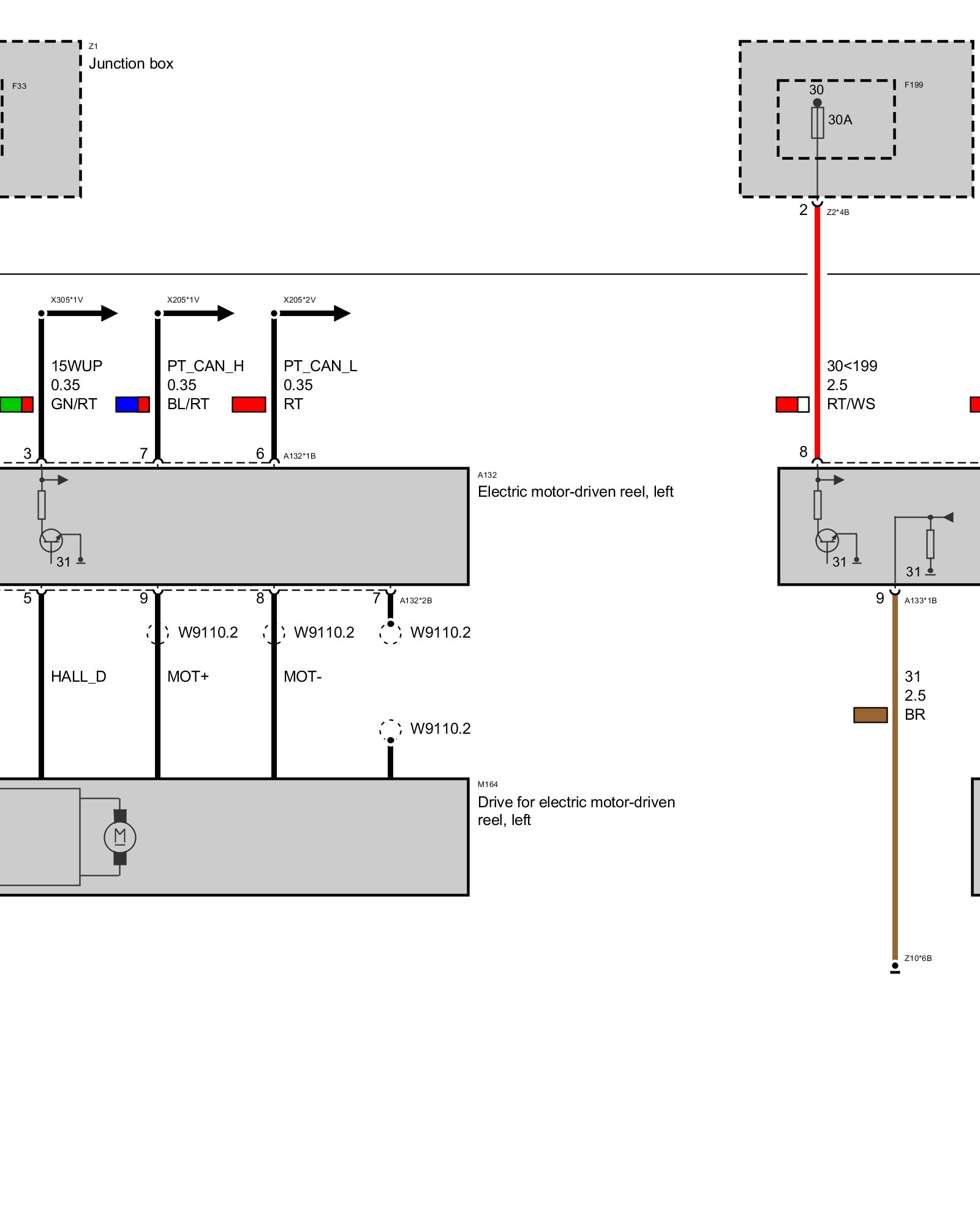

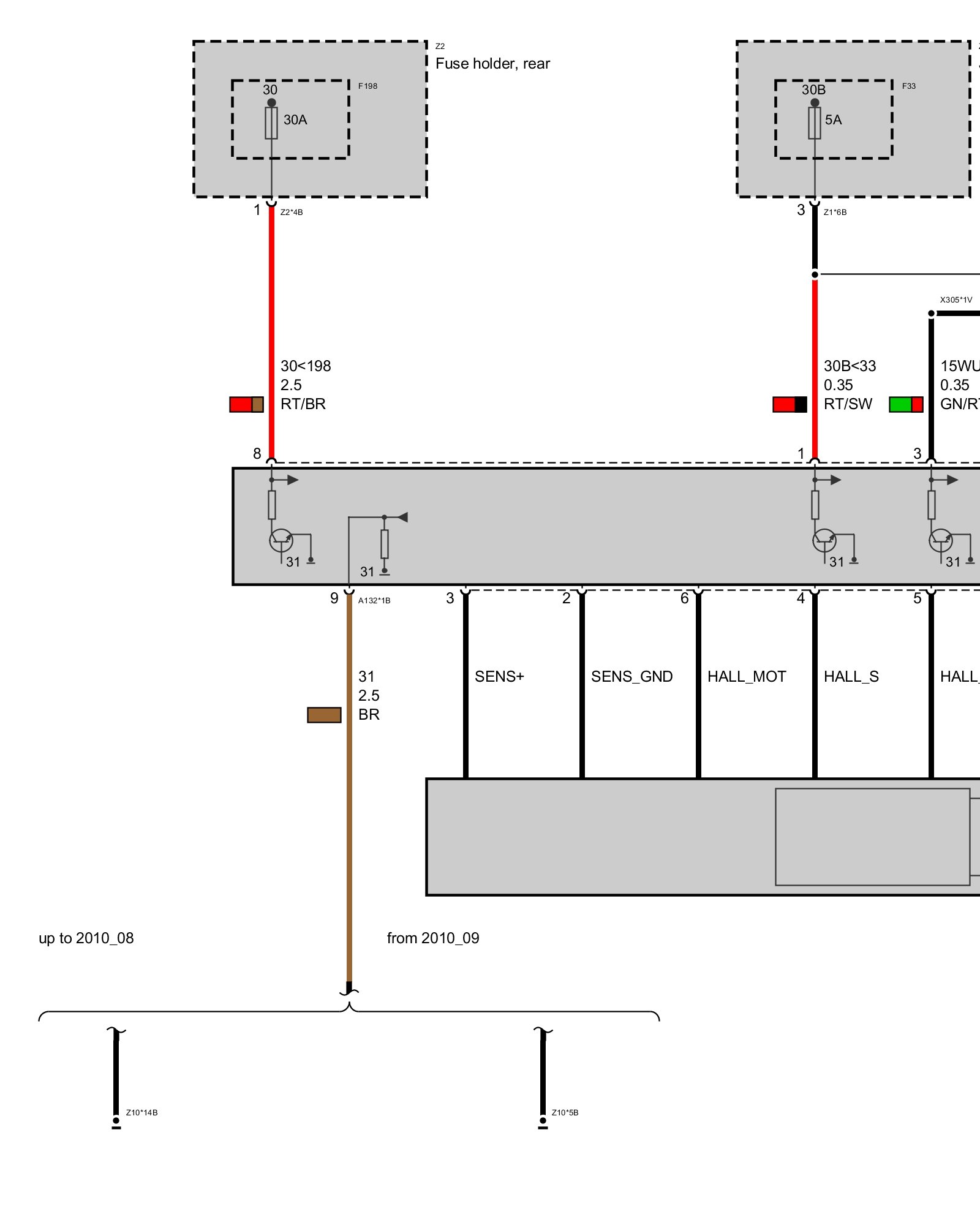

Motor-Driven Belt Retractors (Comfort Seats Electrically Adjustable)



Electric motor-driven reel
