Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Camera Systems >> Outside Mirror Camera (TRSVC Allround-View Camera Without 7er-Reihe_F01/F02) >> Supply, VSW Video Switch

Supply, VSW Video Switch

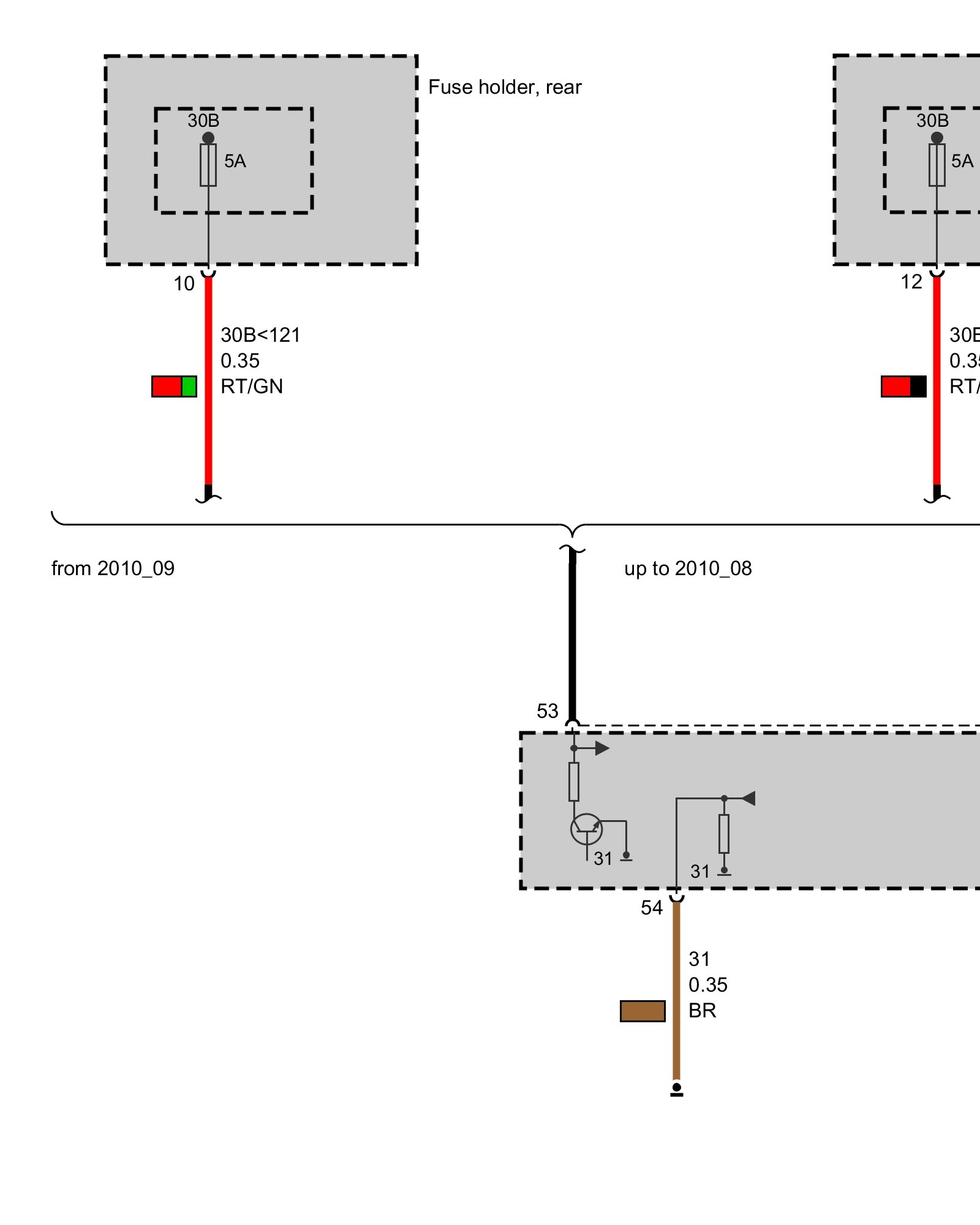

Power Supply, Video Switch
