Video system analysis (RSE Rear-Cabin Entertainment System Mid or RSE, High, or VM Video Module)
>>

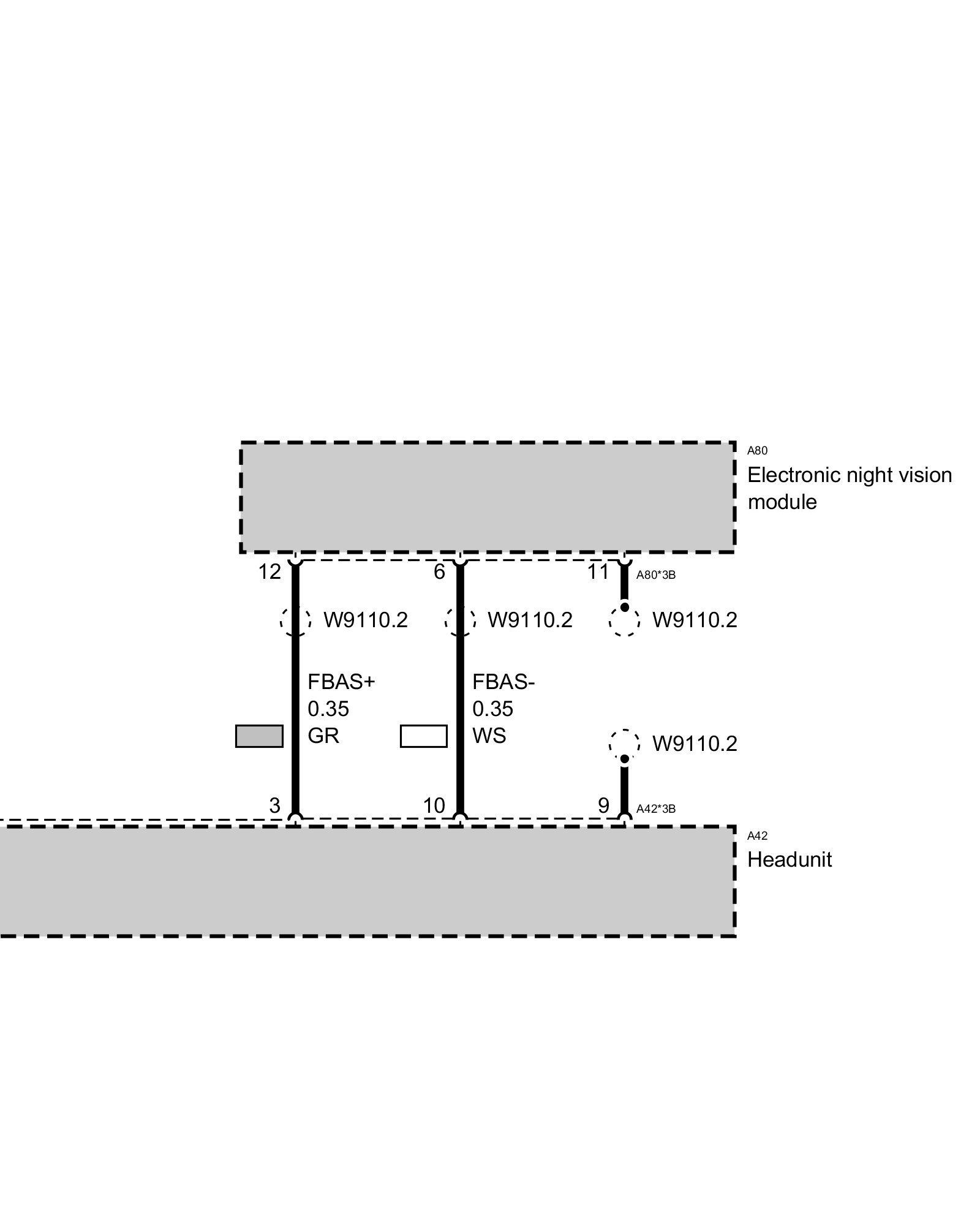

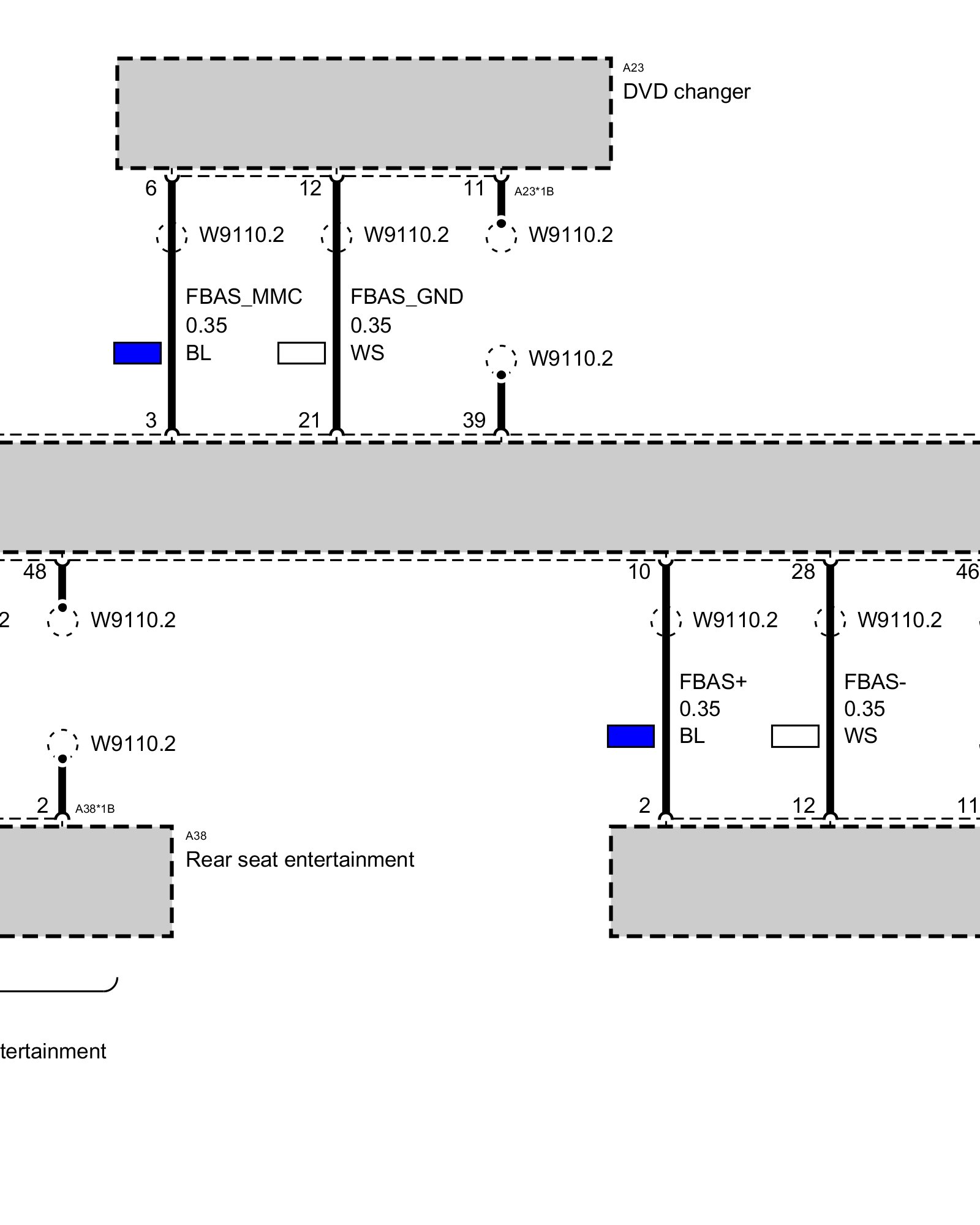

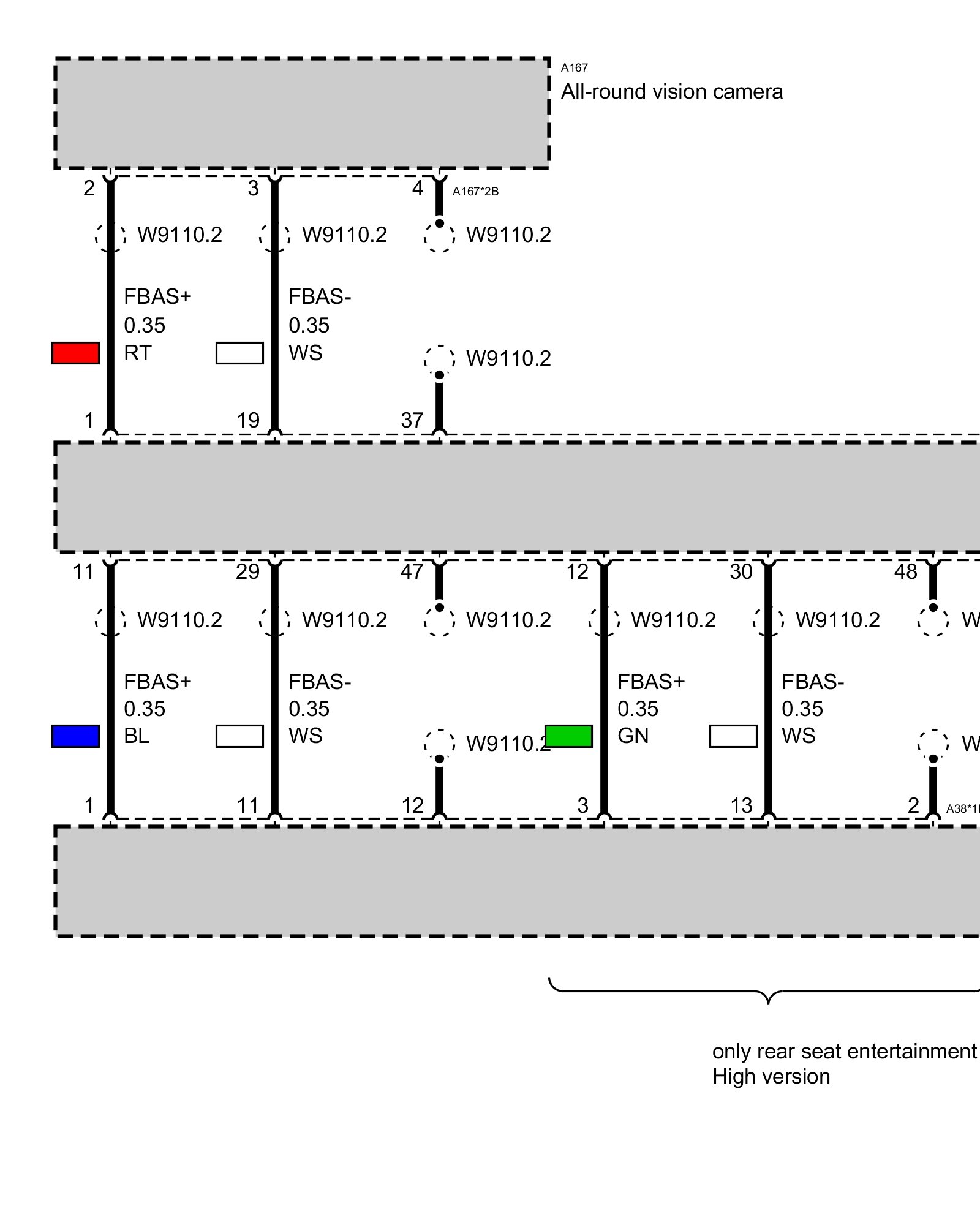

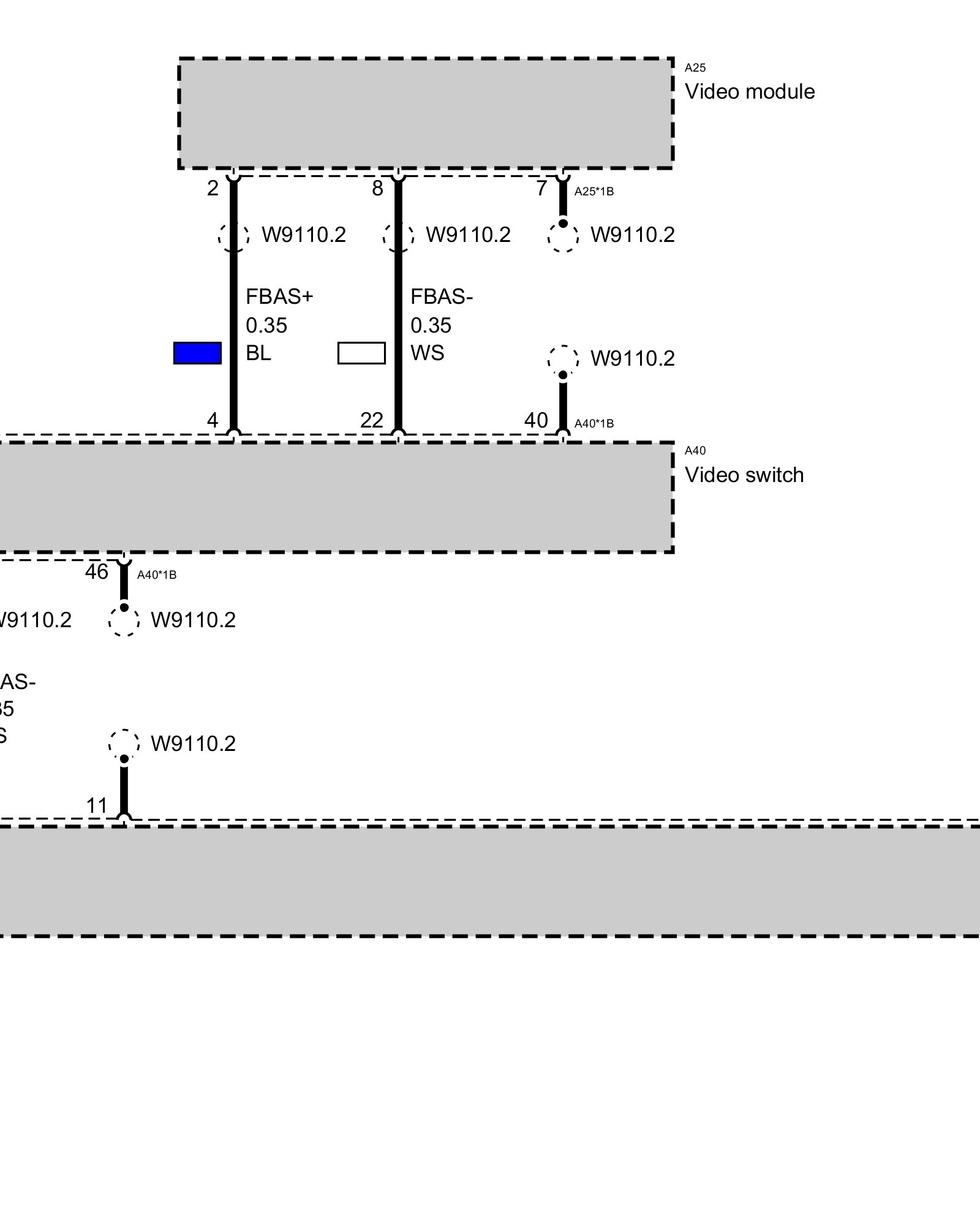

VM Video Module w/ TRSVC all round-view camera with DVDC DVD Changer with NVE Night Vision Electronics As of 09/08 up to 03/09
VM Video Module w/ TRSVC all round-view camera with DVDC DVD Changer with NVE Night Vision Electronics As of 09/08 up to 03/09
Video system analysis
