Video System (7er-Reihe_F01/F02)
>>
Video System Analysis (Without RSE Rear-Cabin Entertainment System Mid or RSE, High)
>>
RSE Mid, without RSE High without TRSVC allround-view camera as as of 03/09
RSE Mid, without RSE High without TRSVC allround-view camera as as of 03/09

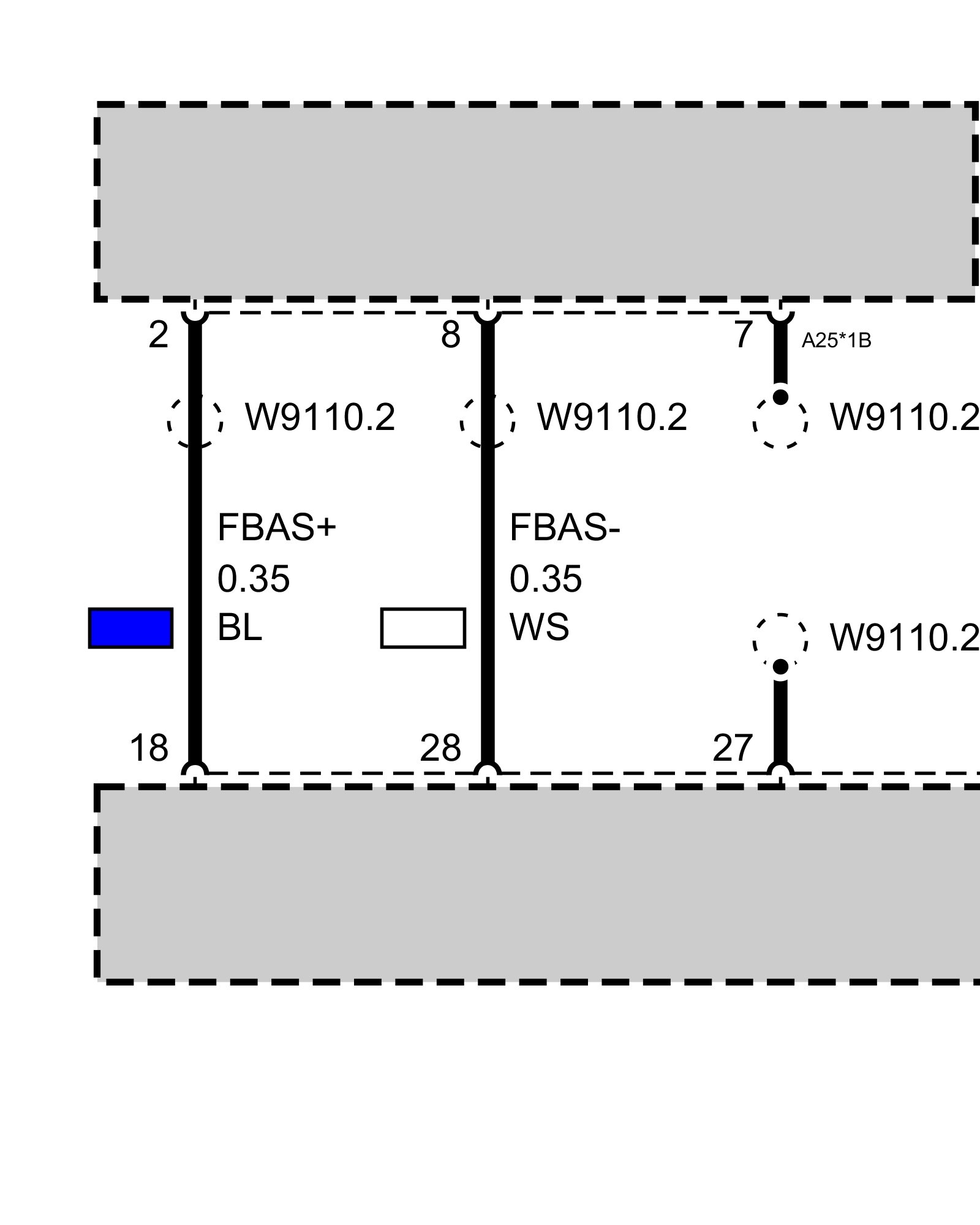

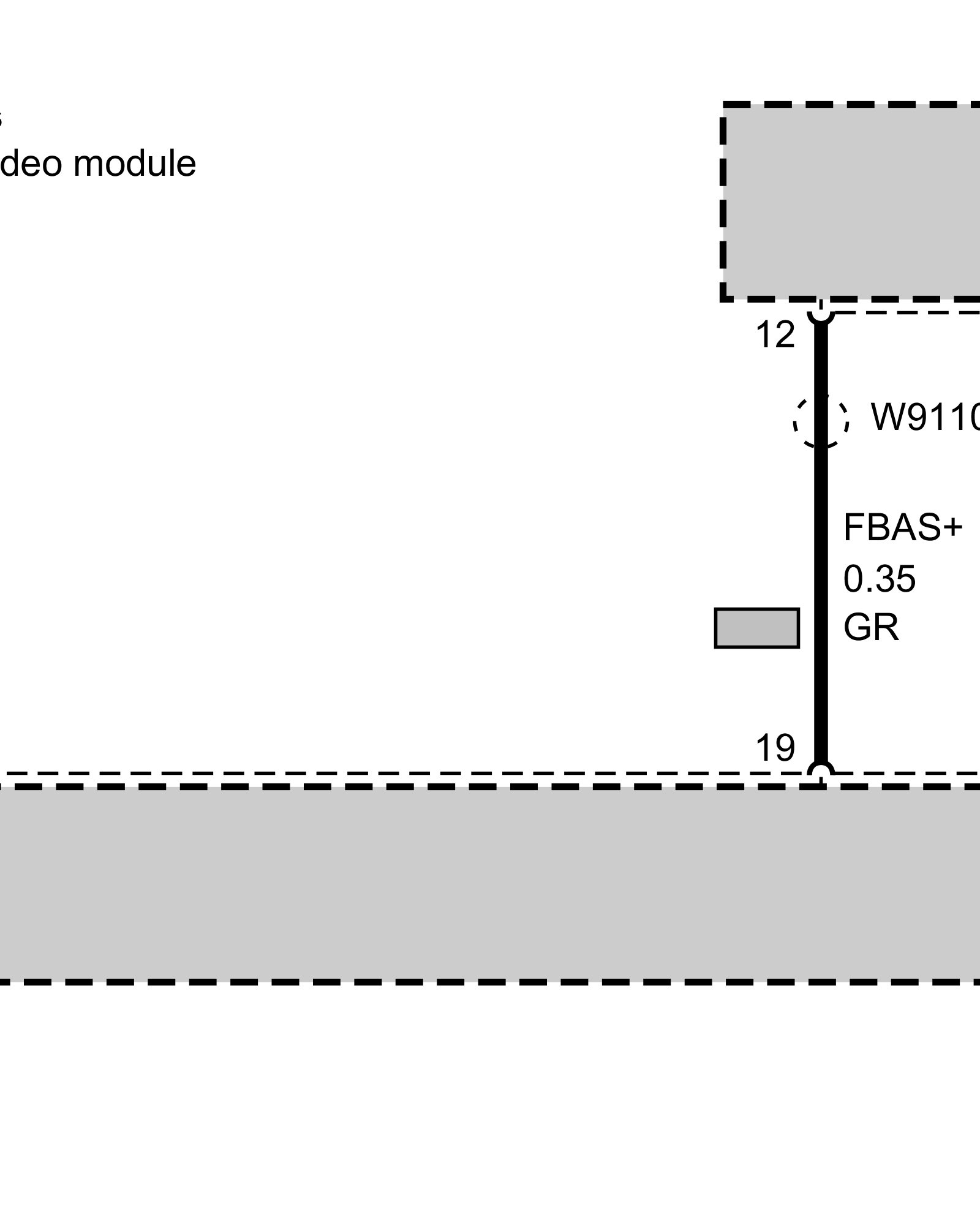

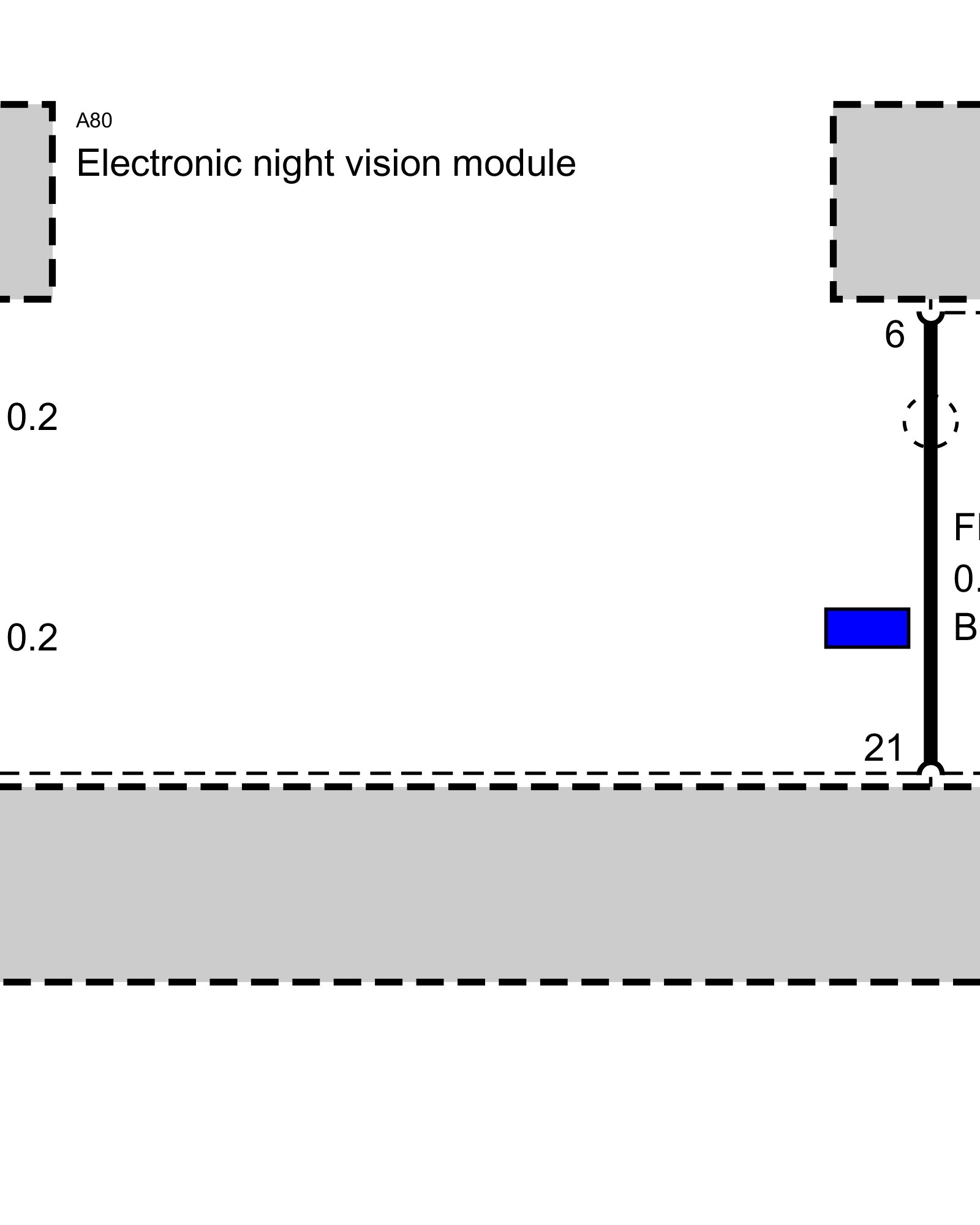

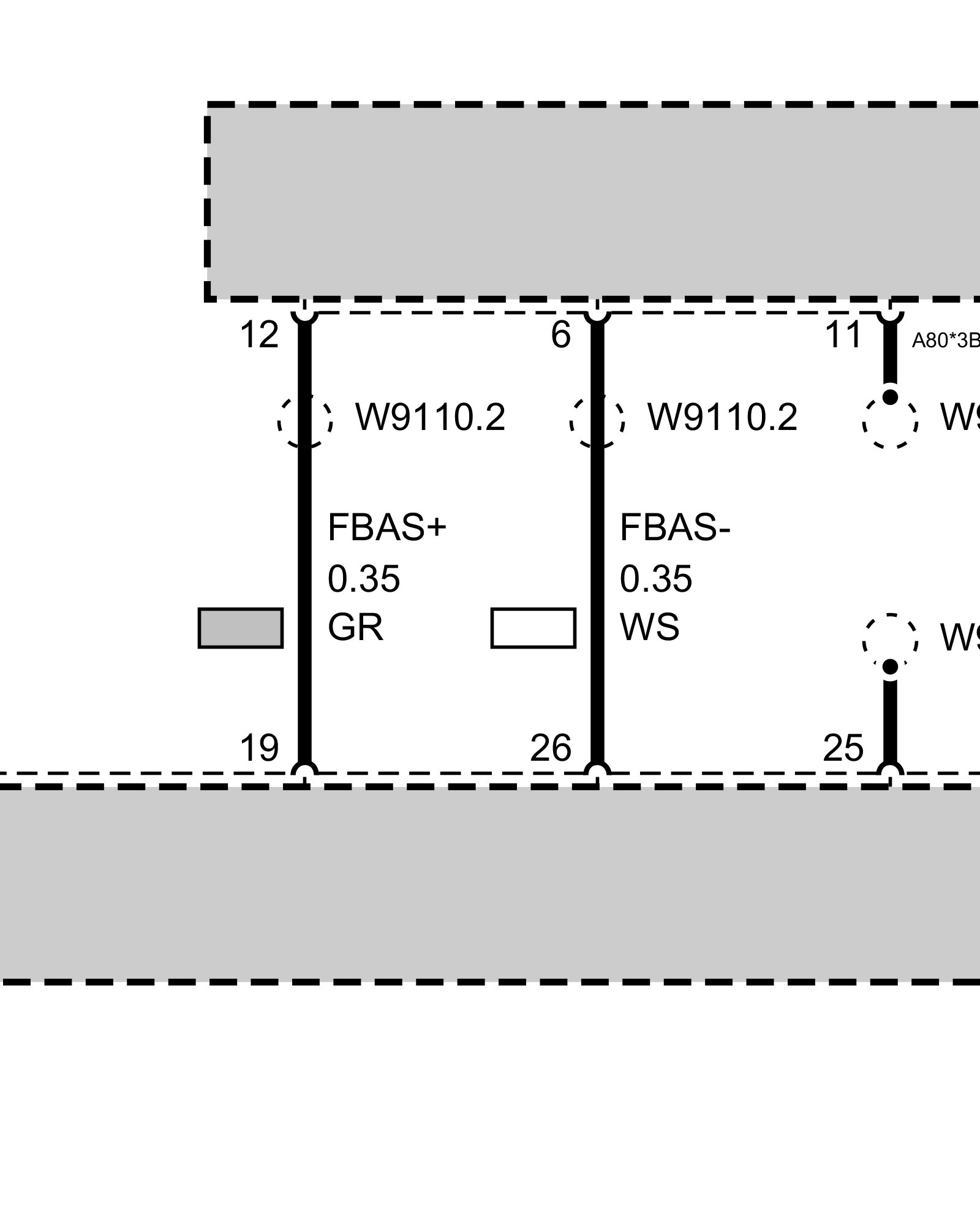

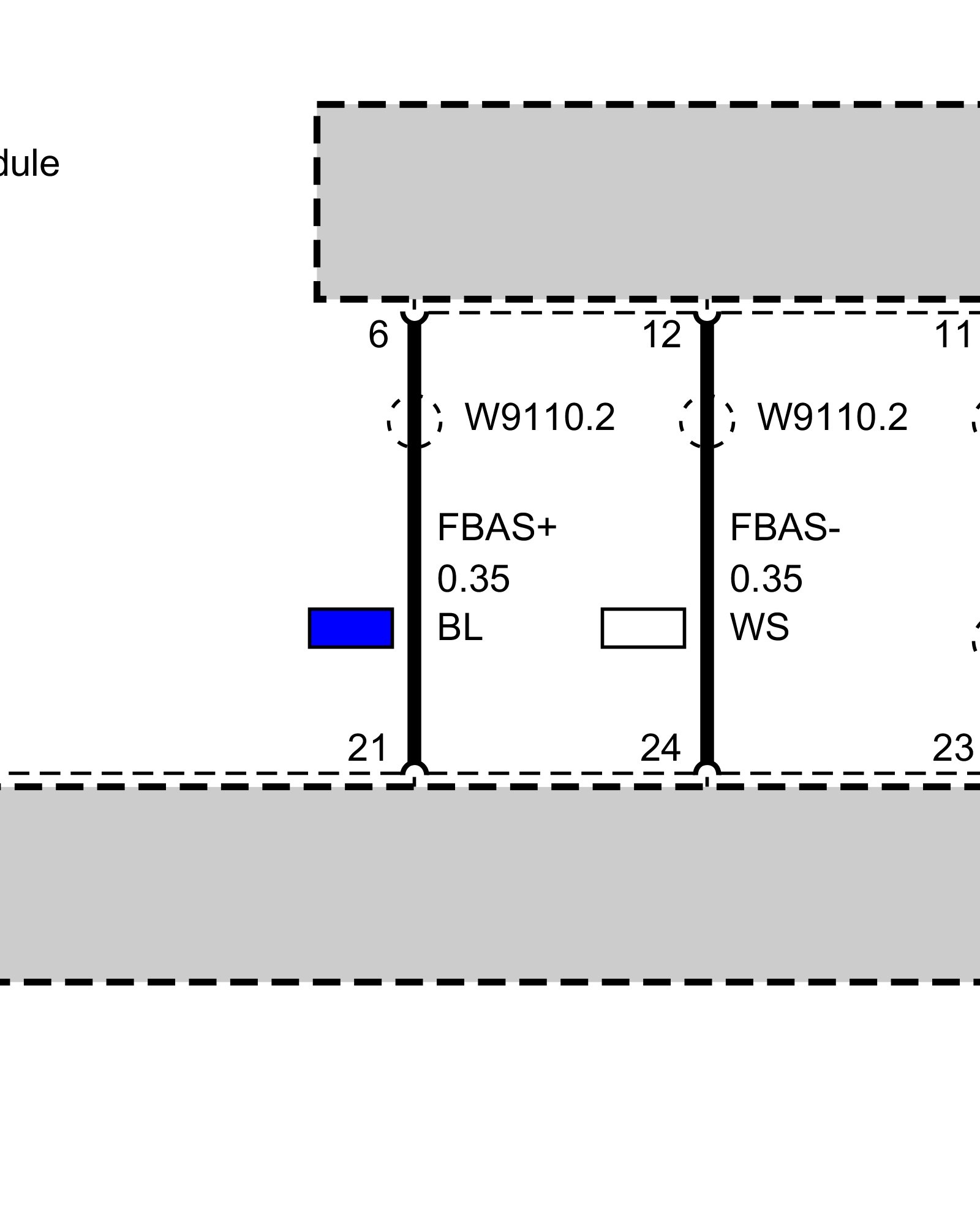

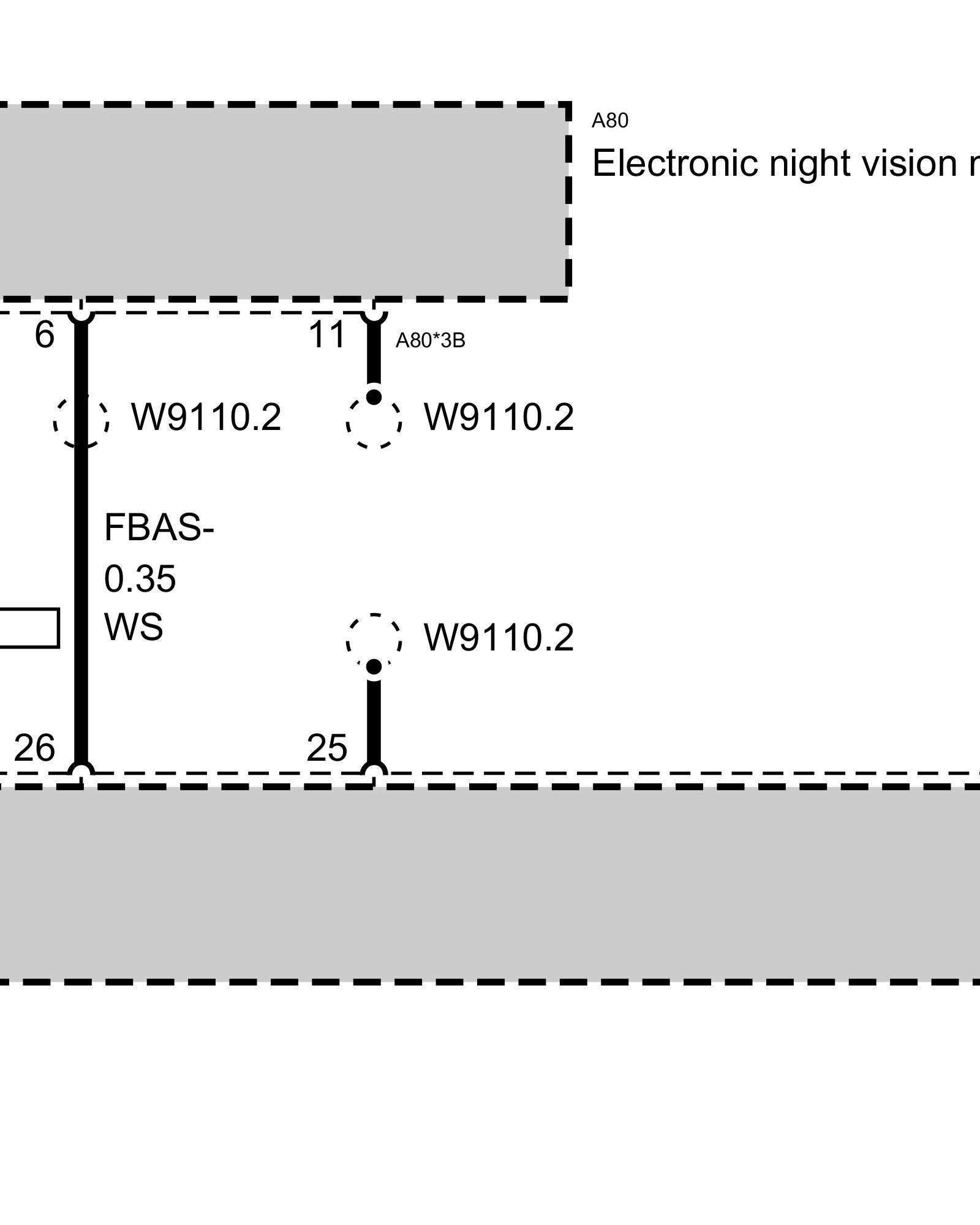

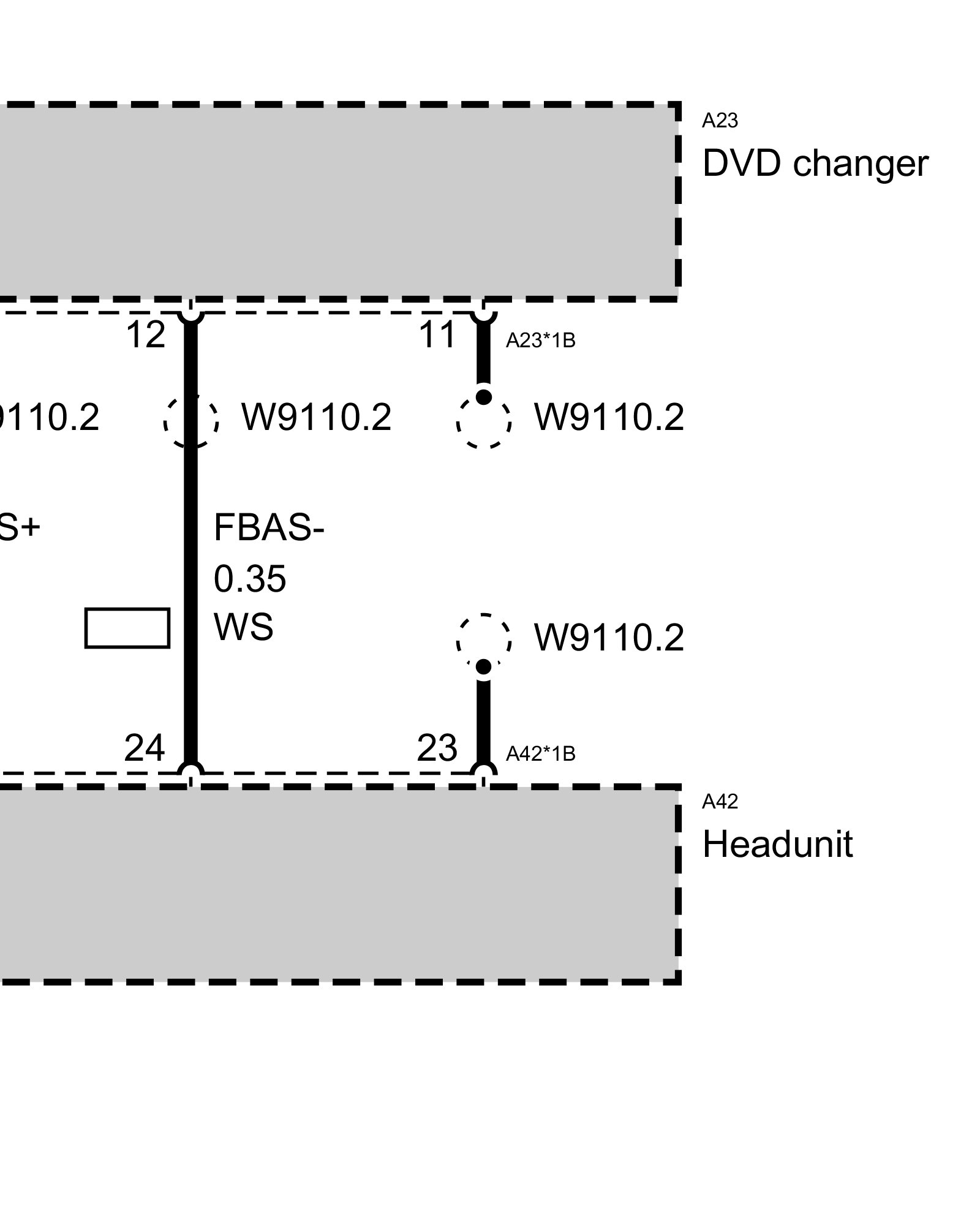

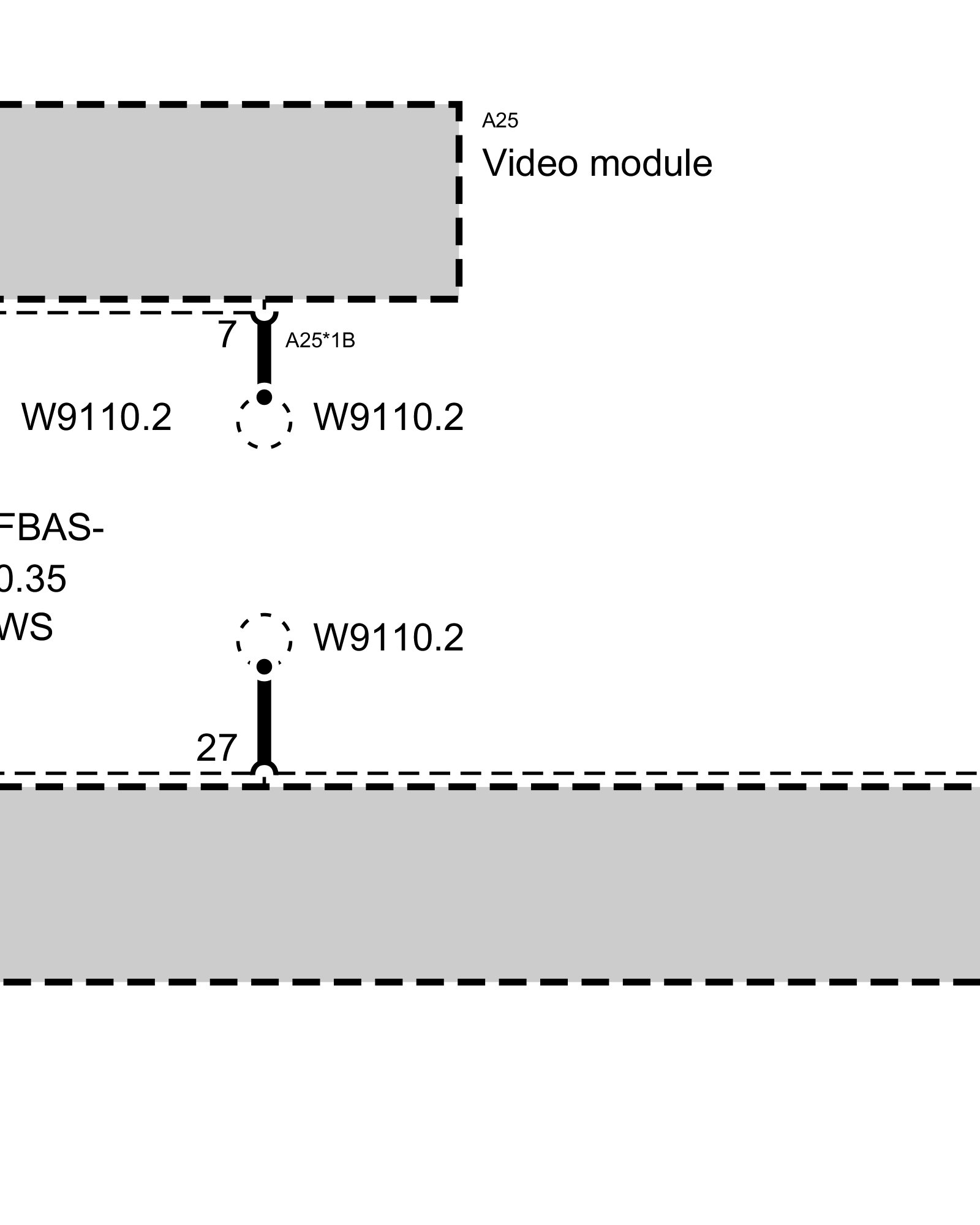

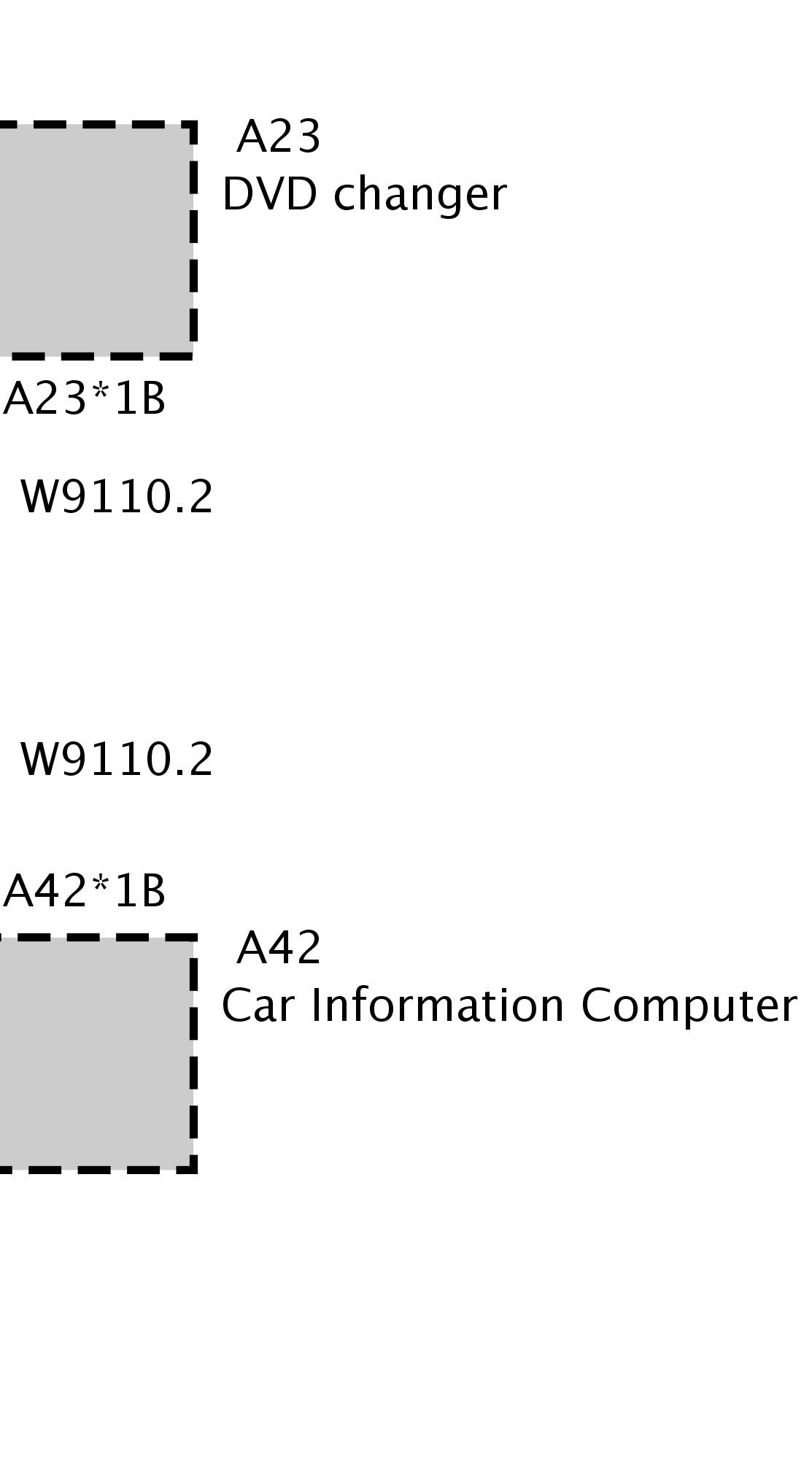

Video system analysis
Part 9:
