Home
>>
BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation, Telephone (MOST Ring)
>>
Video System (7er-Reihe_F01/F02)
>>
Video System Analysis (RSE Rear-Cabin Entertainment System Mid Without DVDC Dvd Changer)
>>
TRSVC allround-view camera with RSE Mid, without DVDC without NVE Night Vision Electronics as of 03/09
TRSVC allround-view camera with RSE Mid, without DVDC without NVE Night Vision Electronics as of 03/09

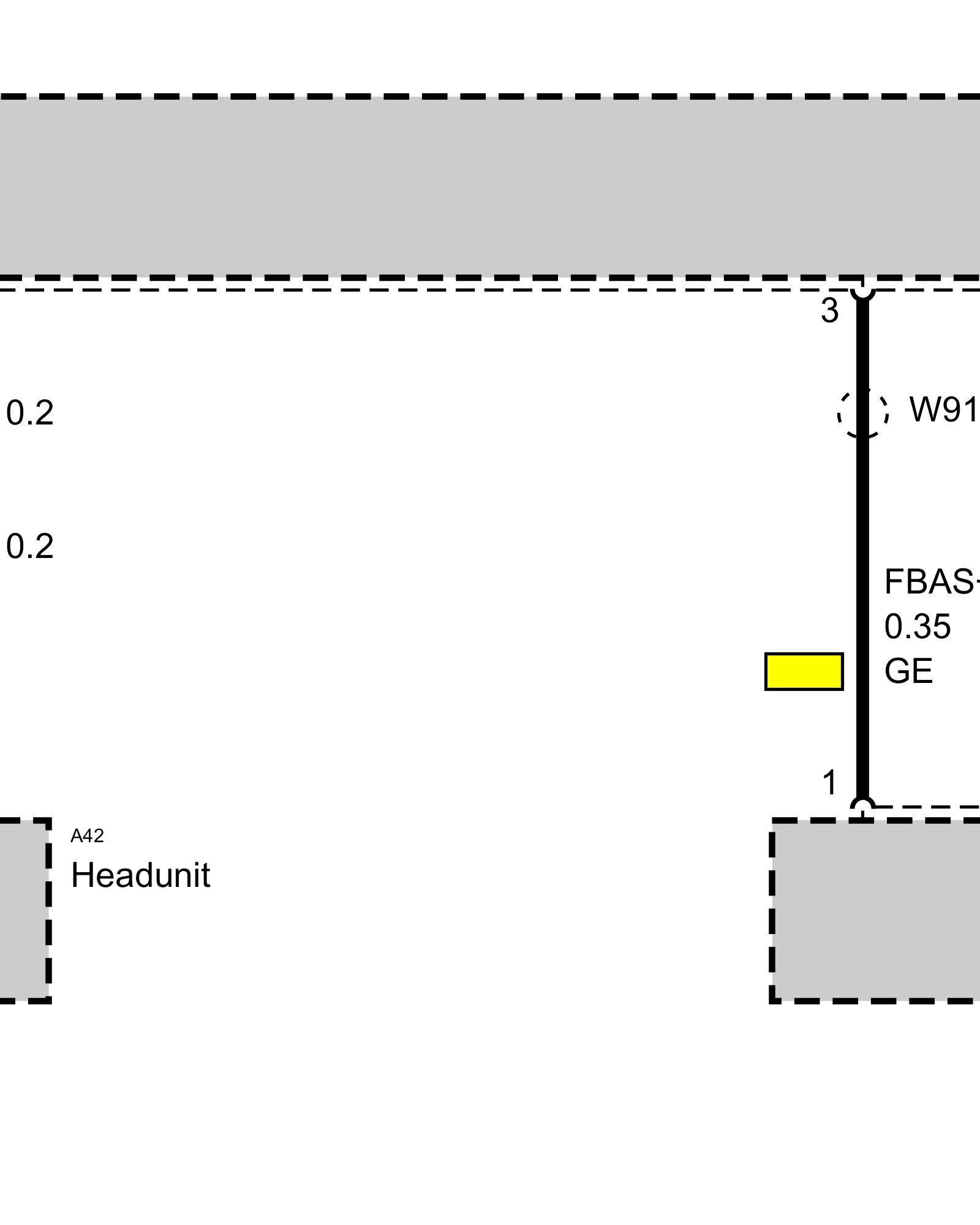

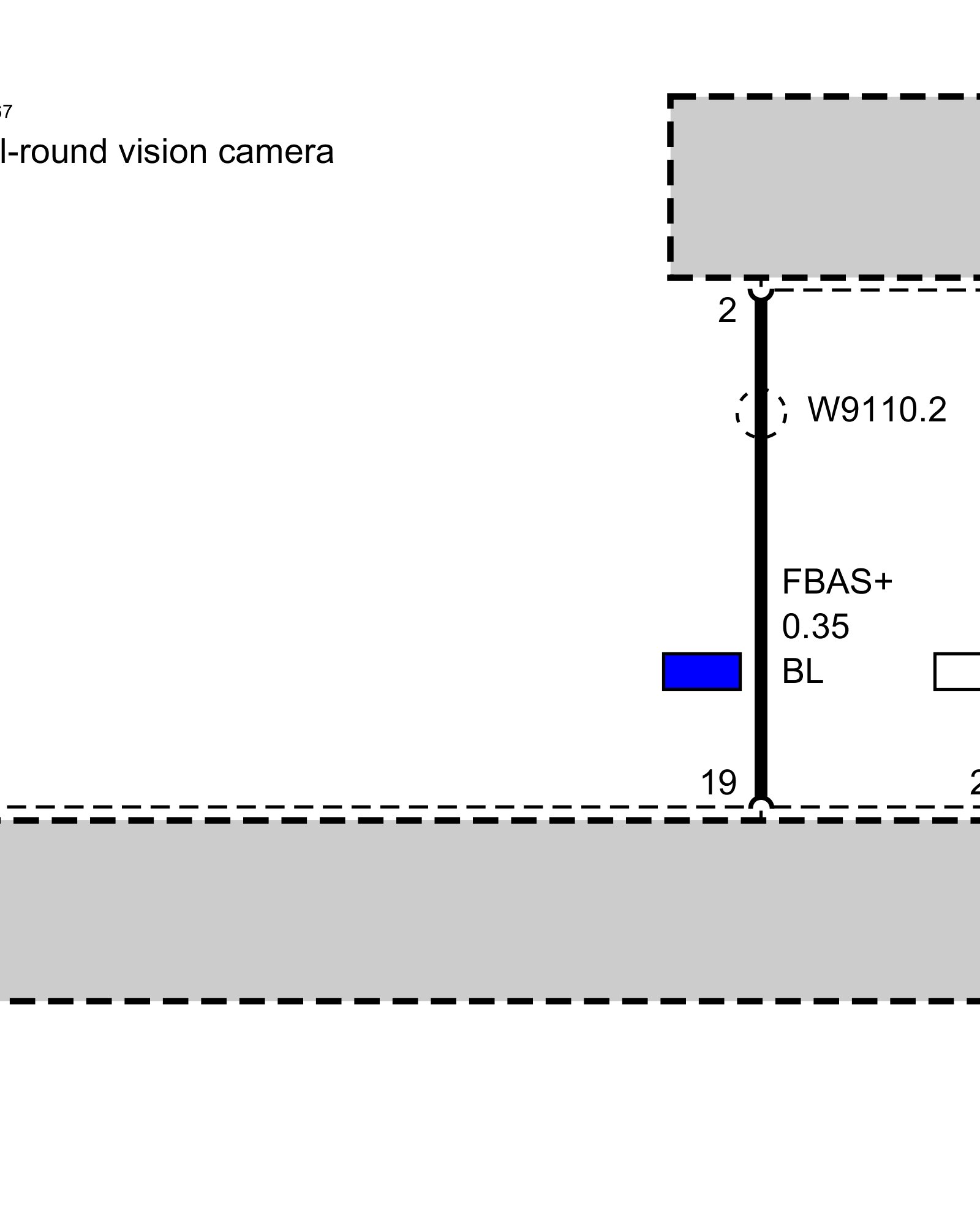

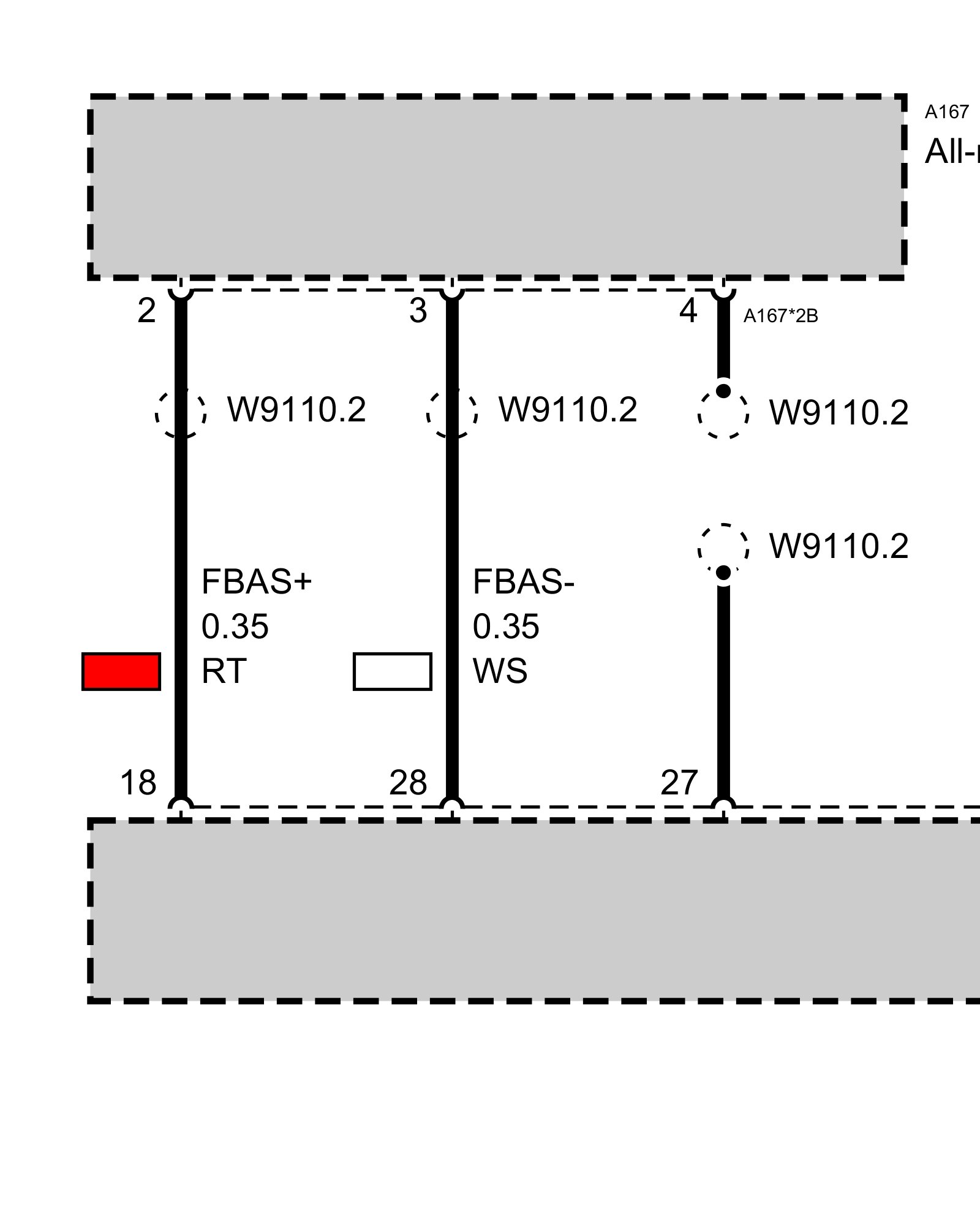

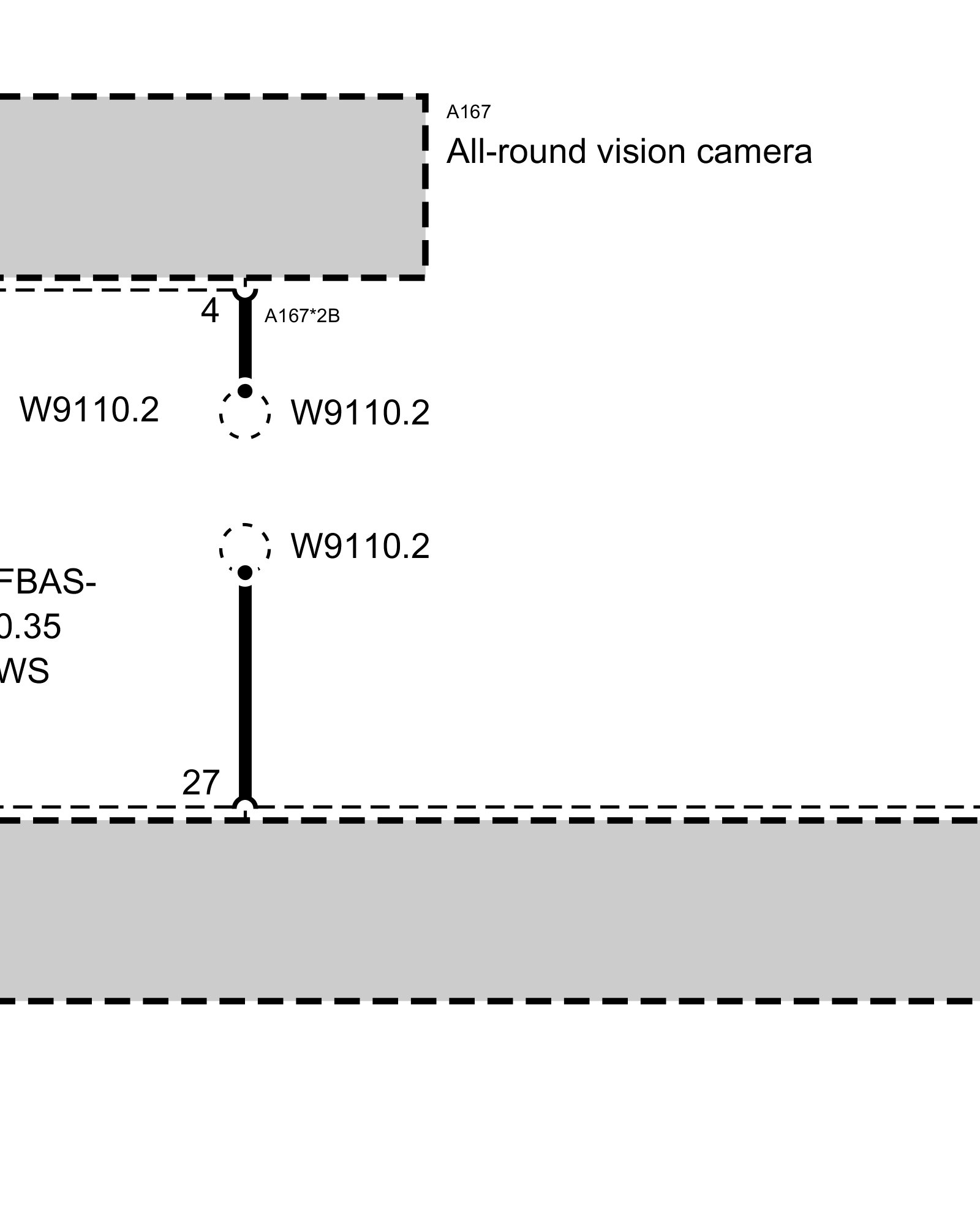

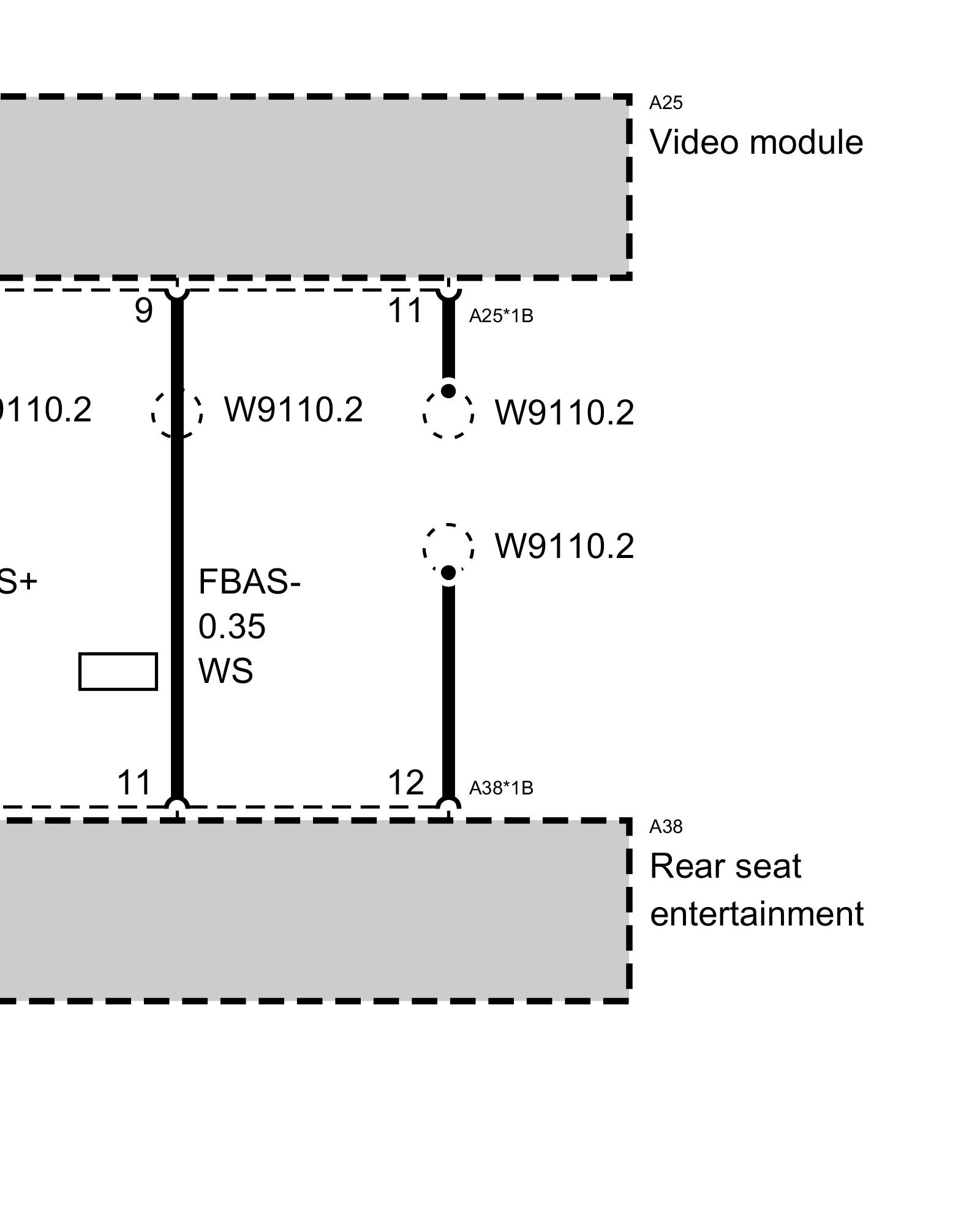

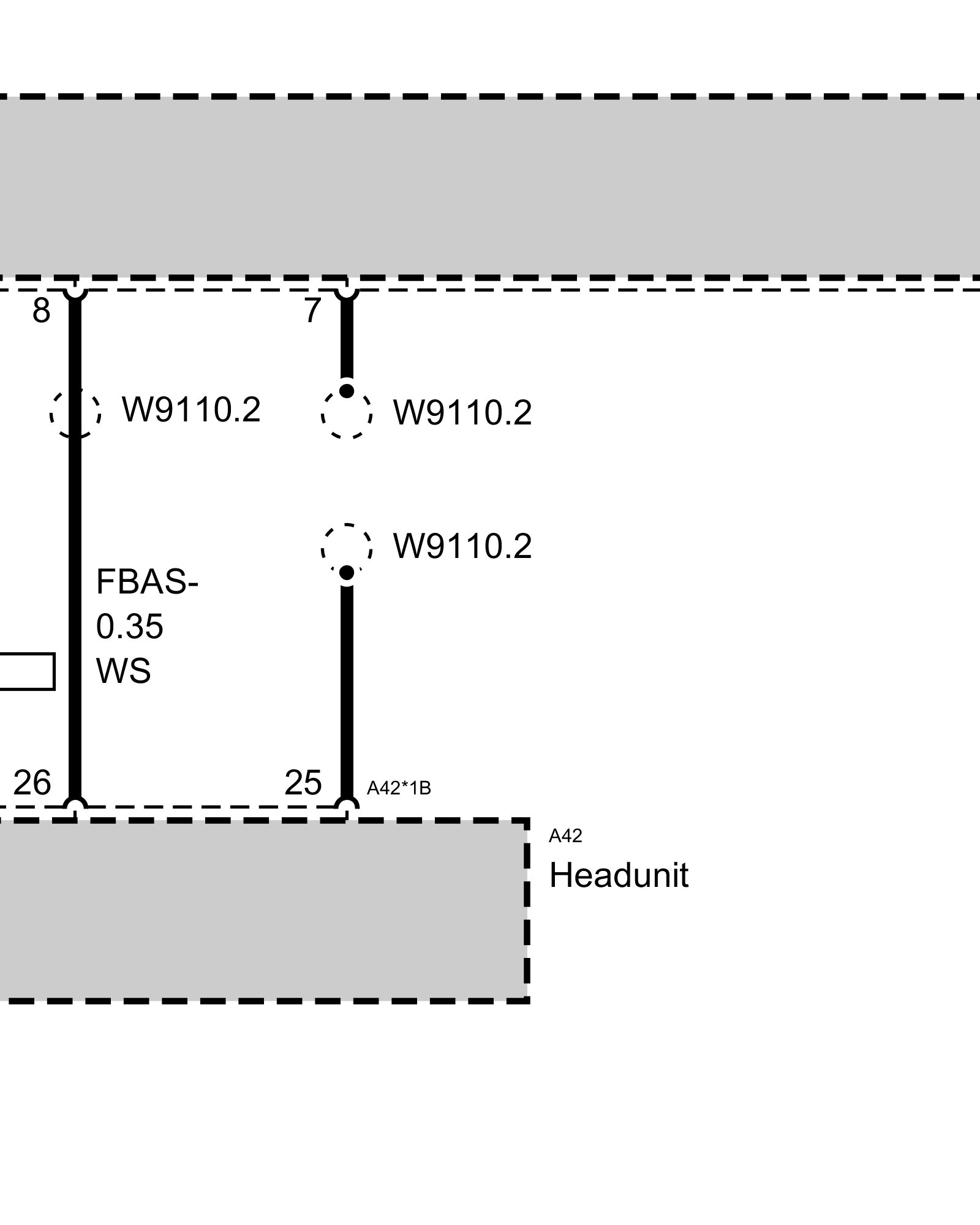

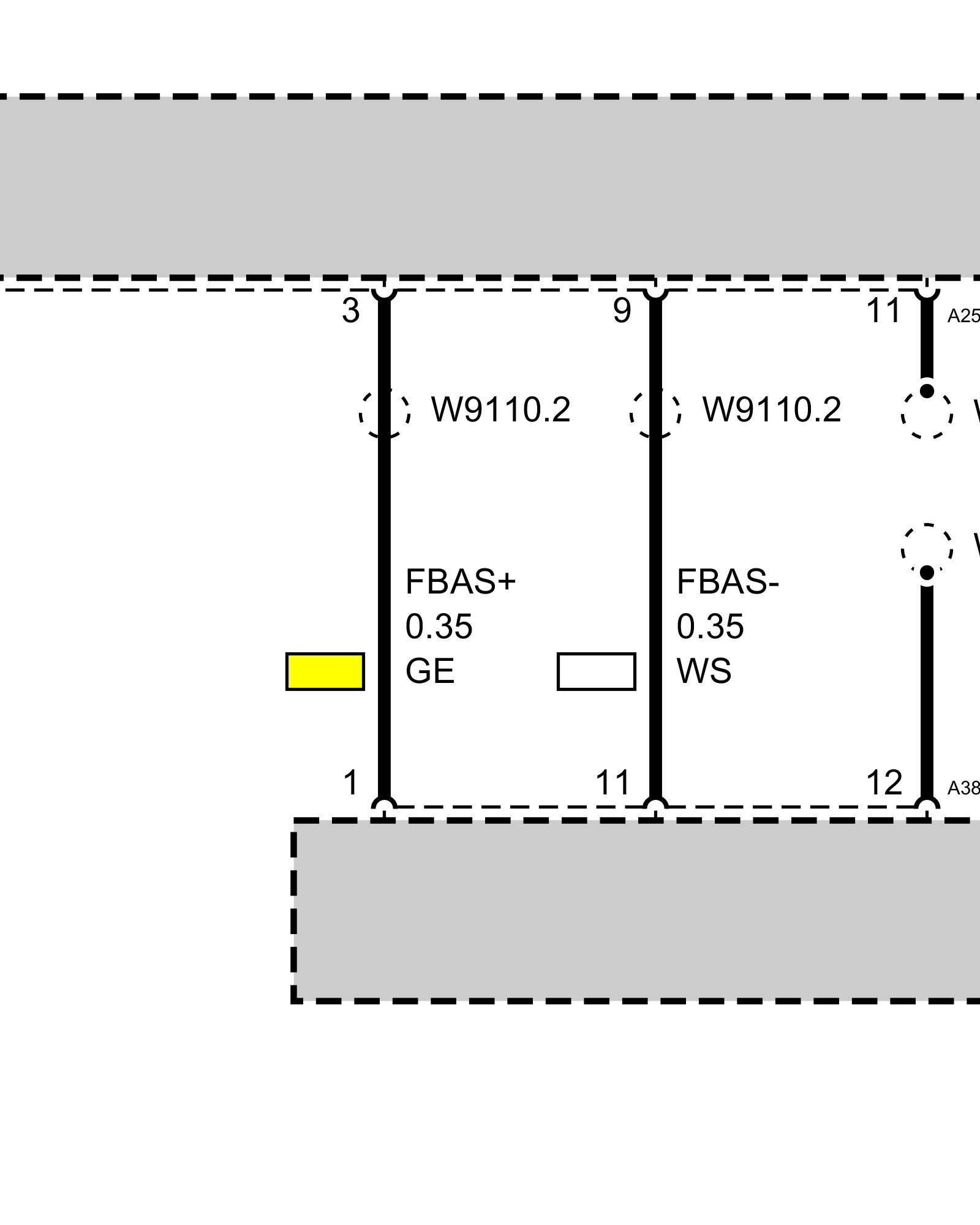

Video system analysis
Part 9:
