FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation, Telephone (MOST Ring)
>>
USB Connection, AUX-In Connection
>>
USB Connection, AUX-In Connection (Without ULF-SBX-H Interface Box High As of 09/08 Up to 03/09)
USB Connection, AUX-In Connection (Without ULF-SBX-H Interface Box High As of 09/08 Up to 03/09)

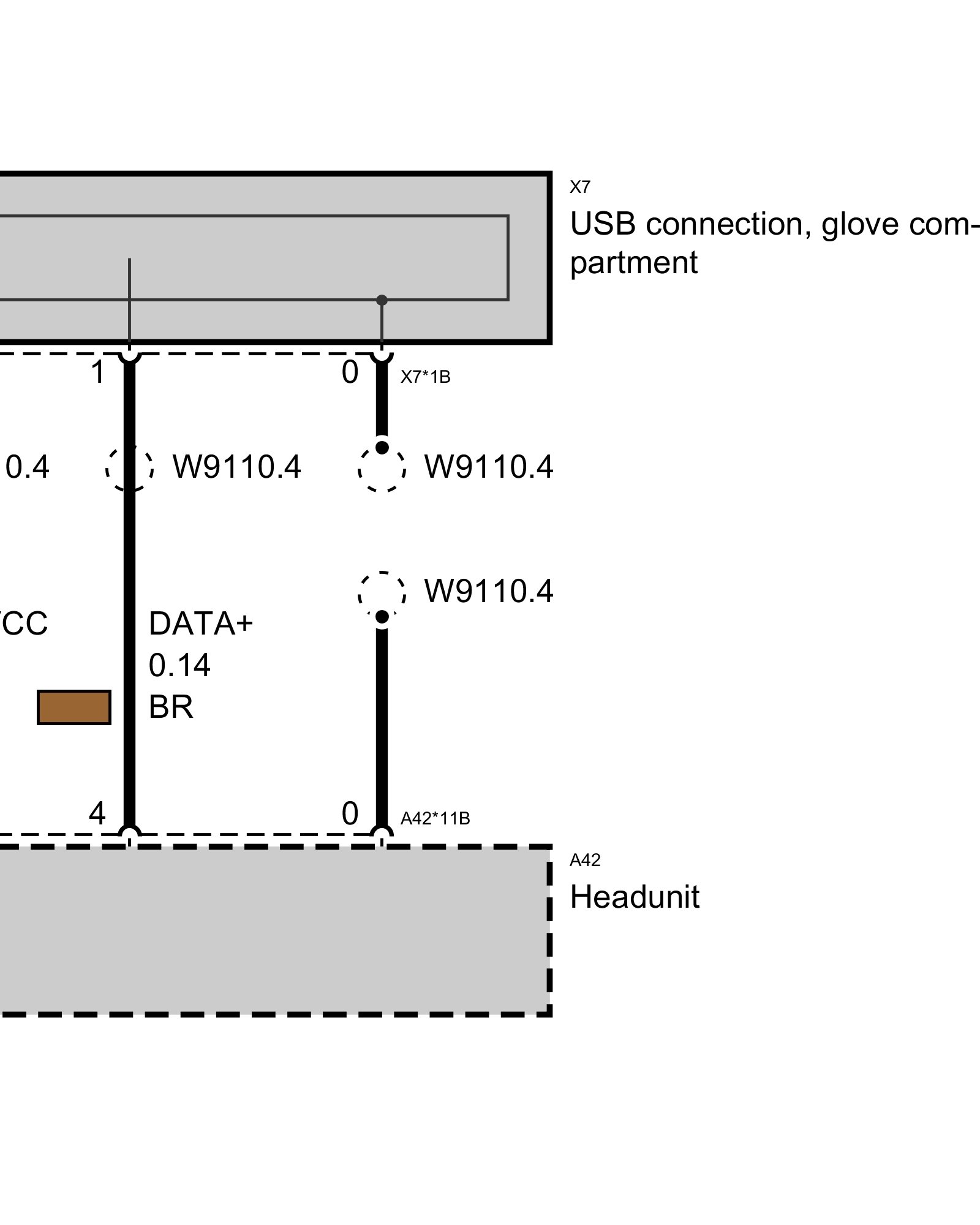

USB connection, AUX-In connection
