750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation, Telephone (MOST Ring)
>>
USB Connection, AUX-In Connection
>>

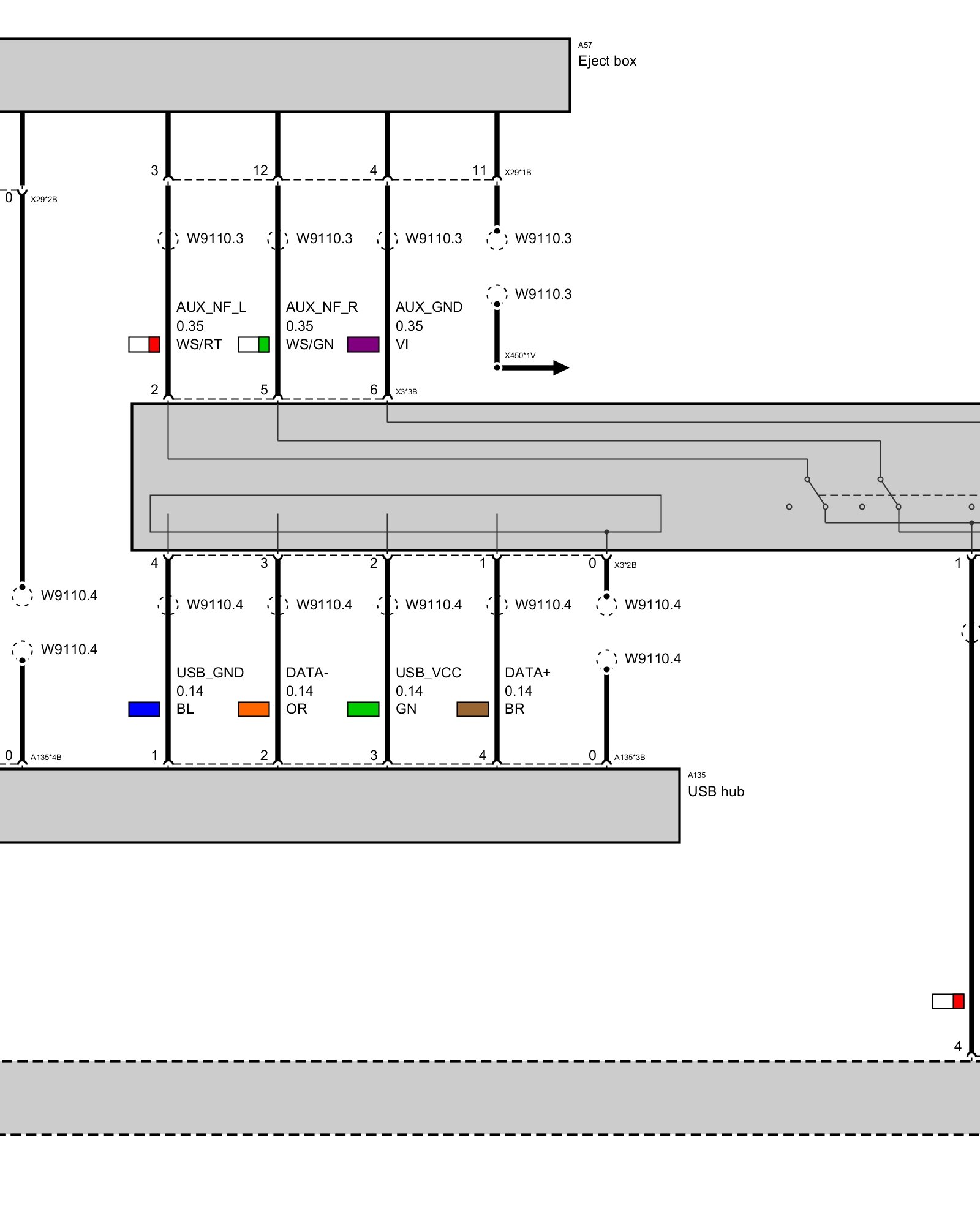

USB Connection, AUX-In Connection (ULF-SBX-H Interface Box High) - 1
USB Connection, AUX-In Connection (ULF-SBX-H Interface Box High) - 1

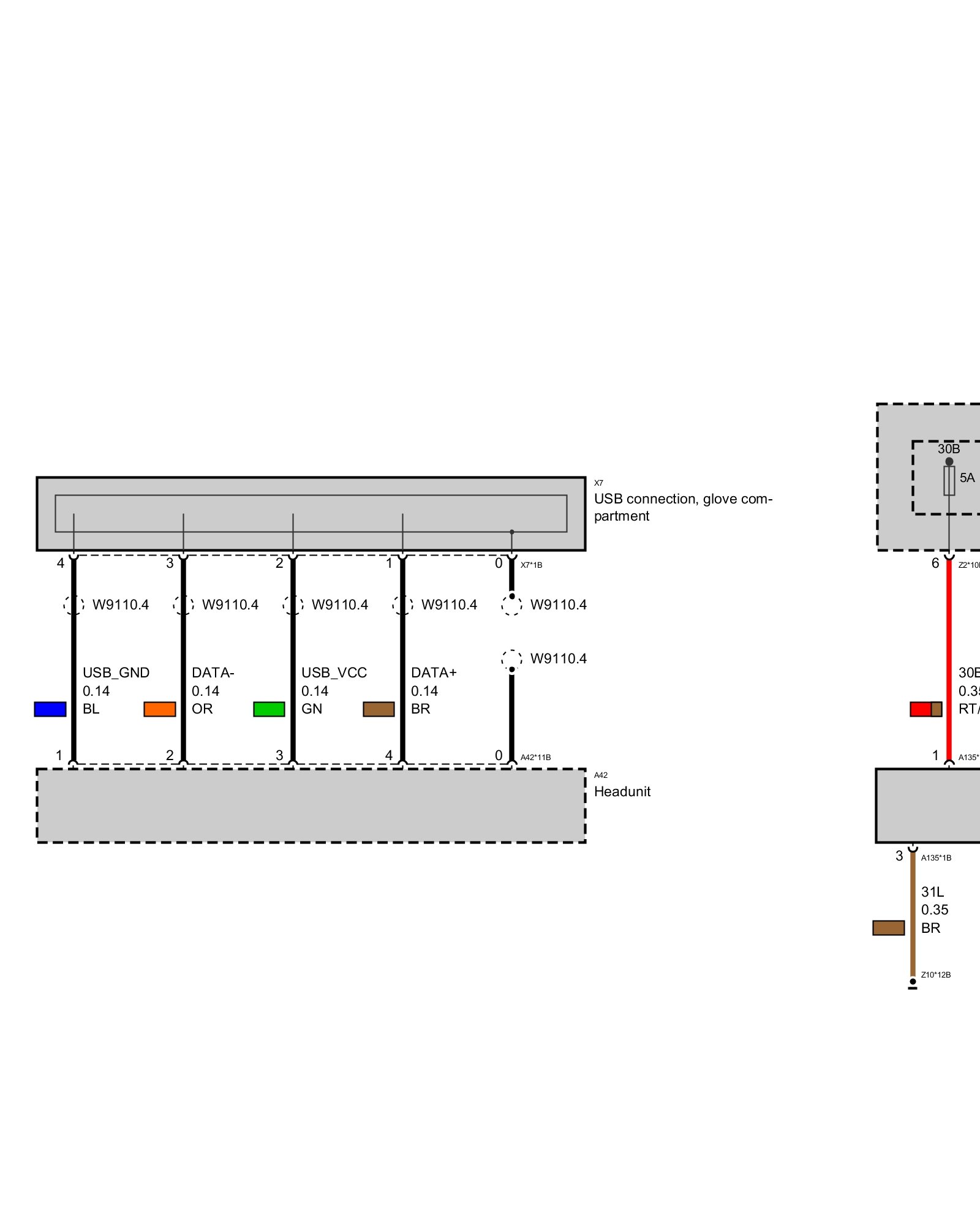

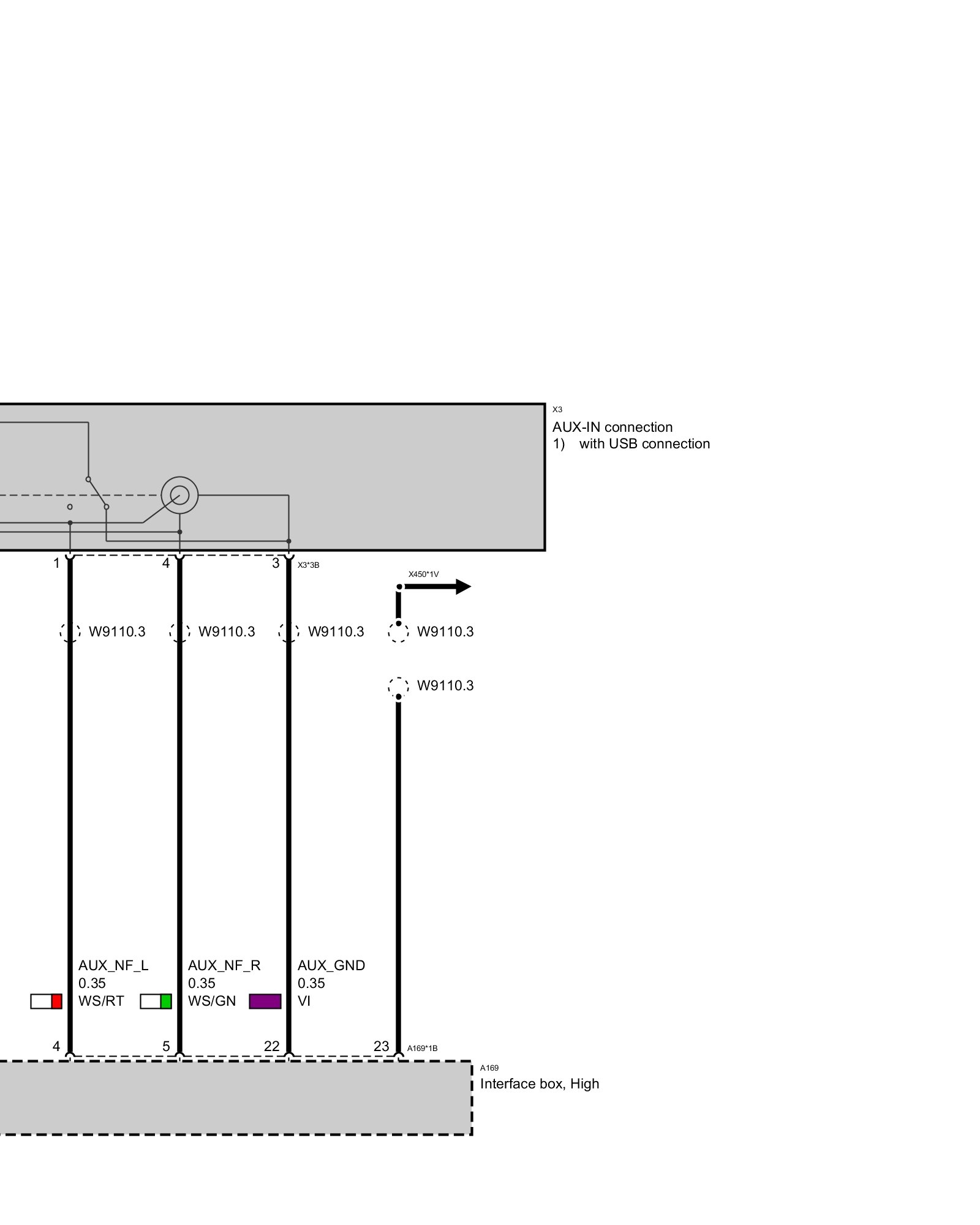

USB connection, AUX-In connection
