Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation, Telephone (MOST Ring) >> Television (VM Video Module) >> TV Reception (As of 09/08 Up to 03/09)

TV Reception (As of 09/08 Up to 03/09)

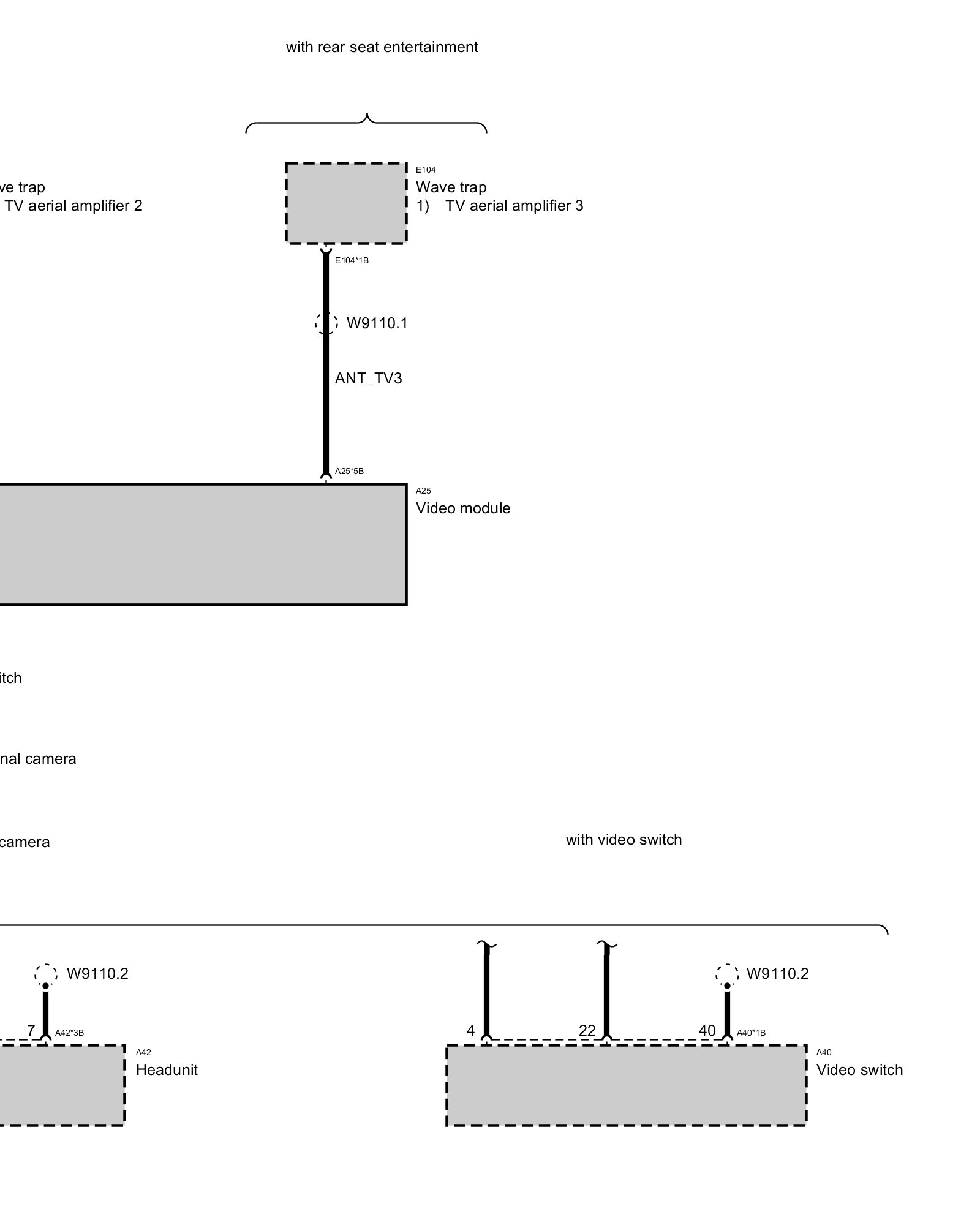

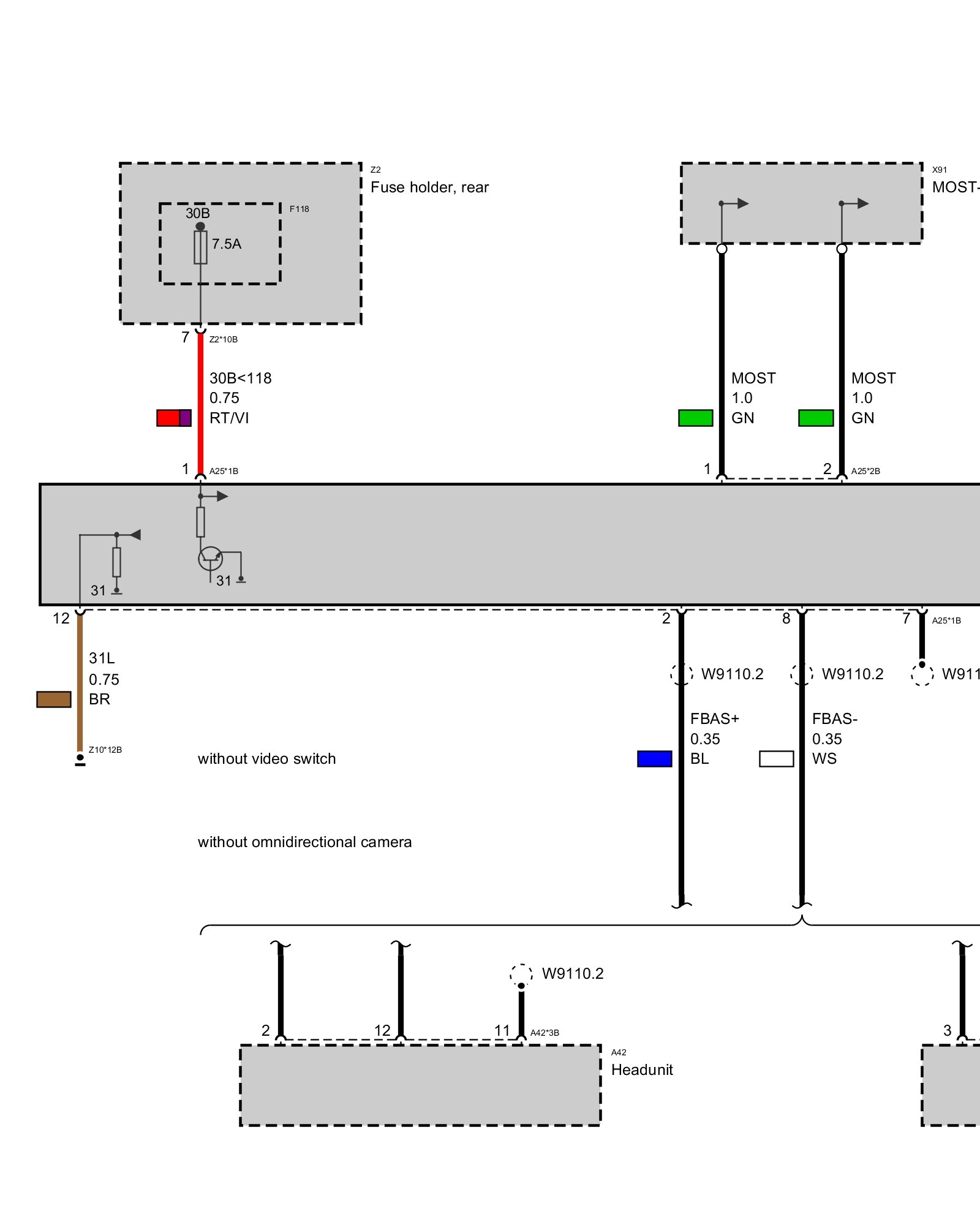

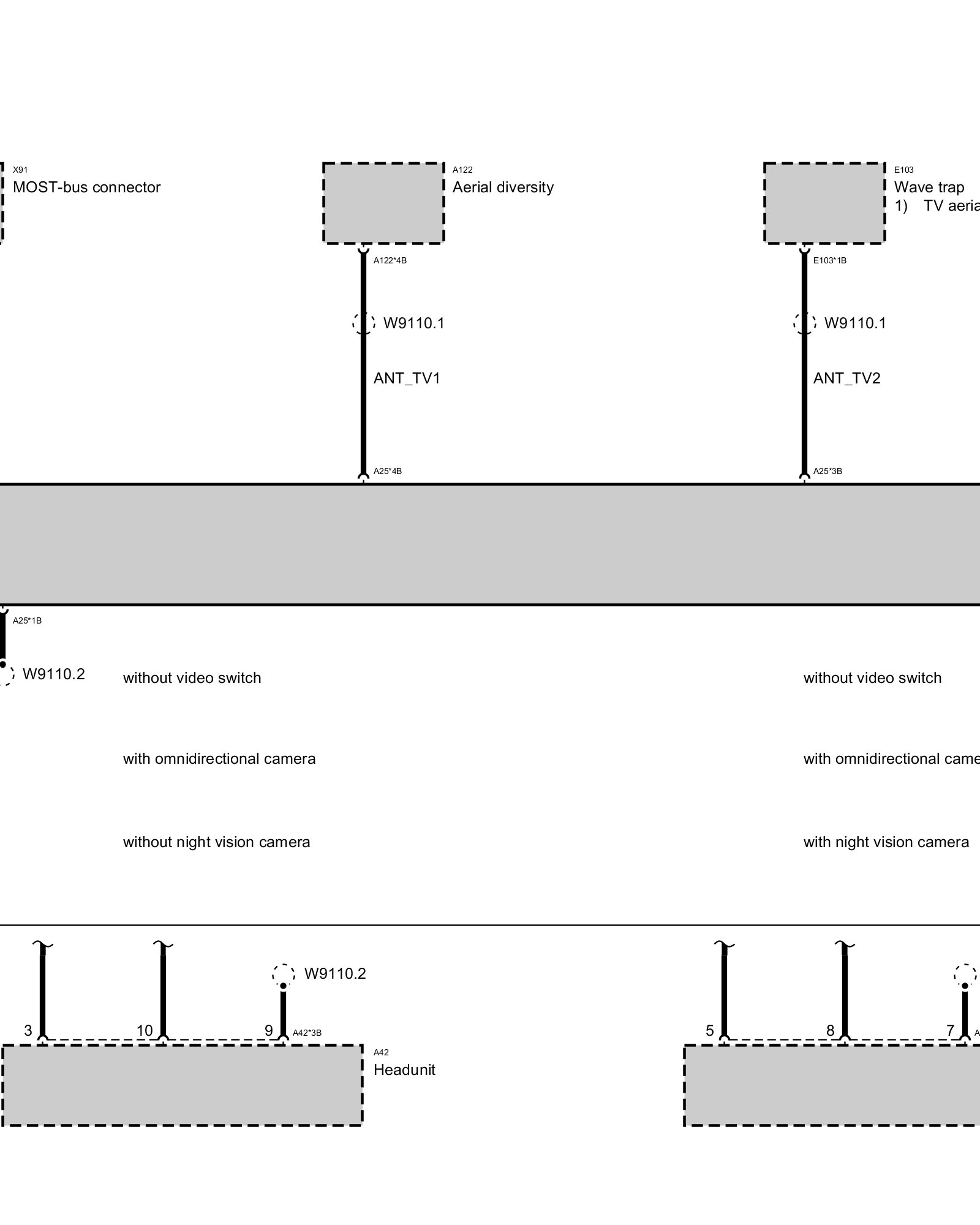

TV reception
