750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation, Telephone (MOST Ring)
>>
Television (VM Video Module)
>>
TV Reception ((RSE, High or (Without RSE, High without RSE Mid) or (RSE Mid with DVDC DVD Changer)) as of 03/09)
TV Reception ((RSE, High or (Without RSE, High without RSE Mid) or (RSE Mid with DVDC DVD Changer)) as of 03/09)

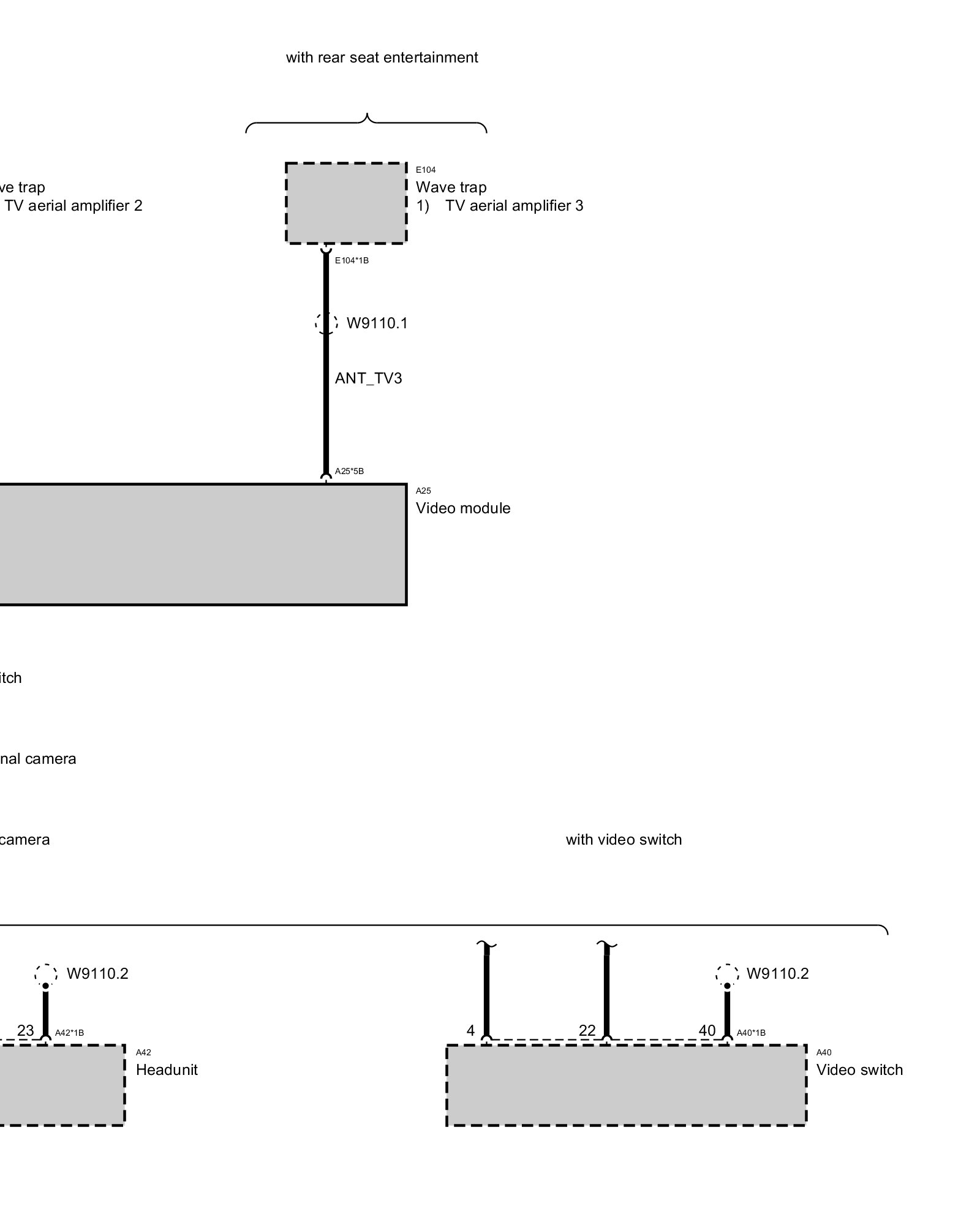

TV reception
