Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation, Telephone (MOST Ring) >> Sound Output >> HiFi System (AMPH Hi-Fi Amplifier) >> Audio Output (Left-Hand Drive)

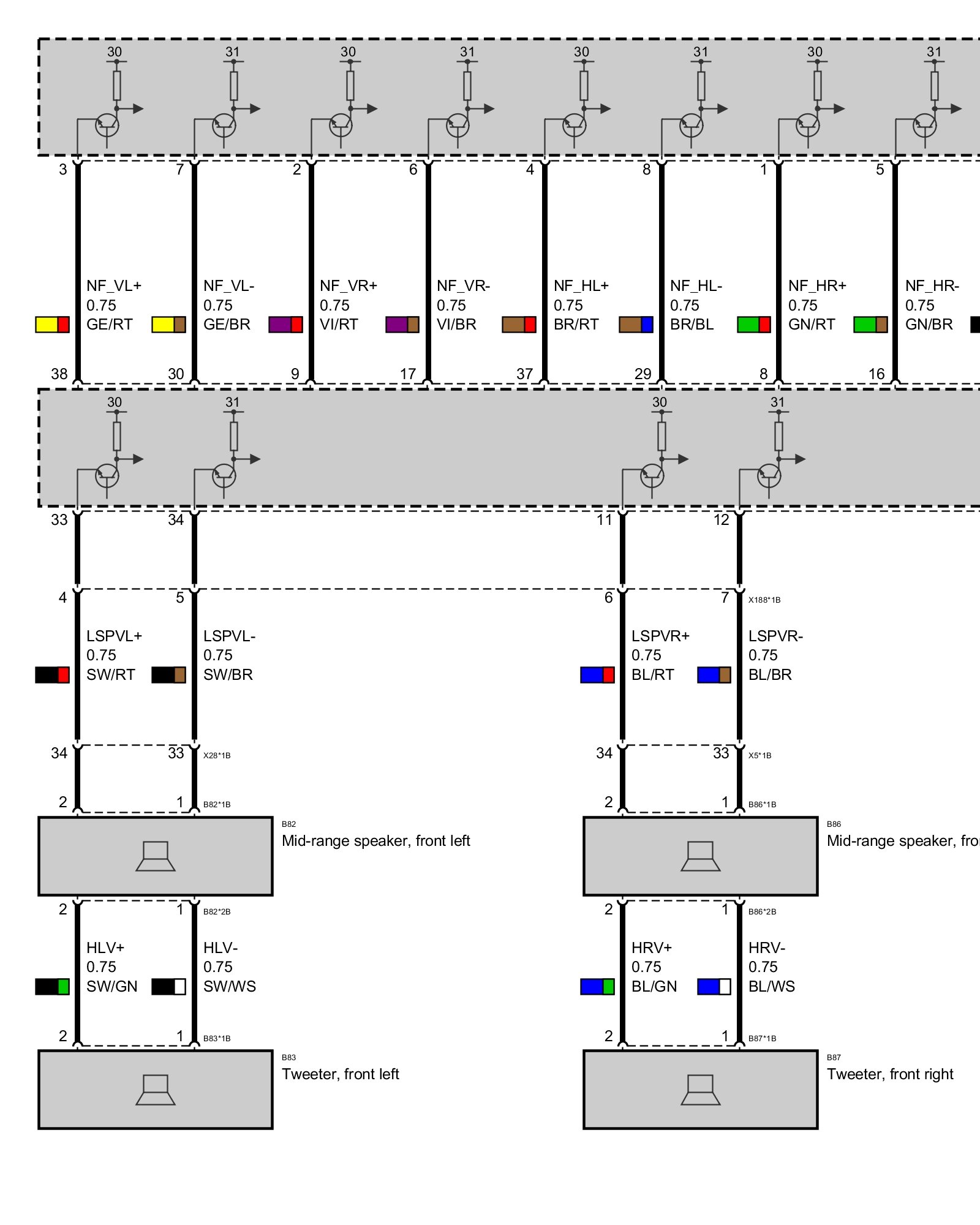

Audio Output (Left-Hand Drive)



Audio output
