Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation, Telephone (MOST Ring) >> Rear Seat Entertainment (RSE Rear-Cabin Entertainment System Mid or RSE Rear-Seat Entertainment System, High) >> Supply, RSE, Rear Seat Entertainment

Supply, RSE, Rear Seat Entertainment

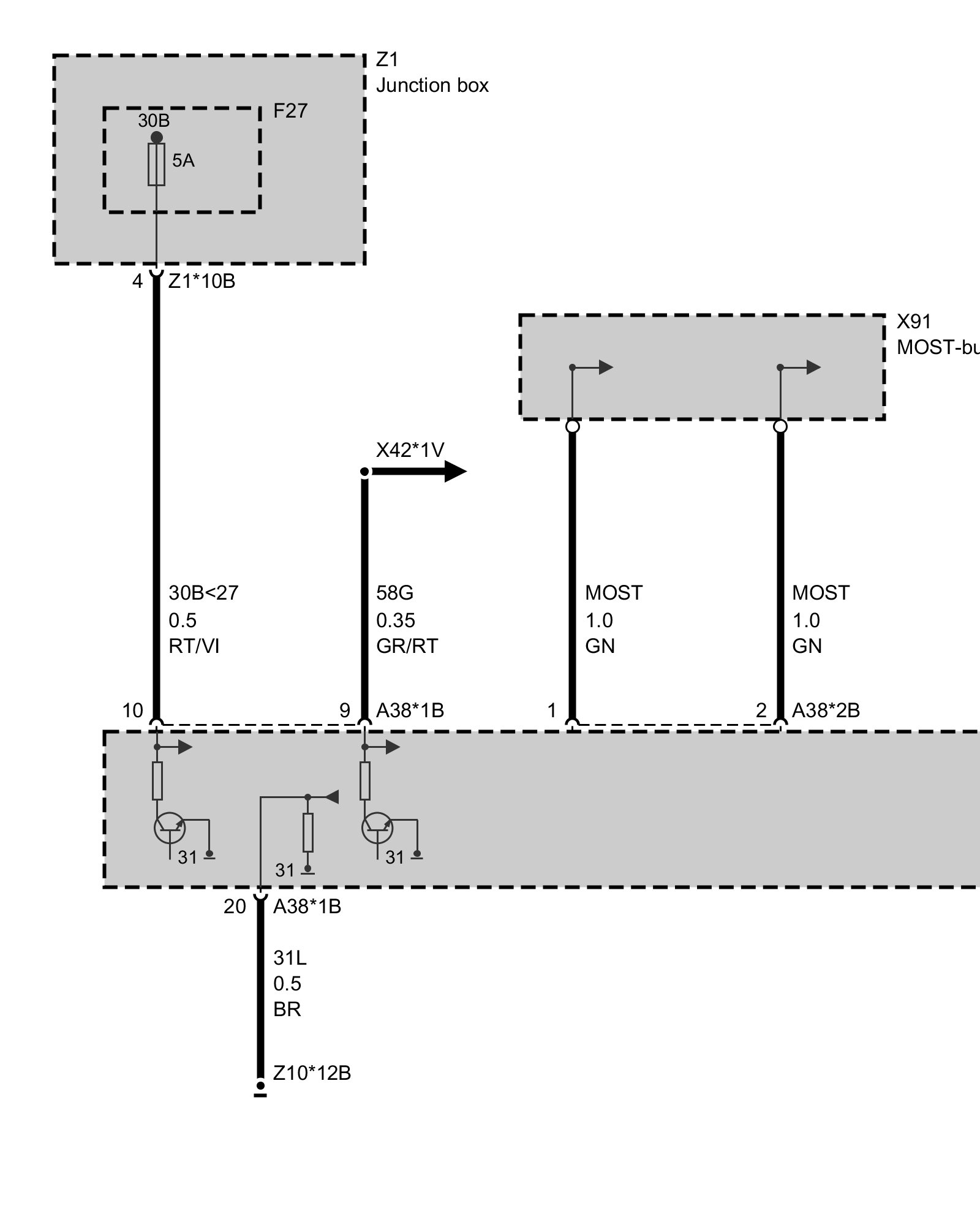

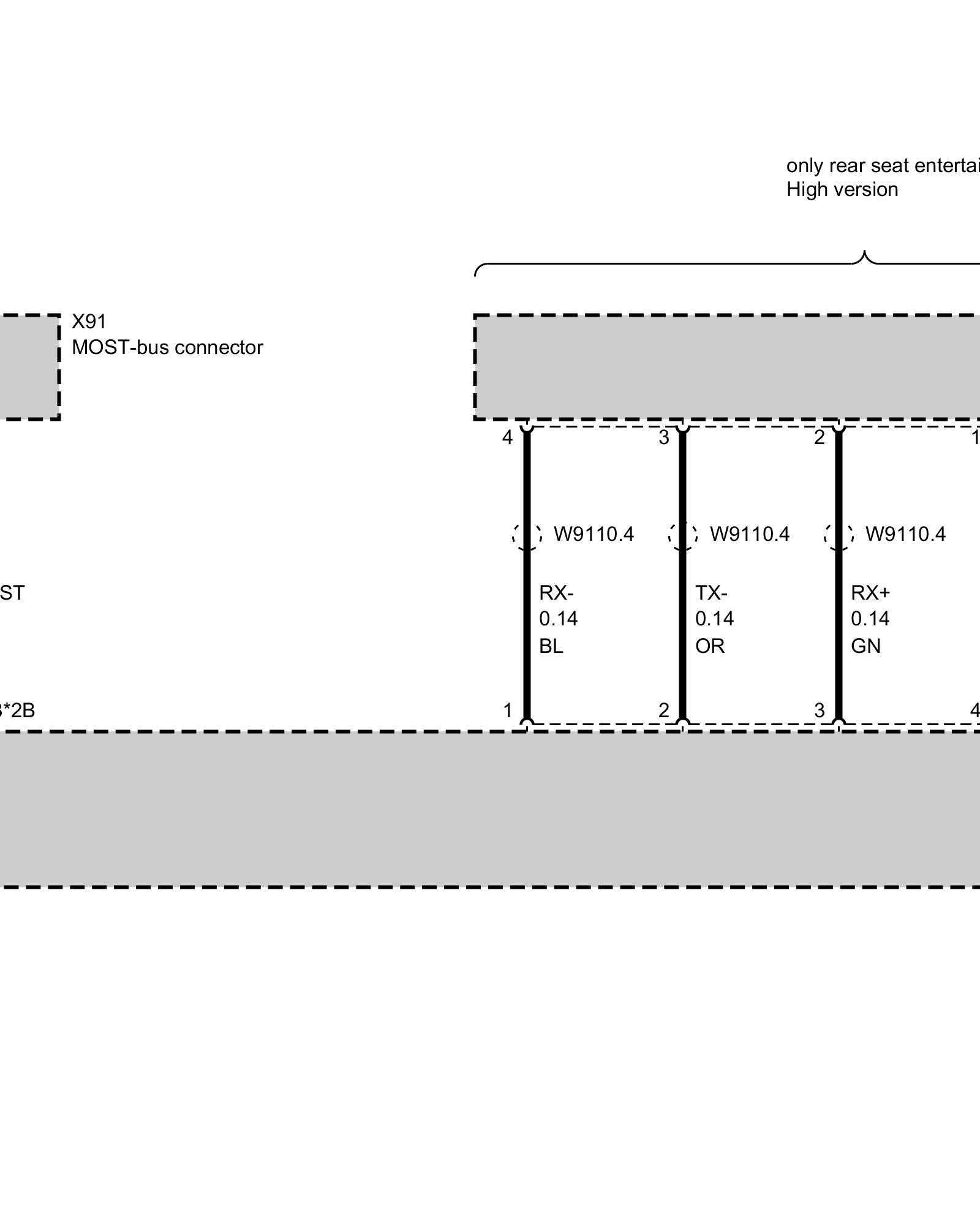

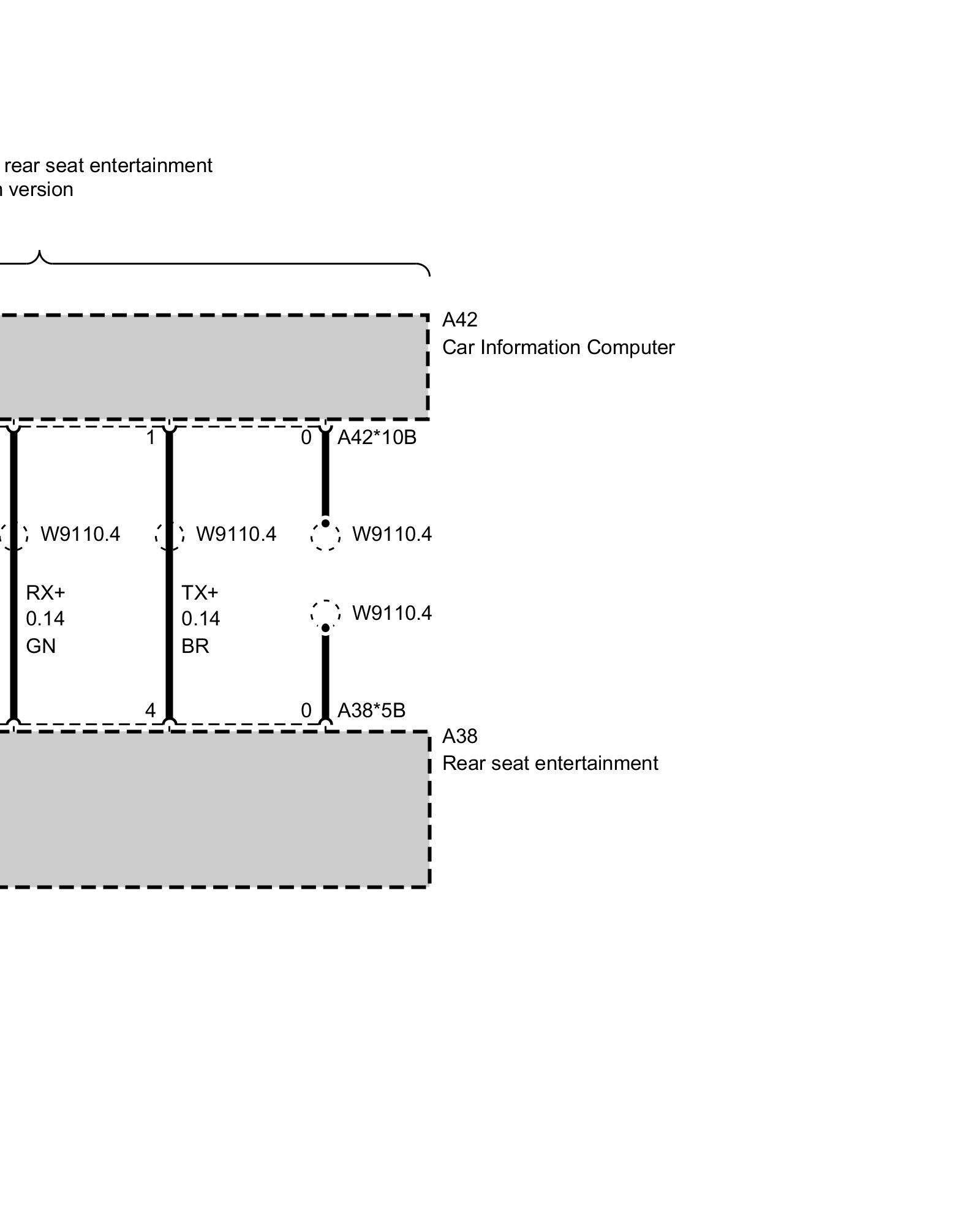

Power supply, rear seat entertainment
